Overview

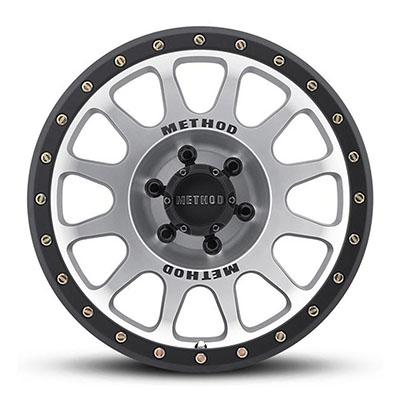

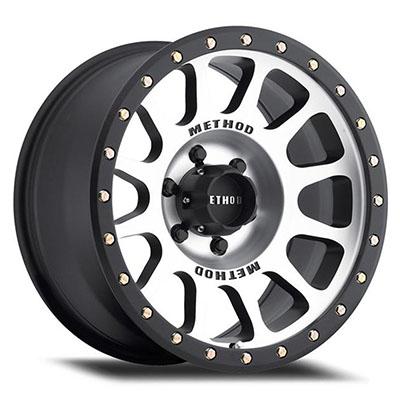

Part MRWMR30578587300 is a Method Race Wheels 305 NV in 17 x 8.5 inches, made of aluminum with a windowed style, a Machined / Matte Black finish and an 8 on 170 bolt pattern. The 131 center bore is the largest of the group’s variants with this pattern, and the wheel belongs to the MR305 NV series.
Method Race Wheels builds its wheels for the off-road racing community rather than street-first designs. Engineers use finite element analysis and field testing before a design is released, with the goal of less weight and more strength. Offset is 0 and backspacing is 4.75.
Key features
- Windowed MR305 NV styling on a 17-inch diameter
- Aluminum construction with machined and matte black finish
- 8.5-inch width on an 8 on 170 bolt pattern
- 131 center bore and 0 offset
- Brand-reported analysis and field testing
Choosing a bolt pattern for upgrades
Upgrading to a different bolt pattern is rarely a simple swap. The pattern is tied to the hub and the axle, so a wheel that fits the lug count may still not clear the brakes or sit correctly. Larger-lug patterns often come with a heavier hub design, which can limit aftermarket options and make hub-specific parts more important.
Before you commit to a new pattern, confirm the whole chain: the hub, the wheel bolt pattern, the center bore, the lug seat style and the clearance in the wheel well. Spacers, adapters and rings each solve only part of a mismatch and add their own risks. If a pattern change is planned, plan the brakes, bearings and suspension together rather than fitting wheels on their own.
- Confirm hub and axle compatibility
- Match lug seat style
- Plan brake and bearing checks together
- Avoid adapters without inspection
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR30578587300 |
| Series | MR305 NV |
| Style | Windowed |
| Finish | Machined / Matte Black |
| Construction | Aluminum |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 8 on 170 |
| Center bore | 131 |
| Offset | 0 |
| Backspacing | 4.75 |
| Fitment | Universal Fit |
Vehicle fitment
The wheel is labeled universal fit and no vehicle is attached to it. An 8 on 170 pattern narrows the hub match considerably, so the vehicle needs that bolt pattern and a compatible center bore before offset and backspacing even come into play.
Universal fit is a catalog label, not a fitment guarantee. Confirm your vehicle’s year, model and trim before ordering.
What’s included
The package covers only the wheel.
Not included: Tires, lug nuts and center caps are not confirmed for this 8 on 170 wheel.
