Select your vehicle

Method Race Wheels 701 Trail Series, 17x7.5 with 6 on 130 Bolt Pattern – Matte Black – MR70177563550

Method Race Wheels

$341.50In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 19, 2026 2:20 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels 701 Trail Series 17×7.5 wheel, part number MRWMR70177563550
  • 6 on 130 bolt pattern, 84 center bore, 50 offset, 6.2 backspacing
  • Matte Black windowed style with one-piece cast 356 aluminum construction
  • MR701 Bead Grip design for trail running at lower air pressures
  • Universal Fit, so it is not tied to one vehicle.

Description

Overview

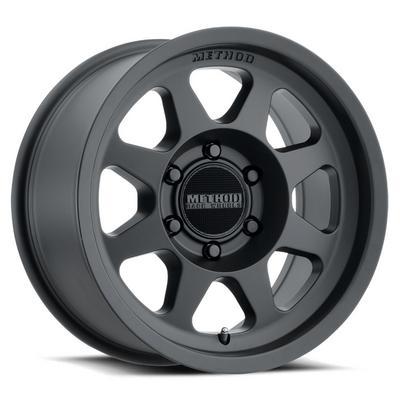

The Method Race Wheels 701 Trail Series 17×7.5 wheel in Matte Black, part number MRWMR70177563550, is a 17-inch diameter, 7.5-inch wide aluminum trail wheel with a 6 on 130 bolt pattern, an 84 center bore, a 50 offset and 6.2 backspacing.

The wheel is one-piece cast 356 aluminum with T6 heat treatment and uses Method’s MR701 Bead Grip design. Bead Grip engages the tire bead seat for added grip when running lower air pressures on rough ground. The wheel is Universal Fit, so it is not built for a particular make, model or year. Trail builders who air down will find the hub figures below useful when comparing fit.

Key features

  • One-piece cast 356 aluminum with T6 heat treatment
  • Bead Grip technology that engages the tire bead seat for grip at lower tire pressures
  • Reinforced inner lip based on Method’s race wheel design
  • Aggressive safety hump on the inner and outer bead seat to help the tire stay seated and resist de-beading
  • Engineered with finite element analysis and field testing.
  • Its design aims for lower weight with strength kept in place.
  • Windowed style in Matte Black finish

Choosing a tire width

Tire width and wheel width work together, so a wheel should be paired with a tire that suits the rim. A tire that is too wide for the rim can stress the bead area, while a narrow tire on a wide wheel can look stretched and wander at speed. Settle on the tire size first, then confirm the rim width supports it before buying the wheel or the tire.

Lower pressures change the picture, since a softer sidewall widens the footprint and can let the bead move on the seat if the tire is not seated correctly. Trail builders often pick a tire with a stiffer sidewall for rocky ground. Whatever you choose, recheck clearance at the fender and suspension after the tire goes on, because a larger overall diameter can rub at full compression.

  • Confirm the rim width supports the tire
  • Check clearance at full suspension compression
  • Recheck pressure after the first run

Specifications

Brand Method Race Wheels
Part number MRWMR70177563550
Series 701 Trail Series, MR701 Bead Grip
Wheel diameter 17 inches
Wheel width 7.5 inches
Bolt pattern 6 on 130
Center bore 84
Offset 50
Backspacing 6.2
Construction One-piece cast 356 aluminum, T6 heat treated
Style Windowed
Finish Matte Black

Vehicle fitment

This wheel is Universal Fit, so no particular vehicle applies to it. Fit depends on the 6 on 130 bolt pattern, 84 center bore, 50 offset and 6.2 backspacing matching your hub, plus clearance for brakes, suspension and tire size.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Offset and backspacing decide how far the wheel sits inside the fender, so measure brake caliper and suspension clearance before the first mount.

What’s included

Lug nuts, center caps and valve stems may need to be sourced separately.

Not included: Tires must be purchased separately to mount on this wheel.

SKU: MRWMR70177563550 Categories: ,

Questions & Answers

What is the Method Race Wheels MRWMR70177563550?

It is a Method Race Wheels 701 Trail Series wheel measuring 17 by 7.5 inches, in Matte Black with a windowed style, a 6 on 130 bolt pattern and one-piece cast 356 aluminum construction. Its series is MR701 Bead Grip.

Will this wheel fit my Jeep or truck?

No specific vehicle is tied to this wheel, which is Universal Fit. Check the 6 on 130 bolt pattern, 84 center bore, 50 offset and 6.2 backspacing against your hub and clearance before buying.

What does the Bead Grip design do?

Bead Grip engages the tire bead seat for increased grip when running lower air pressures. The reinforced inner lip and the safety hump on the bead seat help keep the tire seated.

Are lug nuts or center caps included?

Tires are not part of the wheel and must be bought separately. Check the package contents against your installation before starting, including lug nuts, center caps and valve stems.

How do I tell if a trail wheel needs replacing?

Replace a wheel that has cracks, bent lips, or bead seats that will not hold air after reseating. Check the wheel after hard impacts and inspect the inner lip for cracks, because damage there may not be obvious from the outside.
