Overview

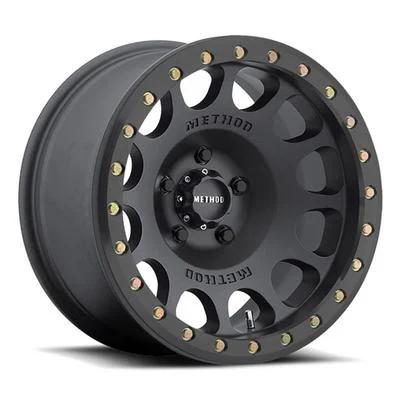

The Method Race Wheels MR105 Beadlock wheel, part number MR10579050538B, is a 17×9 matte black aluminum beadlock wheel with a 5 on 5 bolt pattern. It has an offset of -38, a 72 center bore and a 3.5 backspacing.
Method Race Wheels says its wheels are engineered for their intended use, tested with Finite Element Analysis and field tests, and developed to minimize weight and increase strength.
A 5 on 5 pattern has five wheel studs on a 5 inch bolt circle. A negative offset of -38 places the mounting surface toward the inside of the wheel, pushing the wheel outward. Backspacing is the distance from the mounting surface to the inner edge of the wheel, and the 72 center bore is the size of the hub opening. A beadlock wheel uses a clamping ring to hold the tire bead to the wheel.
Key features
- Beadlock style wheel, MR105 Beadlock series
- 17 inch diameter and 9 inch width
- 5 on 5 bolt pattern
- Offset -38, backspacing 3.5, center bore 72
- Aluminum construction
- Matte black finish
Beadlock basics for off-road use
A beadlock wheel holds the tire bead in place with a clamping ring, which helps keep the tire seated when running low pressure on rough terrain. The ring and bolts need the same care as the wheel itself, so check their tightness before each trip and after heavy use.
Offset and backspacing are the figures that decide how far the wheel sits in the fender. A wheel with a more negative offset moves the tire outward, which can change steering feel and bring the tire closer to the body, so check clearance before running wider tires.
Aluminum wheels scratch and dent more easily than steel, so inspect the bead area and spokes after rough runs. A bent or cracked wheel can lose air or fail under load, so replace damaged wheels rather than trying to straighten them.
- Check beadlock ring bolts before each trip
- Confirm brake clearance when changing offset
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MR10579050538B (alternate MRWMR10579050538B) |
| Series | MR105 Beadlock |
| Style | Beadlock |
| Wheel diameter | 17 inch |
| Wheel width | 9 inch |
| Bolt pattern | 5 on 5 |
| Offset | -38 |
| Center bore | 72 |
| Backspacing | 3.5 |
| Construction | Aluminum |
| Finish | Matte Black |
| Fit type | Universal fit |
Vehicle fitment
This is a universal fit wheel, so fit depends on bolt pattern, offset, center bore, brake clearance and tire size. The 5 on 5 bolt pattern alone does not confirm that it fits a given vehicle.
Match the bolt pattern, offset and center bore to your vehicle and check brake and suspension clearance. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Have wheels fitted and balanced by a professional shop. Check clearance to brakes, suspension and body through full steering travel. Tighten lug nuts in a star pattern to the correct torque for your vehicle, and re-check lug nut torque after the first miles. Install beadlock rings and hardware carefully, following the fitting steps for beadlock wheels.
