Overview

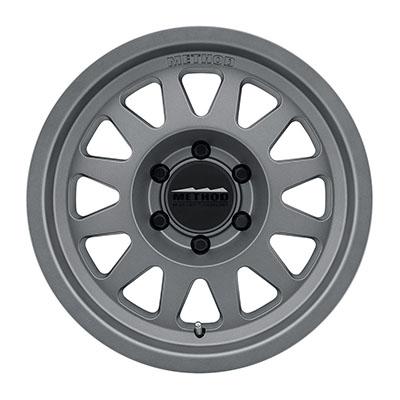

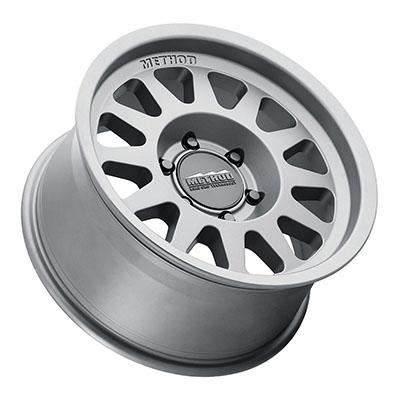

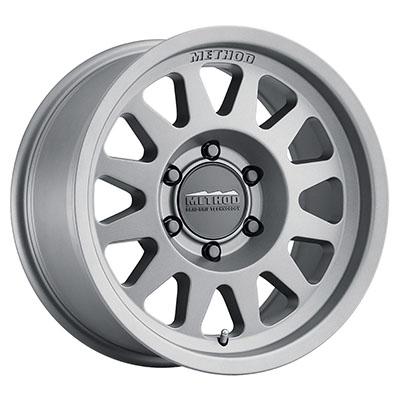

The Method Race Wheels 704 Trail Series 17×8.5 wheel in Matte Titanium, part number MRWMR70478555800, is a 17-inch, 8.5-inch wide aluminum wheel with a 5 on 5.5 bolt pattern. It is a one-piece cast wheel from Method’s MR704 Bead Grip line, built for off-road use.
The brand was founded to make wheels for the off-road racing community. Each 704 was engineered for its intended use through Finite Element Analysis and field testing. The design aims to minimize weight while increasing strength. The offset of 0, backspacing of 4.75 and center bore of 108 determine how the wheel sits against the hub. Because the wheel is universal fit, confirm the hub match before mounting.
Key features

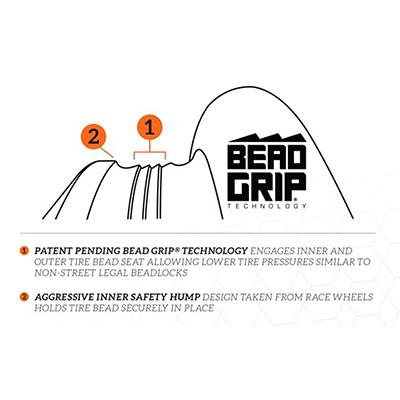

- Bead Grip technology, which Method says engages the tire bead seat for more grip at lower running pressures
- One-piece cast 356 aluminum construction with T6 heat treatment

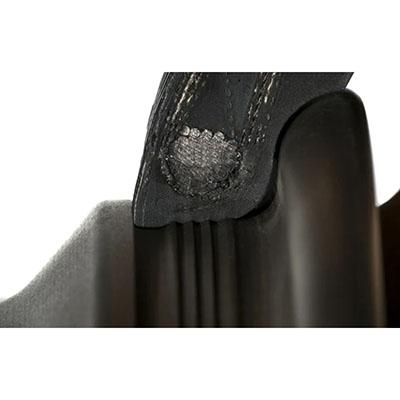

- Reinforced inner lip taken from race wheel design

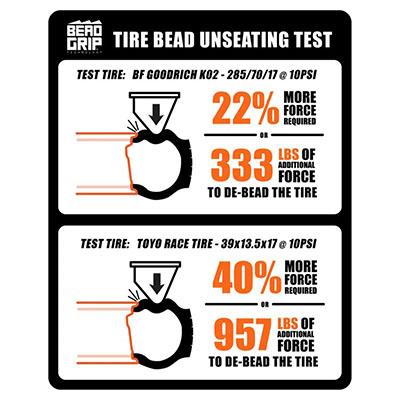

- Aggressive safety hump on the inner and outer bead seat to stabilize the tire and prevent de-beading
- Windowed style in a Matte Titanium finish
- Engineered with Finite Element Analysis and field testing
Before you mount the wheel
Mounting a tire on a wheel with a bead grip design depends on clean seats and even inflation. Wipe the bead seat and inner lip before the tire goes on, and check for corrosion or debris that can stop the tire from sealing. A shop that works with off-road wheels will usually lubricate the bead properly and inflate in controlled steps.
After the first drive, look for leaks, vibration and changes in lug torque. A wheel that loosens or wobbles points to a fit or seat problem rather than normal wear. Balance weights may need adjustment once the tire has settled, and tire service is a good time to inspect the inner lip for cracks.
- Clean bead seats before mounting
- Check for vibration after the first drive
- Inspect the inner lip during tire changes
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70478555800 |
| Series | MR704 Bead Grip (704 Trail Series) |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 5 on 5.5 |
| Center bore | 108 |
| Offset | 0 |
| Backspacing | 4.75 |
| Construction | One-piece cast 356 aluminum, T6 heat treatment |
| Finish | Matte Titanium |
| Style | Windowed |
Vehicle fitment
This wheel is universal fit and is not built for a particular vehicle. Check the 5 on 5.5 bolt pattern, 108 center bore and 17×8.5 size against your hub before buying. A center bore that does not match the hub can leave the wheel carried by the lug nuts instead of the hub, so measure before you buy.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Bead Grip is designed for lower running pressures, so keep pressures within the range the tire is rated for before airing down. Confirm the bolt pattern and center bore before mounting. A tire shop with wheel experience can mount and balance the tire if this is a first time.
What’s included
Check the package contents against your installation before starting.
