Overview

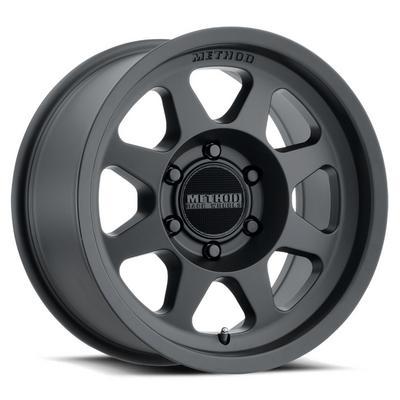

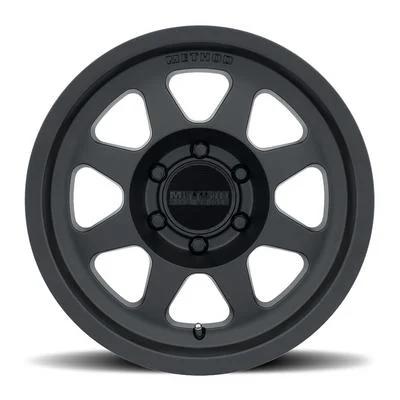

Matte Black Method Race Wheels 701 Trail Series 17×8.5, part number MRWMR70178580500, is a windowed aluminum wheel with an 8 on 6.5 bolt pattern and a 131 center bore. The one-piece cast 356 aluminum body has an offset of 0 and a backspacing of 4.75. Method labels this wheel universal fit, so start with the hub measurements rather than a vehicle name.

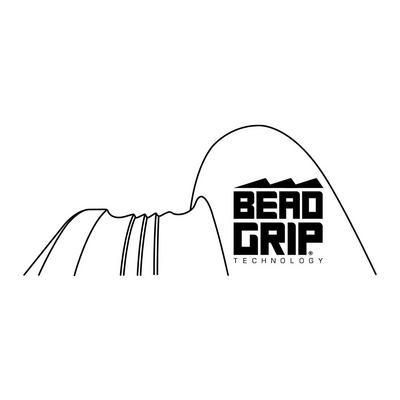

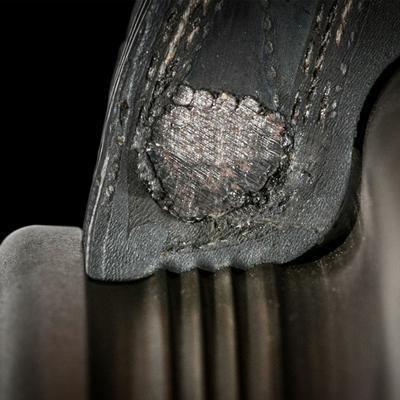

Bead Grip is the headline technology: Method’s patent pending design engages the tire bead seat to keep grip at lower air pressures. A reinforced inner lip from race wheel design and safety humps on both bead seats are part of the build and are meant to stabilize the tire and help prevent de-beading. Method describes development as finite element analysis plus field testing, aimed at reduced weight and higher strength.
Key features
- Matte Black finish on a windowed style wheel.
- One-piece cast 356 aluminum with T6 heat treatment.
- Patent pending Bead Grip design for tire grip at lower pressures.
- Reinforced inner lip borrowed from race wheel design.
- Safety humps on the inner and outer bead seat.
- Development included finite element analysis and field testing.
Bead retention and pressure
Bead retention is a common concern on trail setups, because a tire that rolls off the rim can leave you stranded. Designs that grip the bead seat, combined with humps on both sides, aim to keep the tire stable when pressure drops. These features do the most work when the tire is seated cleanly and the rim is free of debris.
Choosing a pressure for your terrain is part of the setup. Softer pressures give more contact on rocks and sand, but they also put more strain on the bead. Start with a moderate drop, check the bead after each trail section, and adjust only after you know how the tire responds.
Upgrades that often go with a wheel swap include a new set of lug nuts, a tire pressure gauge and a bead seating tool for airing back up on the trail. Check the wheel and tire after each outing, looking for uneven wear on the bead edge and for scratches around the seat.
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70178580500 |
| Series | 701 Trail Series (MR701 Bead Grip) |
| Wheel diameter | 17 Inches |
| Wheel width | 8.5 Inches |
| Bolt pattern | 8 on 6.5 |
| Center bore | 131 |
| Offset | 0 |
| Backspacing | 4.75 |
| Construction | One-piece cast 356 aluminum, T6 heat treatment |
| Style | Windowed |
| Finish | Matte Black |
Vehicle fitment
The specifications name no vehicle and give no years or chassis codes. Method’s universal fit label only means the wheel is not tied to one model, so match the 8 on 6.5 bolt pattern and 131 center bore to your hub.
Compare the bolt pattern and center bore with your vehicle’s hub specifications. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm the bolt pattern and center bore against the hub, then test clearance with the planned tire. Bead Grip suits lower tire pressures, so pick a pressure for your terrain rather than a fixed figure.
What’s included
One Matte Black 701 Trail Series wheel.
Not included: You still need a tire along with lug nuts, valve stems and center caps.
