Overview

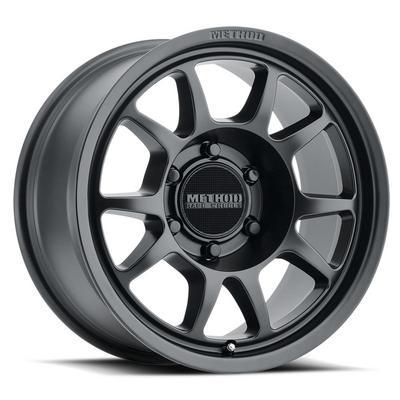

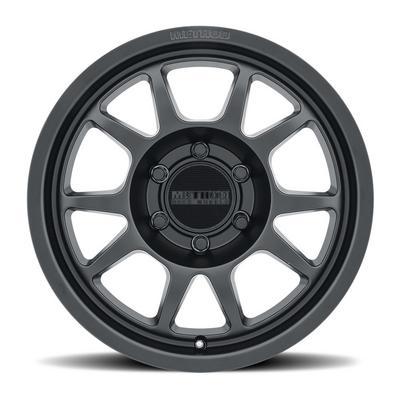

The Method Race Wheels 702 Series 16×8 wheel with a 6 on 5.5 bolt pattern and Matte Black finish, part number MRWMR70268060500, is a 16-inch aluminum spoke wheel from the MR702 Bead Grip series. It suits buyers who want a 16 by 8 off-road wheel with a 106 center bore, and hub match should be checked before choosing it.
Method Race Wheels builds wheels for the off-road racing community. Each design is analyzed with finite element analysis and field tested, with the aim of reducing weight while keeping strength. Offset 0 and backspacing 4.5 set the mounting face and inner clearance, so compare those numbers with your current wheels.
Key features
- Aluminum spoke design in Matte Black
- MR702 Bead Grip series construction
- 16 inch diameter and 8 inch width
- 6 on 5.5 bolt pattern with 106 center bore
- Offset 0 and backspacing 4.5
- Development included finite element analysis and field testing aimed at lower weight and steady strength.
Spoke wheels and brake clearance
Spoke wheels leave more open space than solid designs, which lets air reach the brakes but also lets mud and grit build up in the gaps. Rinse the spokes and the back of the wheel after off-road use so grime does not sit against the hub face. Check the brake calipers through the openings when you mount the wheel.
Offset and backspacing decide how the wheel sits against the brake and suspension parts. A small change in either can bring the tire closer to a caliper or fender edge, so measure the clearance at full steering lock and at full suspension travel. Recheck clearance after any lift, tire upgrade or change in wheel size.
Good care extends the life of a spoke wheel. Use mild soap and a soft brush, and avoid harsh solvents that can dull the Matte Black finish. Inspect the spokes and their joints after rough trails, looking for cracks, bends or loose areas, and tighten lug nuts in a star pattern after each mounting.
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70268060500 |
| Series | MR702 Bead Grip |
| Wheel diameter | 16 inches |
| Wheel width | 8 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 106 |
| Offset | 0 |
| Backspacing | 4.5 |
| Style | Spoke |
| Finish | Matte Black |
| Construction | Aluminum |
Vehicle fitment
No vehicle is named for this wheel, and it carries a Universal Fit label. The 6 on 5.5 pattern, 106 center bore, 0 offset and 4.5 backspacing must be matched to your hub and brake setup. Wheels sharing a bolt pattern can still rub on brakes, suspension or fender edges depending on tire size.
Buyers comparing this 6 on 5.5 pattern with other offsets should check each part number separately. Confirm your vehicle’s year, model and trim before ordering.
What’s included
This item is the wheel only. Lug nuts, center caps and tires are sold separately.
Not included: Tires, lug nuts and center caps need to be sourced separately.
