Overview

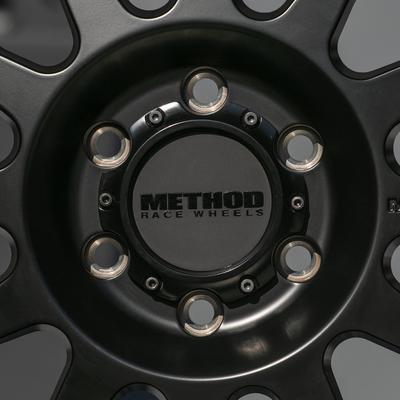

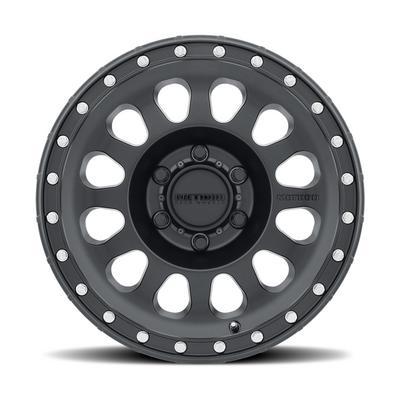

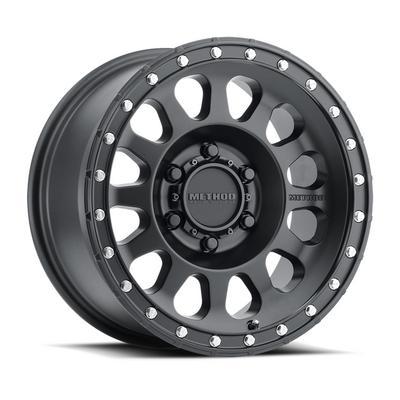

The Method Race Wheels MR315 17×9 in Matte Black, part number MRWMR31579060512N, is an aluminum wheel with a 6 on 5.5 bolt pattern, a 106 center bore, -12 offset and 4.5 backspacing. It is 9 inches wide and 17 inches in diameter.
This wheel is the 6 on 5.5 version of the MR315 17×9 line. The brand says its designs are checked with finite element analysis and field testing, and that the goal is a wheel that weighs less while staying strong. The matte black finish is the visual point of difference. Because the bolt pattern and center bore are the figures that decide whether a wheel can be mounted at all, those should be checked first.
Key features
- Matte black finish on aluminum construction
- Windowed MR315 style
- 6 on 5.5 bolt pattern
- Center bore of 106
- Offset -12 and backspacing 4.5
Hub-centric rings and centering
A hub-centric ring fills the gap between a wheel’s center bore and a larger hub, so the load rests on the hub rather than the lug studs. Rings are sized to the difference between bore and hub diameter, so measure the hub before ordering. A snug ring keeps the wheel centered and reduces vibration at speed.
Good hub fit is only one part of mounting. Check that lug studs are the correct length for the wheel thickness, that the seats match the lug nuts, and that the wheel sits flat against the hub. Wheels with a larger center bore than the hub are common in aftermarket sets, so rings are worth checking. Re-torque after the first few drives, and inspect the studs and rings during regular service.
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR31579060512N |
| Series | MR315 |
| Style | Windowed |
| Finish | Matte Black |
| Construction | Aluminum |
| Wheel diameter | 17 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 106 |
| Offset | -12 |
| Backspacing | 4.5 |
Vehicle fitment
Fit depends on the bolt pattern and center bore matching the hub. Those two figures decide whether the wheel can be mounted at all.
Compare the 6 on 5.5 bolt pattern and center bore 106 with the wheel specifications for your truck or SUV before going further.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A hub smaller than the 106 center bore needs hub-centric rings. Lug nuts or studs must match the 6-lug pattern, and should be tightened to your vehicle’s torque specification.
What’s included
Confirm lug nuts and caps against your installation before starting.
Not included: Tires.
