Overview

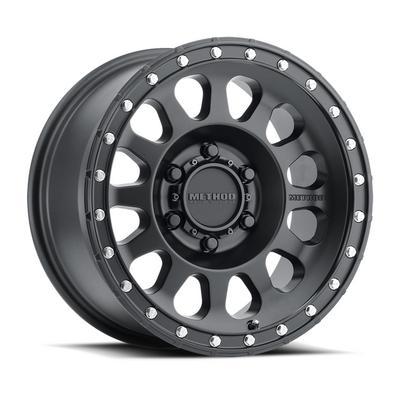

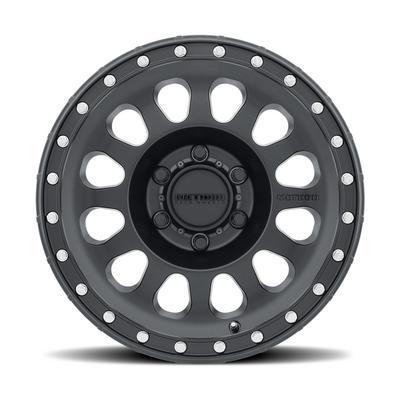

The Method Race Wheels MR315 17×8.5 in Matte Black, part number MRWMR31578516500, is a 17-inch aluminum wheel built on a 6 on 135 bolt pattern. It uses a windowed style and carries a Universal Fit designation, so it is not presented for one specific vehicle.
Method Race Wheels makes this MR315 for off-road use. The design was tested with finite element analysis and in the field, with a goal of lower weight and greater strength. The 87 center bore, offset and backspacing should be matched to your own hub before buying.
Key features
- 17-inch diameter with an 8.5-inch width

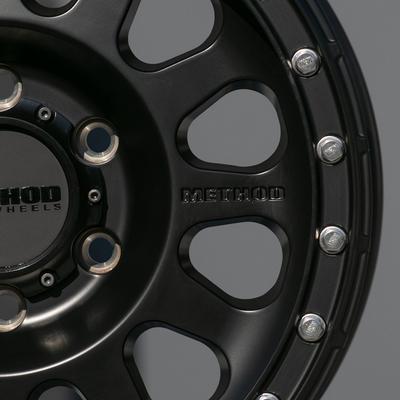

- Windowed style in a matte black finish
- Aluminum construction for the MR315 series

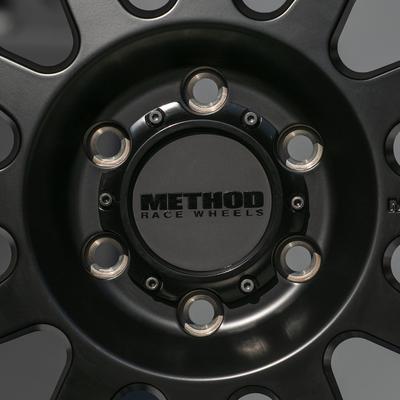

- 6 on 135 bolt pattern
- Center bore of 87
- Offset 0 and backspacing 4.75
Cleaning windowed wheels
Windowed wheels have open cutouts that expose the back of the wheel and the brake area. Road grime and brake dust collect in those openings and on the inner barrel. Use a soft brush and a mild wheel cleaner, then rinse from the inside out so dirt does not carry into the center. Avoid high-pressure washing directly into the bearing seal area.
Inspect the window edges after off-road trips. Look for cracks that start at the corners of the openings, where stress concentrates, and check the lip for flat spots. Dirt that remains in the openings can hide early corrosion, so clean them before each season. A quick check at each tire change catches problems early. Cleaning also makes it easier to spot scrapes on the finish.
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR31578516500 |
| Series | MR315 |
| Diameter | 17 Inches |
| Width | 8.5 Inches |
| Bolt pattern | 6 on 135 |
| Center bore | 87 |
| Offset | 0 |
| Backspacing | 4.75 |
| Style | Windowed |
| Finish | Matte Black |
| Construction | Aluminum |
| Fitment | Universal Fit |
Vehicle fitment
This wheel is designated Universal Fit, and no make, model or year is attached to it, so it is not confirmed for any particular vehicle.
Fit depends on the 6 on 135 pattern, the 87 center bore, offset and backspacing rather than on a model name. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Measure your hub’s pilot diameter against the 87 center bore before mounting. A hub that is smaller than the bore typically needs a hub-centric ring so the wheel sits centered.
What’s included
Tires, lug nuts and center caps are a separate purchase.
