Overview

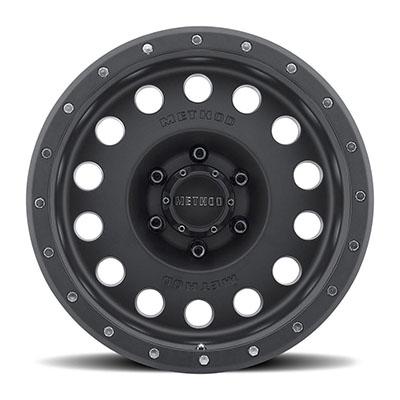

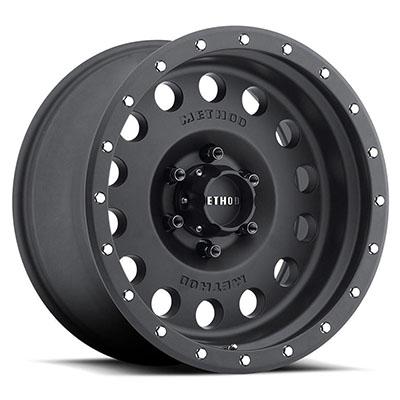

The Method Race Wheels 307 Hole 17×8.5 in Matte Black, part number MRWMR30778550500, is an aluminum wheel with a 5 on 5 bolt pattern and a 94 center bore. It sits in Method’s MR307 Hole series, which uses a hole-style face and is designed around off-road racing.
The offset is 0 and the backspacing is 4.75. The wheel is engineered for its intended use and checked with finite element analysis and field testing, with the aim of reducing weight while adding strength.
Key features
- Hole-style face in Matte Black aluminum
- 17 inch diameter and 8.5 inch width
- 5 on 5 bolt pattern with a 94 center bore
- Zero offset and 4.75 backspacing
- Checked with finite element analysis and field testing during development
- Designed for the off-road racing community.
Off-road use and wear
Hole-style faces let mud and water clear quickly, but they also collect grit in the openings. Rinsing the wheel after a run keeps debris from packing into the holes and wearing the finish. The spoke bases and the bead seat see the most stress off-road, so those areas deserve a close look after rough terrain.
A racing wheel is usually paired with aggressive tires and a mounting setup that suits the terrain. Inspect the bead seal and valve stem after each run, and watch for air loss, which can point to a damaged bead or a bent edge. Any visible crack should be treated as a reason to retire the wheel.
- Rinse grit from the holes after runs
- Check spoke bases for cracks
- Inspect the bead seat for damage
- Watch for slow air loss
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR30778550500 |
| Series | MR307 Hole |
| Style | Holes |
| Finish | Matte Black |
| Construction | Aluminum |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 5 on 5 |
| Center bore | 94 |
| Offset | 0 |
| Backspacing | 4.75 |
Vehicle fitment
No specific vehicle is named for this 307 Hole wheel. Use the 5 on 5 pattern, 94 center bore, zero offset and 4.75 backspacing as the checkpoints, and compare them with your vehicle’s specifications. A universal fit wheel is not confirmed for any particular truck or Jeep.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The 94 center bore has to match the hub or be bridged with hub-centric rings. Because the offset is zero, the mounting face sits at the wheel’s centerline, so check tire clearance once the wheel is mounted.
What’s included
The wheel only. No center cap or hardware comes with it.
Not included: Tires are not included with this wheel.
