Mag-Hytec GM 10.5 Inch 14 Bolt High Capacity Cover – GM14-10.5A

Mag-Hytec

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear GM 10.5 inch 14 bolt axles
  • Finned aircraft aluminum housing
  • Holds 2.5 extra quarts
  • Overall height of 4 1/8 inches

Description

Overview

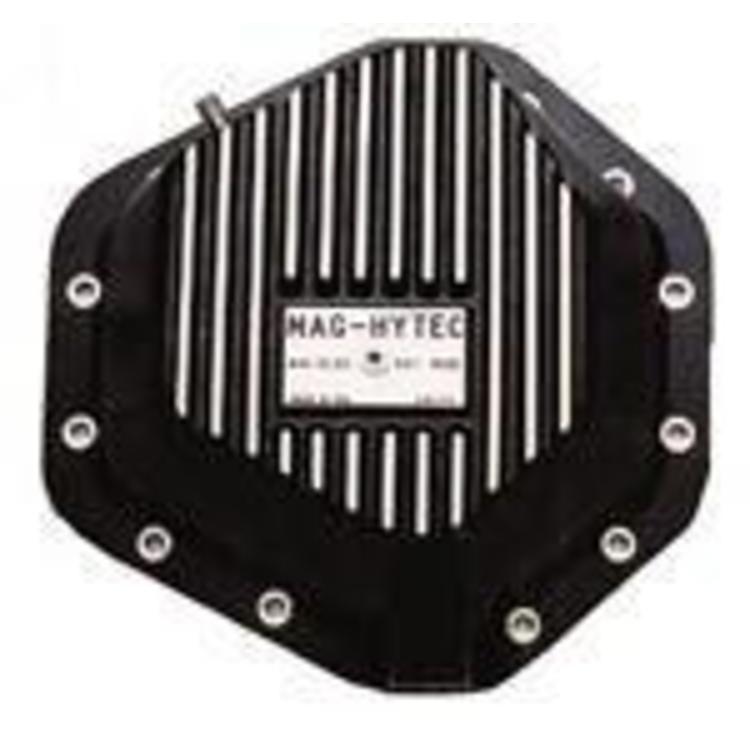

The Mag-Hytec GM 10.5 Inch 14 Bolt High Capacity Cover (part GM14-10.5) is a black finned aluminum rear differential cover for GM 10.5 inch 14 bolt rear axles, with 2.5 extra quarts of capacity.

The cover is heavy duty, built to add lubricant capacity and cooling for hard-working vehicles. Its black powder coat aluminum housing stands 4 1/8 inches overall, and routine maintenance can be done through the dipstick without taking the cover off.

A 14 bolt GM axle has a substantial housing, and this cover’s 4 1/8 inch height gives the oil more room than a shallower cover would. The extra 2.5 quarts add capacity, and the finned housing helps move heat to the air. The magnetic dipstick and drain plug catch particles, so inspect them whenever you drain the oil.

Key features

  • Finned aircraft aluminum housing
  • Holds 2.5 extra quarts
  • Overall height of 4 1/8 inches
  • Black powder coat finish
  • Dipstick with magnetic insert

Gear oil and the drain plug

A 14 bolt rear is a common axle for trucks and SUVs, and a higher capacity cover keeps more oil in circulation for those heavier duties. Gear oil works hardest on the ring and pinion, so the lubricant’s condition tells you a lot about the axle. Clear, lightly colored oil is a good sign, while dark or gritty oil should prompt a closer look.

The drain plug and dipstick magnets collect metal, which helps you spot early wear. Check them each time you drain the oil, and clean them before refilling. A large amount of metal, or chunks, points to wear inside the axle that should be inspected before more driving.

  • Check the dipstick magnet at every oil change.
  • Look for dark or gritty oil.
  • Clean the drain plug before refilling.

Specifications

Brand Mag-Hytec
Part number GM14-10.5
UPC 70000398453
Material Aluminum
Finish Black powder coat
Axle location Rear
Axle type GM 14 bolt 10.5 inch
Oil capacity 2.5 extra quarts
Overall height 4 1/8 inches
Dipstick Magnetic insert

Vehicle fitment

It fits GM 10.5 inch 14 bolt rear axles, so the axle size and bolt count decide fit.

Confirm the axle size and bolt count on your housing before ordering.

Installation notes

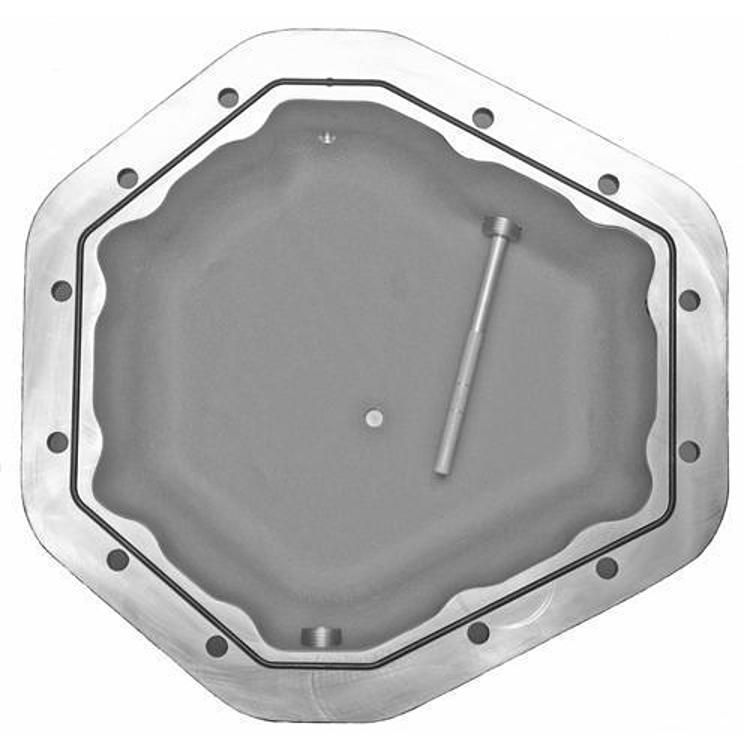

The cover seals on its O-rings, so a gasket or sealant is usually not needed.

What’s included

The cover with its magnetic-insert dipstick, drain plug, O-rings and hardware.

Not included: Gear oil.

SKU: MAGGM14-10.5 Category:

Specification

Shipping weight 12.10 lbs
Package dimensions 14.00 × 13.80 × 5.00 in
brands

Questions & Answers

Is the cover for a GM 14 bolt rear?

Yes. It is made for GM 10.5 inch 14 bolt rear axles. Confirm the axle size and bolt count on your housing before ordering.

How much oil does it hold?

It adds 2.5 extra quarts over the standard capacity. The added volume gives the gear oil more room to shed heat.

How tall is it?

The overall height is 4 1/8 inches. That is the figure Mag-Hytec gives for the cover, so allow for it when you compare covers.

Does it have a magnetic dipstick?

Yes. The dipstick has a magnetic insert, which helps catch metal particles when you check the oil. Routine checks do not require removing the cover.

How often should I check the oil on a 14 bolt rear?

Check it at each service and after any long tow or off-road trip. Under heavy loads the oil breaks down faster, so a regular check helps catch low levels and early metal wear.
