Overview

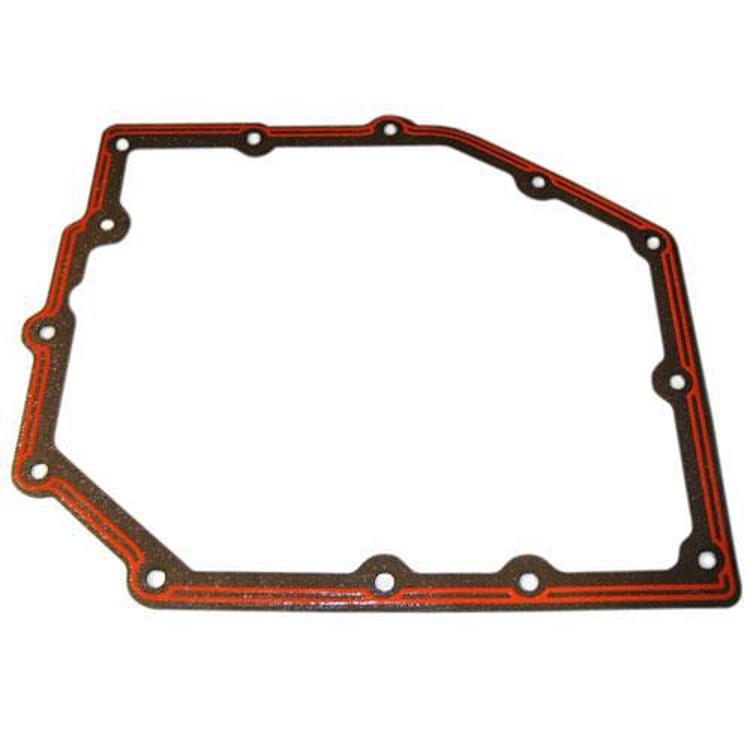

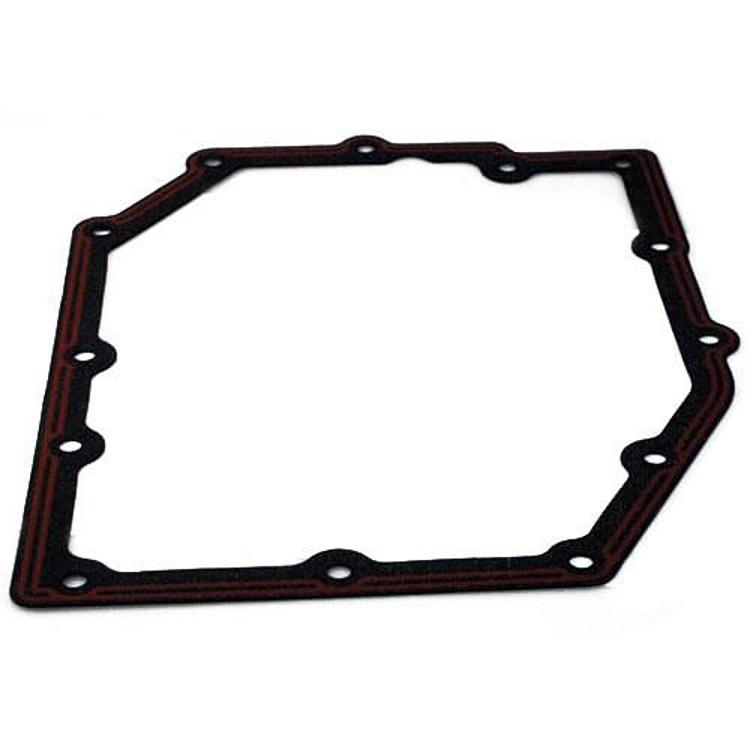

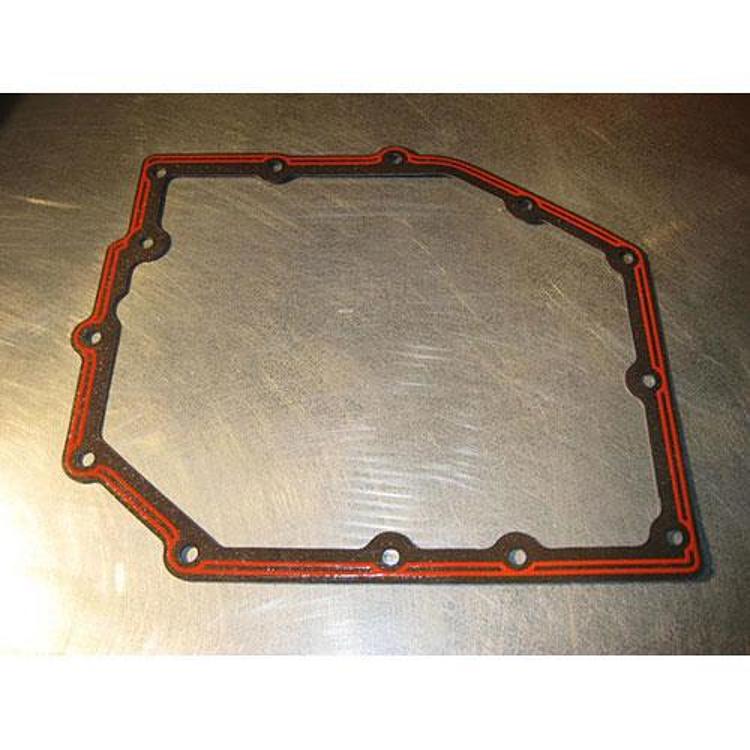

The Lube Locker transmission pan gasket, part number LLR-A042, is a steel-core, rubber-coated gasket made for the 42RLE 4 speed transmission.
The gasket has full perimeter elastomer beading on both sides, which is designed to keep it from splitting or extruding during installation. It is also designed for good torque retention.
Key features
- Steel core with rubber coating
- Full perimeter elastomer beading on both sides
- Dry installation, no sealant needed
- Direct fit design
- Superior torque retention, per Lube Locker
Before you install
A pan gasket works by compressing between two flat surfaces, so the pan flange and transmission case need to be clean and undamaged before fitting. Remove old residue with a plastic scraper, and check the flange for warping or deep scratches that could let fluid pass. Gaskets are generally replaced each time the pan comes off.
Tighten the pan bolts evenly in a crisscross pattern, and recheck them after the first few drives. After refilling, look under the vehicle for seepage at the pan edge over the following days, since small leaks often show up after the fluid has warmed up.
- Clean both mating surfaces before fitting
- Inspect the pan flange for warping
- Recheck pan bolts after the first drives
Specifications
| Brand | Lube Locker |
|---|---|
| Part number | LLR-A042 |
| UPC | 859167006185 |
| Construction | Steel core, rubber coated |
| Sealing | Full perimeter elastomer beading on both sides |
| Installation | Dry, no sealant |
| Transmission | 42RLE 4 speed |
Vehicle fitment
It is a direct fit for the 42RLE 4 speed transmission. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Installation is dry, so no sealant is applied. Clean both mating surfaces before fitting the gasket.
What’s included
The gasket is the item named. Not included: Pan and transmission fluid are not included.
