Overview

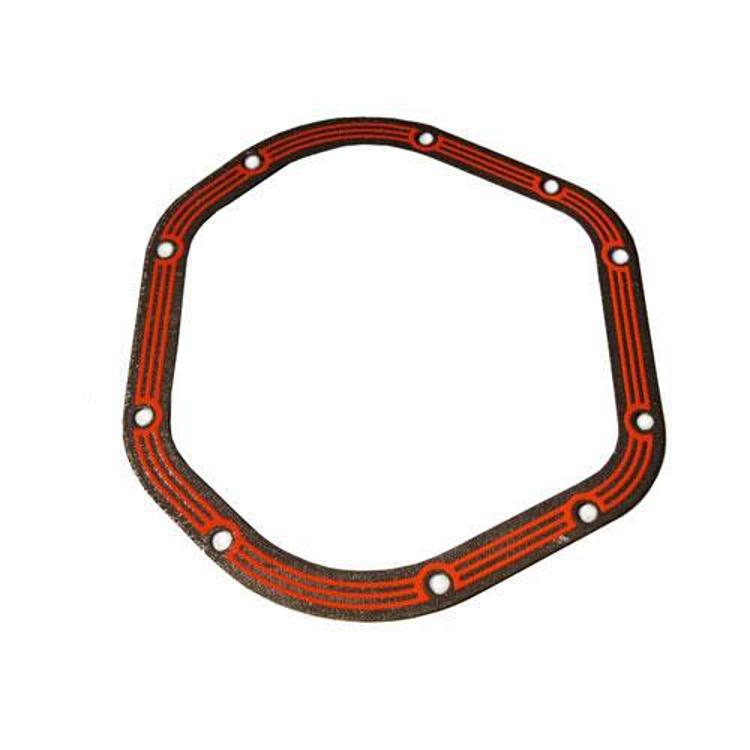

The Lube Locker LLR-D044 is a gasket for Dana 44 differential covers. It has a steel core with a rubber coating and full-perimeter elastomer beading on both sides, and it is designed to install dry, with no RTV or other sealant.
The beading is designed to keep the gasket from splitting or extruding during installation. Installing it dry means there is no set-up time before the cover goes back on.
It is made for Dana 44 covers, including the Dana 44 JK variant, in front and rear axle positions. It does not fit the Nissan Titan.
Key features
- Steel core with rubber coating
- Full-perimeter elastomer beading on both sides
- Installs dry, with no sealant needed
- No set-up time before installation
- Designed not to split or extrude during installation.
Cover prep and reinstall
Differential cover gaskets are simple parts, but the surfaces they seal against decide whether they hold. Clean both the cover and the housing face thoroughly before fitting, removing old gasket material and any oil film. Check the cover for warping or deep scratches, because a dry gasket relies on a flat, clean seat.
Oil level and cover bolts both matter after reinstalling. Tighten the cover bolts evenly in a crisscross pattern so the gasket compresses without pulling to one side. Watch for weeping around the edges during the first drives, and recheck bolt tightness once the axle has run for a short time.
- Replace the gasket whenever the cover is removed
- Keep the gasket and sealing surfaces free of oil film
- Check the fluid level after reinstalling
Specifications
| Brand | Lube Locker |
|---|---|
| Part number | LLR-D044 |
| UPC | 859167006024 |
| Application | Dana 44 differential cover |
| Axle location | Front and rear |
| Axle type | Dana 44 and Dana 44 JK |
| Gasket construction | Steel core, rubber coated, elastomer beading both sides |
| Sealant | None needed |
| Fitment |
Vehicle fitment
It is made for Dana 44 covers rather than for specific vehicles. Confirm the cover type against your axle before installing.
It will not fit the Nissan Titan. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Install the gasket dry, because the elastomer beading seals it without RTV. Since there is no sealant, there is no curing time to plan around.
What’s included
One Dana 44 differential cover gasket.
