Lube Locker Dana 60 Differential Cover Gasket – LLR-D060

Lube Locker

$27.58In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 6:40 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Differential cover gasket for the Dana 60
  • Also fits the Dana 61 and Dana 50 solid axle
  • Elastomer beading on both sides; no sealant needed
  • Steel core, rubber coated

Description

Overview

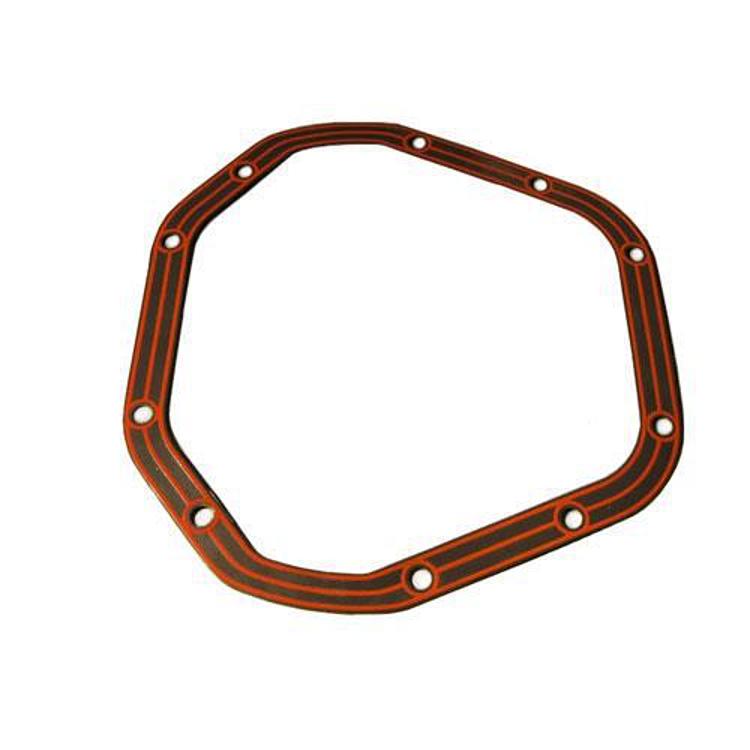

The Lube Locker LLR-D060 is a Dana 60 differential cover gasket with a steel core and elastomer beading on both sides, so no additional sealant is needed.

The gasket fits the Dana 60 differential cover and also fits the Dana 61 and Dana 50 solid axle. It works for front and rear axle locations. The rubber coated steel core and full perimeter elastomer beading on both sides help prevent splitting or extruding during installation and help it hold torque. Installation is dry, with no set up time.

A differential cover gasket seals the cover to the axle housing. Lube Locker says its gaskets have a steel core that is rubber coated, with full perimeter elastomer beading on both sides, and that this prevents splitting or extruding during installation and gives superior torque retention.

Installation is dry because no RTV or silicone sealant is needed, so there is no set up time. The axle types are Dana 60 and Dana 61, in front and rear locations, and the gasket also fits the Dana 50 solid axle.

Key features

  • Fits the Dana 60 differential cover
  • Will also fit the Dana 61 and Dana 50 solid axle
  • Steel core, rubber coated
  • Elastomer beading on both sides of the gasket
  • No additional sealant needed
  • No set up time; installation is dry
  • Front and rear axle locations

Preparing the cover and axle housing

A differential cover gasket only seals as well as the surfaces under it. Before fitting a new gasket, remove the old gasket material completely and clean the cover and housing flange so no residue remains. Look for nicks, warping or corrosion on the sealing faces, since a damaged flange can leak even with a good gasket. Fluid changes are a good time to inspect the cover, the fill and drain plugs and the bolts that hold it on.

Dry installation depends on careful alignment. Set the gasket on the housing in the correct orientation, start the bolts by hand and tighten them in a cross pattern. Because the gasket does not need sealant, avoid adding any, since extra material can push past the beading and prevent a proper seal. Check the fluid level and look for seepage after the first drives, and re-check the bolts as the gasket settles.

  • Clean both sealing surfaces thoroughly
  • Inspect the flange for nicks or warping
  • Tighten bolts in a cross pattern
  • Check for seepage after the first drives

Specifications

Brand Lube Locker
Part number LLR-D060
UPC 859167006031
Part type Differential cover gasket
Axle type Dana 60 (also Dana 61 and Dana 50)
Axle location Front and rear
Core Steel core, rubber coated
Sealing Full perimeter elastomer beading on both sides
Popular axle manufacturer Dana
Fit type Universal fit

Vehicle fitment

This gasket is for the Dana 60, Dana 61 and Dana 50 solid axles, in front or rear locations. Fit is set by axle type rather than by vehicle year or chassis code.

Axle names are not vehicle fitment. Check which axle your vehicle has and confirm your vehicle’s year, model and trim before ordering.

Installation notes

Axle and driveline work is safety-critical, so professional installation is a good idea. Follow the vehicle’s service procedure, tighten fasteners to the correct torque and re-check them and the fluid level after the first miles of driving.

What’s included

The Lube Locker LLR-D060 comes as one differential cover gasket.

SKU: LULLLR-D060 Category:

Specification

Shipping weight 0.62 lbs
Package dimensions 0.30 × 0.20 × 0.10 in
brands

Questions & Answers

What axles does the Lube Locker LLR-D060 fit?

It is a Dana 60 differential cover gasket that also fits the Dana 61 and Dana 50 solid axle. It works in front or rear axle locations.

Does the Lube Locker gasket need RTV sealant?

No. The gasket has elastomer beading on both sides and installs dry, so no RTV or additional sealant is needed. It also has no set up time.

What is the Lube Locker LLR-D060 made of?

The gasket has a steel core that is rubber coated, with full perimeter elastomer beading on both sides. The beading helps it seal without sealant and resist splitting during installation.

How can I tell the gasket is leaking?

Look for fresh gear oil around the cover edge, on the housing or on the underside of the axle, especially after driving. A small seep can grow, so check the bolts and the cover flange first. If the leak continues after tightening, remove the cover and inspect the gasket and sealing faces.
