Overview
The JcrOffroad JLSD-CAD-PC is a black powder coated center axle disconnect skid plate for the 2018 Jeep Wrangler (JL).

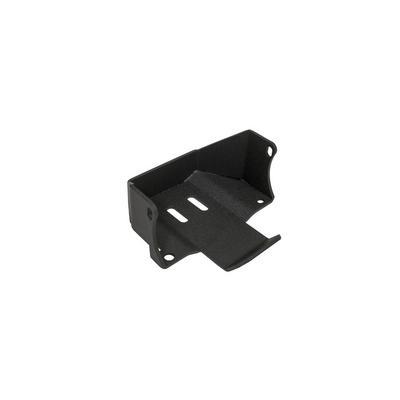

The plate is a single piece of 3/16 inch steel that wraps around the front of the center axle disconnect, so the Jeep can slide over obstacles. It bolts on and includes a JcrOffroad sticker.

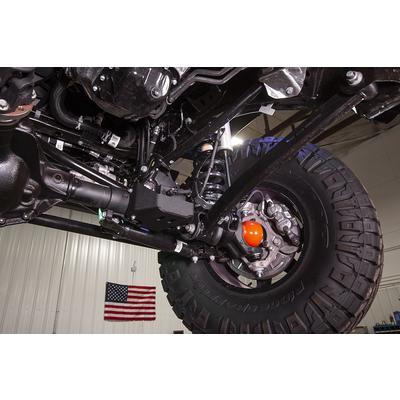

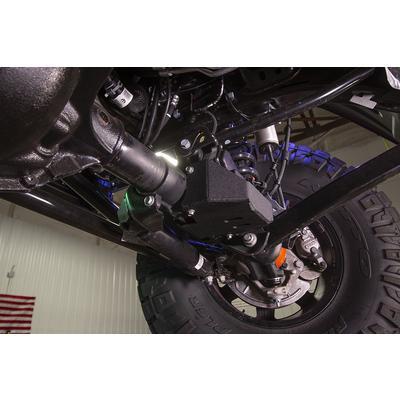

The JL’s front axle has an electrically actuated center disconnect, and the housing sits where a rock can strike it. This skid wraps the front of the axle. It is cut and formed by CNC from 3/16 inch steel, finished in textured black powdercoat, and sold as a single plate. Confirm fit for 2019 and 2020 JL years before ordering.
Key features
- Black textured powdercoat finish
- CNC cut and formed from 3/16 inch steel
- Wraps around the front of the axle so the Jeep can slide over obstacles
- Easy bolt-on installation
- Includes a JcrOffroad sticker
- Made in the USA
- No cutting or drilling required
Skid plate use and clearance
A skid plate protects the center axle disconnect housing from rocks and stumps, and it works best when the plate is the lowest point under the axle. Check underside clearance after any suspension change, since a lift can change how the plate meets obstacles and can move the point of contact.
Rocks can wedge between the plate and the housing, so clear debris after a rough trail run. Look for dents that bend the plate toward the housing, and touch up bare steel with paint or primer to slow rust on the exposed edges.
- Inspect bolts and re-tighten after the first few trail runs
- Check for dents that press the plate against the housing
- Keep the underside clear of packed mud and stones
- Touch up exposed steel before rust spreads
Specifications
| Brand | JcrOffroad |
|---|---|
| Part number | JLSD-CAD-PC |
| Product type | Center axle disconnect skid plate (disconnects skid) |
| Material | 3/16 inch steel, CNC cut and formed |
| Finish | Black textured powder coat |
| Quantity | Individual piece |
| Installation | Bolt-on, no cutting or drilling required |
| Extras | JcrOffroad sticker |
| Origin | Made in the USA |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2018 Jeep Wrangler (JL) in Rubicon, Sport and Sport S two-door trims, and in Unlimited Rubicon, Sahara, Sport and Sport S four-door trims.
The list names the 2018 Wrangler JL in Rubicon, Sport and Sport S two-door trims and the Unlimited Rubicon, Sahara, Sport and Sport S four-door trims. The Gladiator and the 2019 and later Wrangler are not on the list for this plate.
The stored list shows the 2018 Wrangler (JL) only. Later JL model years, the Gladiator and earlier Wranglers are not on the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The plate bolts on with no cutting or drilling required.
What’s included
One center axle disconnect skid plate and a JcrOffroad sticker.
