JcrOffroad NP231 Transfer Case Skid Plate (Black) – XJSD-TC231P

JcrOffroad

Shop JcrOffroad Skid Plates on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Transfer case skid plate for Cherokee models with the factory cross member
  • Frame rail to frame rail protection from 3/16-inch high strength steel
  • Does not require modification to the catalytic converter
  • Black powder coat, made in the U.S.A.
  • Drilling 10 holes, with all hardware provided

Description

Overview

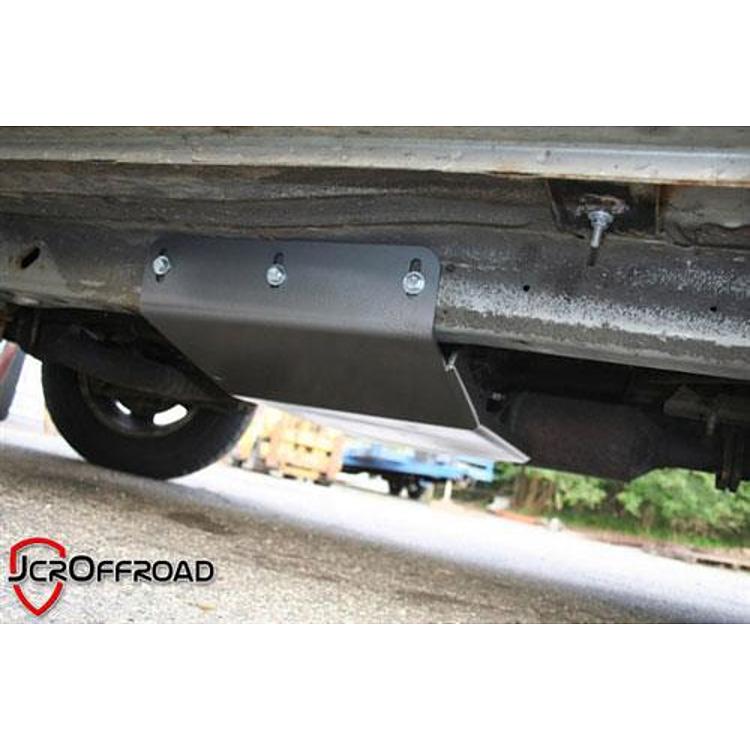

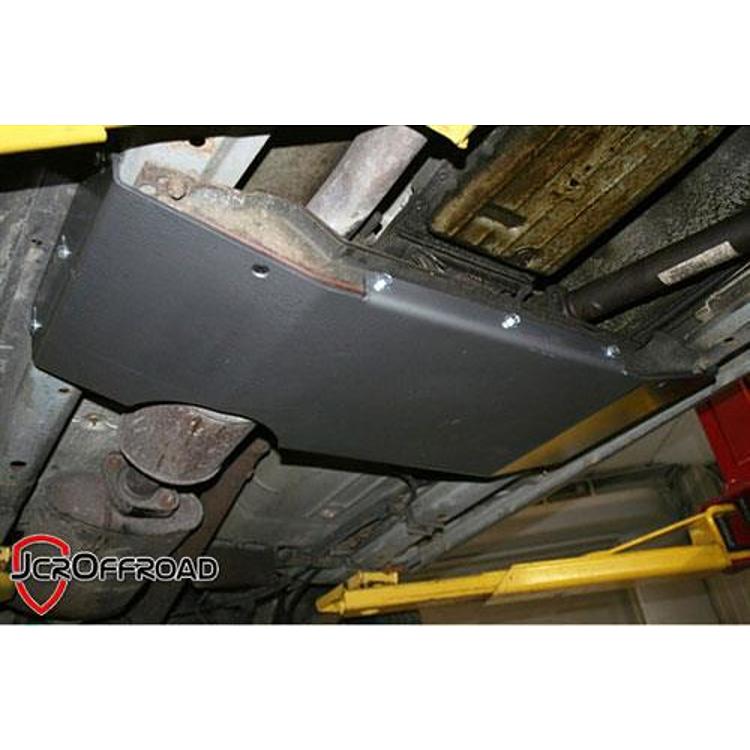

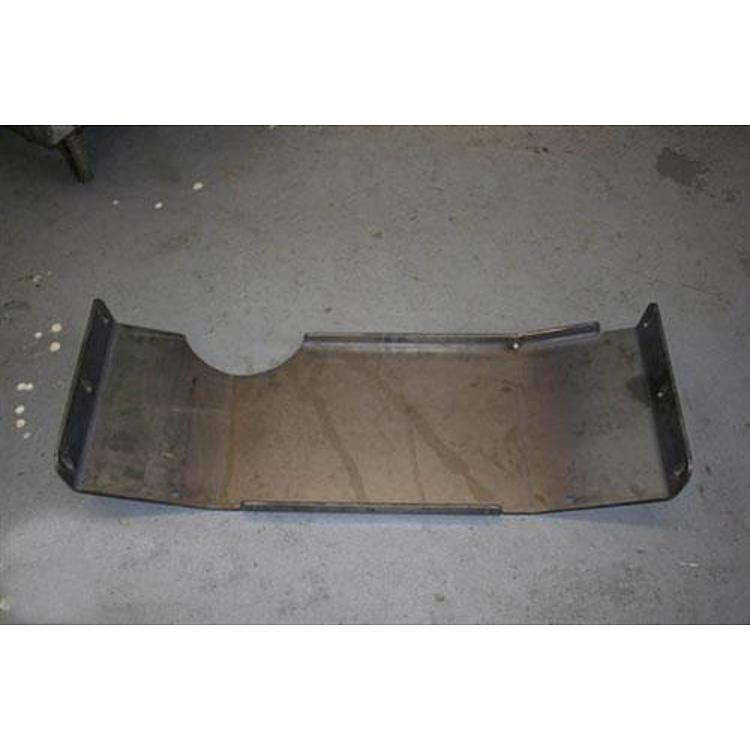

The JcrOffroad NP231 Transfer Case Skid Plate, part number XJSD-TC231P, protects the transfer case on Cherokee models that use the factory cross member. It provides frame rail to frame rail protection, wider coverage than many transfer case skids.

The plate is made from 3/16-inch thick high strength steel, cut on CNC machines and finished in black powder coat. It does not require any modification to the catalytic converter. Installation involves drilling 10 holes, and all of the hardware is included.

Key features

  • Frame rail to frame rail coverage under the transfer case
  • 3/16-inch high strength steel
  • CNC cut for a consistent fit
  • No modification to the catalytic converter
  • Works with the factory cross member
  • Black powder coat finish

Working with the cross member

A transfer case skid shields the case, its output shaft area, and the shift linkage from rocks and stumps. Because the skid spans frame rail to frame rail, it also takes load from front-to-back impacts, and the cross member under it carries that load into the frame. That is why the cross member’s condition matters as much as the skid itself.

Before drilling, check the cross member for rust, cracks around the mounting holes, and any previous repairs. Look at exhaust and fuel lines for clearance as well, and keep the drill bit square to the surface. After trail use, inspect the skid for bent edges, loose hardware, and paint loss near the mounting points, and replace any fastener that has stretched or corroded.

  • Inspect the cross member before drilling
  • Check exhaust and lines for clearance
  • Re-tighten fasteners after early trail runs

Specifications

Brand JcrOffroad
Part number XJSD-TC231P
UPC 700007278541
Model reference NP231 transfer case
Material 3/16-inch high strength steel, CNC cut
Finish Black powder coat
Mounting hardware All hardware provided
Installation Drilling 10 holes
Origin Made in the U.S.A.

Vehicle fitment

Fitment covers Cherokee vehicles that use the factory cross member, with no model years specified. Check the year and the cross member before ordering.

The skid is matched to the stock cross member rather than an aftermarket one. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Installation requires drilling 10 holes. Because the skid is matched to the factory cross member, confirm that the cross member on your vehicle is the stock part before drilling.

What’s included

The transfer case skid plate with all hardware included.

SKU: JCRXJSD-TC231P Category:

Specification

Shipping weight 35.00 lbs
Package dimensions 40.00 × 15.00 × 6.00 in
brands

Questions & Answers

Does the JcrOffroad NP231 skid fit a Cherokee with an aftermarket cross member?

No. It is designed for the factory cross member only. If your vehicle has an aftermarket cross member, the skid is not designed for that setup, so check before drilling.

Does this transfer case skid require modifying the catalytic converter?

No. The skid does not require any modification to the catalytic converter, which is one of the design points for this skid plate.

How many holes does the NP231 skid need drilled?

The installation requires drilling 10 holes. All of the hardware is provided with the skid, so no separate mounting parts are needed for the install.

What years of Cherokee does the XJSD-TC231P fit?

The skid is designed for Cherokee vehicles with the factory cross member. Confirm your model year and that your cross member is stock before ordering, since fitment is matched to that setup.

How do I know if the skid needs replacing?

Replace it if it is cracked, bent in a way that rubs the transfer case, or pulled loose from the cross member. Light dents that leave the case covered are usually fine to keep. Check the mounting holes for elongation, since a skid that has moved on its bolts will not protect the case properly.
