JcrOffroad Lower Control Arm Skid Plates (Bare Steel) – JKF-LCAS

JcrOffroad

Shop Jeep Wrangler JK Skid Plates on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Reinforces and protects the lower control arms on Jeep Wrangler JK models
  • CNC cut and formed from 3/16-inch steel, bare finish
  • Works with Dana 44 or Dana 30 front axles
  • Weld-on installation, supplied as a pair, made in the U.S.A.

Description

Overview

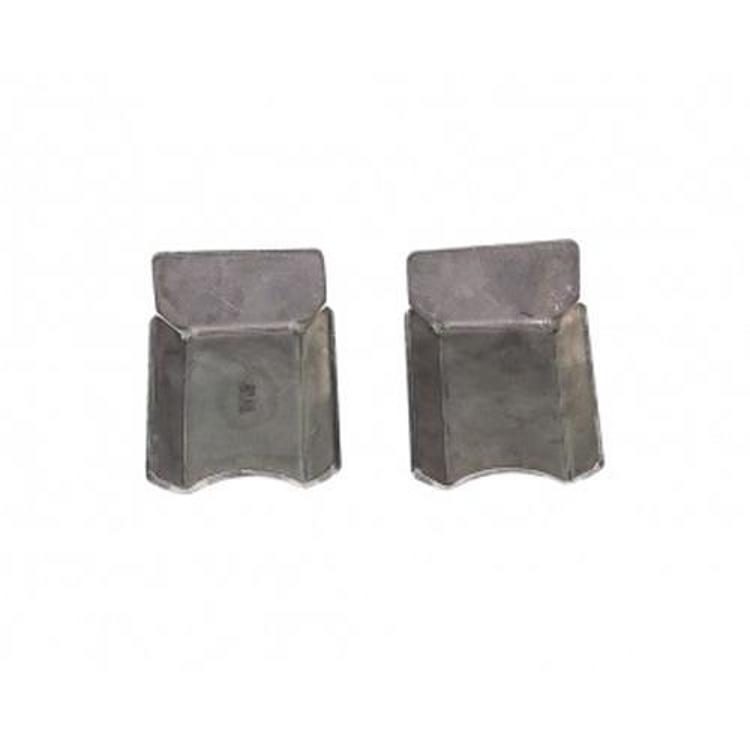

The JcrOffroad Lower Control Arm Skid Plates, part number JKF-LCAS, protect and reinforce the lower control arms on the 2007-2016 Jeep Wrangler JK. The plates are supplied as a pair, one for each side, and are made for Dana 44 or Dana 30 front axles.

The plates are CNC cut and formed from 3/16-inch steel. They are welded on rather than bolted, so the installation requires welding. The plates give the control arms a protective shield against trail damage.

Key features

  • Protects the lower control arms from trail damage
  • Designed for Dana 44 or Dana 30 front axles
  • CNC cut and formed 3/16-inch steel
  • Bare steel finish
  • Weld-on installation
  • Supplied as a pair, made in the U.S.A.

Weld-on work and control arm wear

Lower control arms carry braking and driving loads, so any work on them deserves care. Welding near the arm bushings and ball joint ends can heat the rubber and grease, which shortens their life, so protect those parts with heat shielding or remove them before welding. Clean the mounting surfaces to bare metal and fit the plates in place before tacking, so the alignment is correct on the first pass.

Skid plates reduce the chance that rocks dent or bend the arms, but they also add weight to the lower suspension. Inspect the bushings, ball joints and boot seals after installation and at regular service intervals. Because the plates are welded rather than bolted, removing them later is difficult, so decide on the fit carefully.

  • Shield bushings and ball joints during welding
  • Clean mating surfaces to bare metal before fitting
  • Inspect boots and joints after the first drives

Specifications

Brand JcrOffroad
Part number JKF-LCAS
UPC 70000778862
Material 3/16-inch steel, CNC cut and formed
Finish Bare steel
Quantity Pair
Axle compatibility Dana 44 or Dana 30 front axles
Installation Welding required

Vehicle fitment

JcrOffroad lists these plates for the 2007-2016 Jeep Wrangler (JK), including the Unlimited models.

The list does not include the Wrangler JL or the Wrangler TJ and LJ. The plates are for front axles, so check that your front axle is a Dana 44 or Dana 30 before welding. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the plates are weld-on, the installation needs welding equipment and cannot be done as a bolt-on job.

What’s included

A pair of lower control arm skid plates, one for each side. Check the package contents and welding supplies against your installation before starting.

SKU: JCRJKF-LCAS Category:

Specification

Shipping weight 3.00 lbs
Package dimensions 9.00 × 6.00 × 4.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201670th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Do the JcrOffroad skid plates fit a Dana 30 front axle?

Yes. The plates are made for Dana 44 or Dana 30 front axles and fit the 2007-2016 Jeep Wrangler JK. Check that your front axle is one of these types before welding.

Do these lower control arm skids bolt on?

No. The plates are welded to the control arms rather than bolted, so installation requires welding equipment and cannot be done as a bolt-on job.

Are the JKF-LCAS plates sold as one or as a pair?

They are supplied as a pair, one for each side of the vehicle. The product is made in the U.S.A. from 3/16-inch CNC cut and formed steel.

Which Jeep years do these skid plates cover?

JcrOffroad lists them for the 2007 to 2016 Jeep Wrangler JK, including the Unlimited models. The Wrangler JL and the earlier TJ and LJ are not on the list.

Should the control arm bushings be checked before welding?

Yes. Worn bushings or split boots should be replaced before the plates go on, since heat from welding can damage the rubber and grease. Check the joints for play and cracks while the arms are accessible.

Can weld-on skid plates be removed later?

Not easily, because they are welded to the control arms. If removal may be needed, consider the work involved and a professional's help before welding, and plan to grind or cut the welds carefully.
