JcrOffroad Steering Box Skid (Bare Steel) – TJSDSTRB

JcrOffroad

Shop Jeep Wrangler TJ Skid Plates on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • JcrOffroad TJSDSTRB steering box skid, bare steel
  • Fits 2004–2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon
  • Fits 1997–2006 Jeep Wrangler (TJ)
  • Made from 3/16-inch steel, no cutting or drilling required

Description

Overview

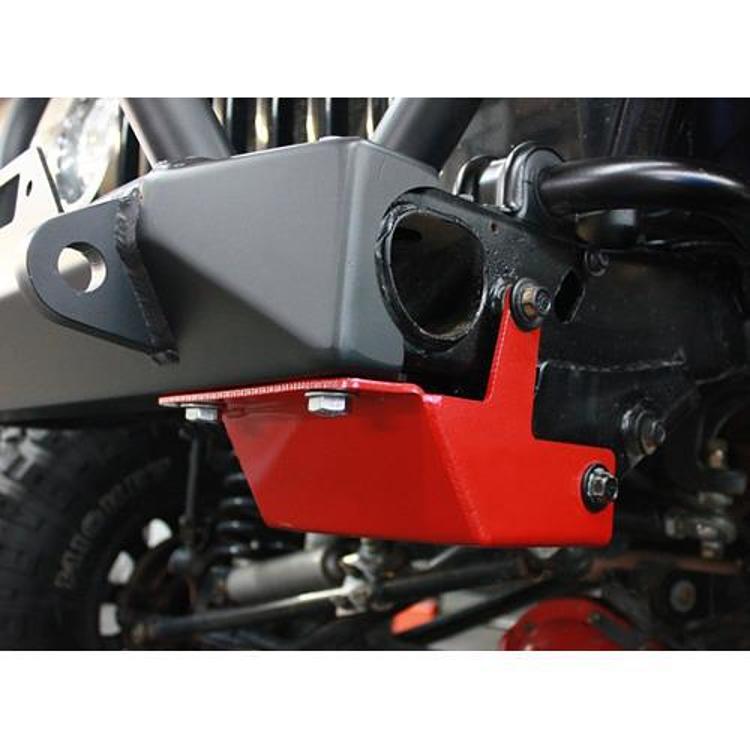

The JcrOffroad TJSDSTRB is a steering box skid in bare steel for the 1997–2006 Jeep Wrangler (TJ) and the 2004–2006 Jeep Wrangler (LJ) Unlimited. It protects the steering box from damage off road, which is the purpose JcrOffroad gives for the part.

The skid is 3/16-inch steel, made in the U.S.A., and it bolts on without cutting or drilling.

Key features

  • Steering box skid plate
  • Bare steel finish
  • 3/16-inch steel
  • Bolt-on installation with no cutting or drilling
  • Made in the U.S.A.

Caring for bare steel

Bare steel protects well once it is in service, but it rusts when mud, water and road salt sit against it. A skid that is hit by rocks can also chip or bend at its edges, and a bent edge can rub the steering box or its linkage. Wiping off mud after trail use and checking the edges after a hard hit keeps the part doing its job.

Because the skid sits beside the steering box, look at the fasteners at each service and confirm the box still has clearance through full steering travel. If surface rust starts, a rust-inhibiting primer followed by a topcoat slows it. Replacing a badly bent skid is usually simpler than straightening it, since distorted metal may not sit flat again.

  • Clean mud and salt off after trail runs
  • Check the edges for bends after hard impacts
  • Confirm steering box clearance after reinstalling

Specifications

Brand JcrOffroad
Part number TJSDSTRB
UPC 700007788981
Type Steering box skid
Material thickness 3/16-inch steel
Finish Bare steel
Installation No cutting or drilling required
Fitment type Direct fit

Vehicle fitment

It fits the 2004–2006 Jeep Wrangler (LJ) in Unlimited and Unlimited Rubicon trims, and the 1997–2006 Jeep Wrangler (TJ) in 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims.

The list does not include the 2007 and later Wrangler JK or the Jeep Wrangler YJ. Confirm your vehicle’s year, model and trim before ordering.

What’s included

The kit is one steering box skid in bare steel. Confirm the fastener set you need before installing.

SKU: JCRTJSDSTRB Category:

Specification

Shipping weight 5.00 lbs
Package dimensions 9.00 × 9.00 × 9.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the JcrOffroad TJSDSTRB fit a 2005 Jeep Wrangler Unlimited?

Yes. It fits the 2004–2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon, which covers 2005 models. It also fits the TJ Wrangler from 1997–2006, so confirm the trim for your vehicle before ordering.

Does the TJSDSTRB need cutting or drilling?

No. It bolts on without cutting or drilling, so no modification of the frame area is needed. Check the steering box clearance once it is fitted.

Is the skid finished in black?

No. The skid is bare steel with no coating, so it has no black powder coat finish. Bare steel is the finish this part comes in, and it can be painted or coated later if you prefer a different look.

How do I clean a bare steel skid?

Rinse off mud and salt with water, then dry the surface thoroughly. Light surface rust can be sanded lightly and treated with a rust-inhibiting primer before a topcoat. Avoid leaving wet grit packed against the steel, which speeds rust.
