G2 TJ Front and Rear 4.88 Ring and Pinion Kit – 4-TJ2-488

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front and rear 4.88 ring and pinion kit for TJ Wranglers
  • Dana 30 front axle and Dana 44 rear axle
  • Includes matched front and rear master installation kits
  • Computer heat treated 8620 steel, double shot peened
  • Limited lifetime warranty

Description

Overview

The G2 Axle and Gear 4-TJ2-488 is a 4.88 ratio front and rear ring and pinion kit for the Jeep Wrangler TJ, 1997-2006. It is for non-Rubicon models with a Dana 30 front axle and a Dana 44 rear axle.

G2 says these gears are designed to hold up to oversized tires and high performance engines, and this kit changes both axles together. The front and rear master installation kits are matched to their own gear sets and come in the same package.

Key features

  • Front and rear 4.88 ratio ring and pinion sets
  • Dana 30 front and Dana 44 rear axles
  • Matched front and rear master installation kits
  • Computer heat treated 8620 steel
  • Double shot peened, double lapped gears

Tire size and gearing

Oversized tires shift the balance of a Jeep’s drivetrain. Each mile of travel turns the axles fewer times, so a numerically higher gear helps the engine pull the tire through rocks, mud and steep climbs. The gain comes with slower cruising and more engine speed on the highway.

Gearing decisions are easier when the rest of the drivetrain is known. Check the transfer case ratio, the tire diameter and the engine’s power band before committing. Expect setup work after installation, and keep an eye on differential temperature and gear noise during the first trips.

  • Know your tire diameter before choosing
  • Consider transfer case ratio and engine power
  • Expect higher engine speed at highway pace
  • Watch for gear noise during early trips

Specifications

Brand G2 Axle and Gear
Part number 4-TJ2-488
UPC 700007521931
Gear ratio 4.88
Front axle Dana 30
Rear axle Dana 44
Material Computer heat treated 8620 steel
Models Non-Rubicon
Warranty Limited lifetime

Vehicle fitment

The TJ chassis code gives the Jeep Wrangler (TJ), 1997-2006. The kit is for non-Rubicon models with a Dana 30 front and Dana 44 rear.

Wranglers outside the 1997-2006 TJ years, including the YJ, LJ and JK, are not covered. The set is for non-Rubicon models, so Rubicon owners should check the axle setup before ordering. Verify year, model and trim before ordering.

Installation notes

Set the pinion depth and backlash after the new gears go in. Keep each master installation kit with its matching gears, and have the carriers checked with the proper tools.

What’s included

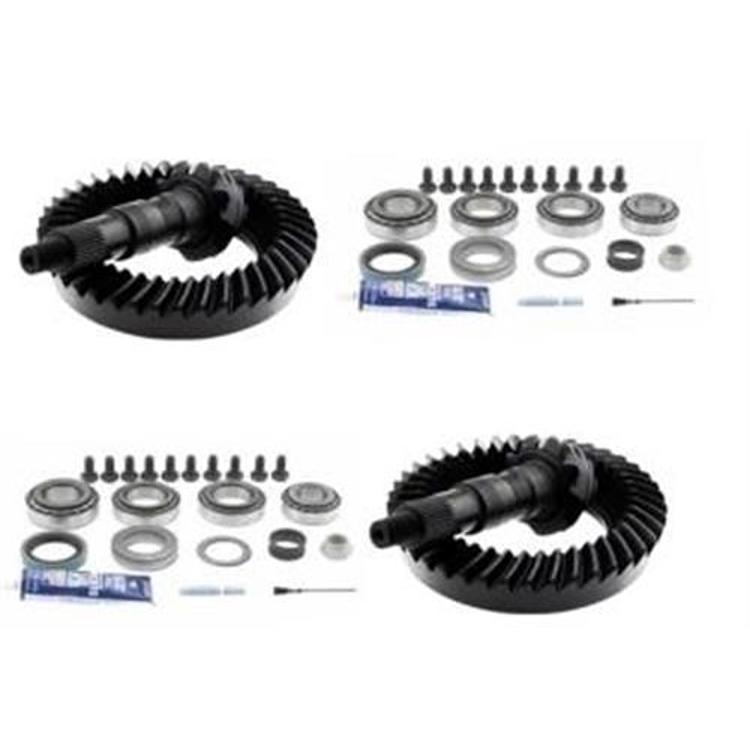

Front and rear 4.88 ring and pinion sets, plus matched master installation kits for both axles.

Not included: The carriers are sold separately.

SKU: G/24-TJ2-488 Categories: ,

Specification

Shipping weight 37.24 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ) likely fits1997–2006All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the G2 4-TJ2-488 kit fit a 2000 Jeep Wrangler TJ?

Yes. The TJ chassis code covers the 1997-2006 Wrangler, so a 2000 TJ is in range. The kit is for non-Rubicon models with a Dana 30 front and Dana 44 rear axle, so confirm those before ordering.

What gear ratio does the 4-TJ2-488 kit use?

The kit uses a 4.88 ratio ring and pinion for both the front and rear axles. It is built with computer heat treated 8620 steel and comes with matched master installation kits.

Are the carriers included with the 4-TJ2-488 kit?

No. The carriers are sold separately. The kit includes the front and rear 4.88 ring and pinion sets with matched master installation kits for each axle.

Does a 4.88 ratio suit a stock-size tire?

It can be used with stock-size tires, but the engine will turn faster at highway speeds, which can increase noise and fuel use. Many owners choose a different ratio for stock tires, so match gearing to the tire size you run.
