G2 GM 8.5 Inch 10 Bolt Replacement Axle Shaft – 95-2021-002

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1981–1987 Chevrolet K10 and V10 4WD
  • GM 10 bolt 8.5 inch axle, 28 splines
  • 31.31 inch overall length; studs not included

Description

Overview

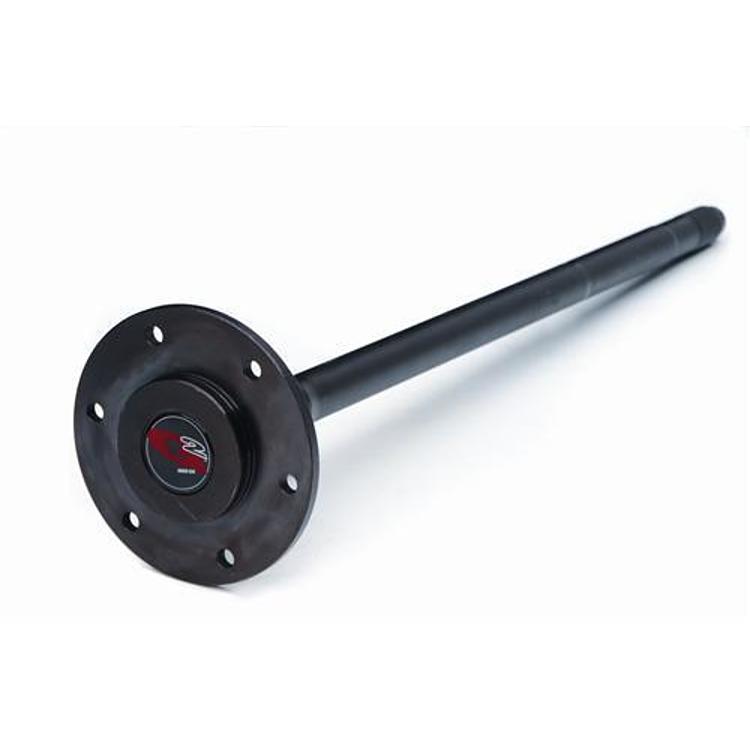

The G2 Axle and Gear 95-2021-002 is a rear replacement axle shaft for the GM 10 bolt 8.5 inch axle in the 1981–1987 GM K10 four-wheel-drive truck. It has 28 splines and a 31.31 inch overall length.

It is forged from high grade alloy steel and heat treated, which suits high-torque use with larger tires.

The 95-2021-002 gives the K10 owner a stated 31.31 inch overall length to compare against the shaft being replaced. With 28 splines, it fits the GM 10 bolt 8.5 inch rear axle on either side. G2 Axle and Gear says its shafts are built to survive high-torque use, and it points to rolled splines and better materials as the reason owners can fit larger tires.

Key features

  • 28 splines
  • 31.31 inch overall length
  • Either driver or passenger side
  • GM 10 bolt 8.5 inch rear axle
  • Forged alloy steel, heat treated.
  • Wheel studs not included

Measuring before you buy

The overall length of an axle shaft matters as much as its spline count. Measure the old shaft from end to end, including the splined end and the flange, and compare that length with the new part before buying. A shaft that is too short will not reach the differential side gear, and one that is too long can bind the axle when the suspension moves.

Four-wheel-drive K10 trucks often use a shaft that has been replaced before, so check the hub, the bearing and the axle tube for corrosion or old repairs. Clean the splines and apply a thin coat of axle spline grease. Inspect the seal for leaks and replace it if it is hardened. Keep the lug nut torque within the range your wheels and hubs require.

  • Measure the old shaft end to end before buying
  • Clean the splines before fitting the new shaft
  • Inspect the axle tube for corrosion

Specifications

Brand G2 Axle and Gear
Part number 95-2021-002
UPC 631410106022
Product type Replacement axle shaft
Axle type GM 10 Bolt 8.5 inch
Axle location Rear
Shaft position Driver Or Passenger
Spline count 28
Overall length 31.31 inches
Wheel studs Not included
Stated application 1981-1987 GM K10 4 WD

Vehicle fitment

It fits the 1981–1986 Chevrolet K10 and the 1987 Chevrolet V10, both four-wheel-drive trucks.

Only the four-wheel-drive K10 and V10 trucks are named; two-wheel-drive C10 trucks are not. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

  • Measure your old shaft against the 31.31 inch overall length before installing.
  • Wheel studs are not included.

What’s included

One rear axle shaft that fits either side (95-2021-002).

Not included: wheel studs for the 95-2021-002.

SKU: G/295-2021-002 Category:

Specification

Shipping weight 22.00 lbs
Package dimensions 37.00 × 7.50 × 7.30 in
brands

Fitment

VehicleYearsTrims
Chevrolet K101981–1986Cheyenne, Custom, Deluxe, Scottsdale, Silverado
Chevrolet V101987Custom Deluxe, Scottsdale, Silverado

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

How long is the G2 95-2021-002 axle shaft?

It has an overall length of 31.31 inches. The 95-2021-002 has 28 splines and a 31.31 inch overall length and fits either side.

Which years of the K10 does the 95-2021-002 fit?

It fits four-wheel-drive K10 and V10 trucks, 1981–1986 K10 and 1987 V10. Two-wheel-drive C10 trucks are not covered, so confirm fit for your vehicle's year, model and trim before ordering.

How many splines does the 95-2021-002 have?

It has 28 splines for the GM 10 bolt 8.5 inch rear axle. The 95-2021-002 has 28 splines and a 31.31 inch overall length and fits either side.

Does the 95-2021-002 come with studs?

No. G2 says wheel studs are not included. The 95-2021-002 has 28 splines and a 31.31 inch overall length and fits either side.

How do I know if the axle shaft needs replacing?

Look for a clunk when shifting into drive, a vibration that changes with speed, grease leaking from the hub, or a wheel that wobbles. Any of these signs means the shaft, bearing or seal should be inspected before the truck is driven further.
