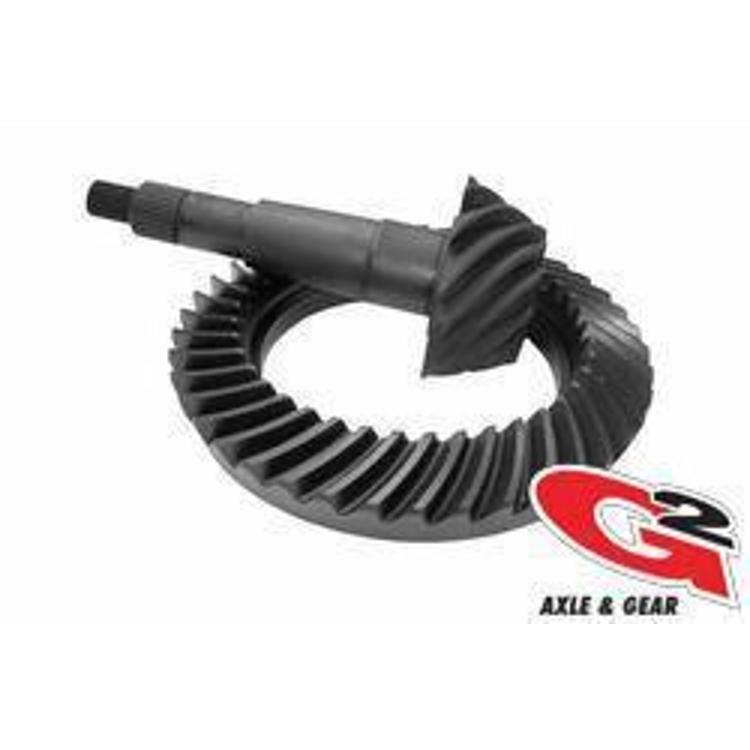

G2 GM 11.5 Inch AAM 14 Bolt 3.42 O.E.M. Ratio Ring and Pinion – 1-2024-342

G2 Axle and Gear

Shop G2 Axle And Gear Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 Axle and Gear 3.42 ratio O.E.M. series ring and pinion for the 11.5 inch AAM rear axle, part 1-2024-342
  • Rear axle location
  • Fits the Chrysler 11.5 inch AAM and GM 14 bolt 11.5 inch (AAM) axle types
  • O.E.M. series, made under contract with original equipment manufacturers

Description

Overview

The G2 Axle and Gear 1-2024-342 is a 3.42 ratio O.E.M. series ring and pinion for the 11.5 inch American Axle Manufacturing (AAM) rear axle. It is for the rear location and fits the Chrysler 11.5 inch AAM and GM 14 bolt 11.5 inch (AAM) axle types.

G2 says its O.E.M. series gears are designed to run cooler and quieter than aftermarket gears, and that the company contracted with original equipment manufacturers to make them. A 3.42 ratio is numerically lower than 3.73 or 4.10, so it gives less torque multiplication at the wheels.

Key features

  • O.E.M. series 3.42 ring and pinion
  • 11.5 inch AAM rear axle types
  • Chrysler 11.5 inch AAM and GM 14 bolt 11.5 inch (AAM) listed
  • Built under contract with original equipment manufacturers.
  • Designed to run cooler and quieter than aftermarket gears.

Choosing a lower ratio

A 3.42 ratio is a lower numerical gear, so the engine turns more slowly at highway speed. That suits steady driving and can reduce engine noise on the road, but pulling power at low speed is less than with higher ratios. Tire size and transmission gearing both affect the result, so weigh them before choosing.

AAM rear axles are common in pickups and some SUVs, and the carrier and housing must be matched to the gear set. Check the carrier type and pinion depth during installation. Lubricant type and fill level should be confirmed for the axle before the vehicle returns to service.

  • Confirm the carrier type before ordering
  • Inspect axle bearings for play
  • Replace the pinion seal during the job

Specifications

Brand G2 Axle and Gear
Part number 1-2024-342
UPC 631410092882
Gear ratio 3.42
Axle location Rear
Axle type Chrysler 11.5 inch AAM; GM 14 bolt 11.5 inch (AAM)
Popular axle manufacturer American Axle Manufacturing
Series O.E.M.

Vehicle fitment

This 3.42 set fits the Chrysler 11.5 inch AAM and GM 14 bolt 11.5 inch (AAM) axle types. Confirm the housing before ordering.

Only the Chrysler 11.5 inch AAM; GM 14 bolt 11.5 inch (AAM) is named for this 3.42 set. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Pinion depth, backlash and bearing preload on the 11.5 inch AAM gears should be set by a driveline shop, followed by a break-in period.

What’s included

A matched O.E.M. series ring and pinion for the 11.5 inch AAM rear axle.

SKU: G/21-2024-342 Category:

Specification

Shipping weight 37.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

Which AAM axle types does the 1-2024-342 fit?

It fits the Chrysler 11.5 inch AAM and GM 14 bolt 11.5 inch (AAM) axle types in the rear location. Confirm the housing before ordering.

Is this 3.42 set a high or low ratio?

It is a 3.42 ratio, which is numerically lower than the 3.73 and 4.10 options. It gives less torque multiplication at the wheels than those ratios.

Is this an O.E.M. series gear?

Yes, G2 places it in the O.E.M. series, which it says runs cooler and quieter than aftermarket gears and is made under contract with original equipment manufacturers.

Should a 3.42 set be broken in like other ring and pinion kits?

Yes. The gears need a break-in period so the contact pattern can settle. Follow the shop's break-in guidance, and check for leaks and noise during the first drives.
