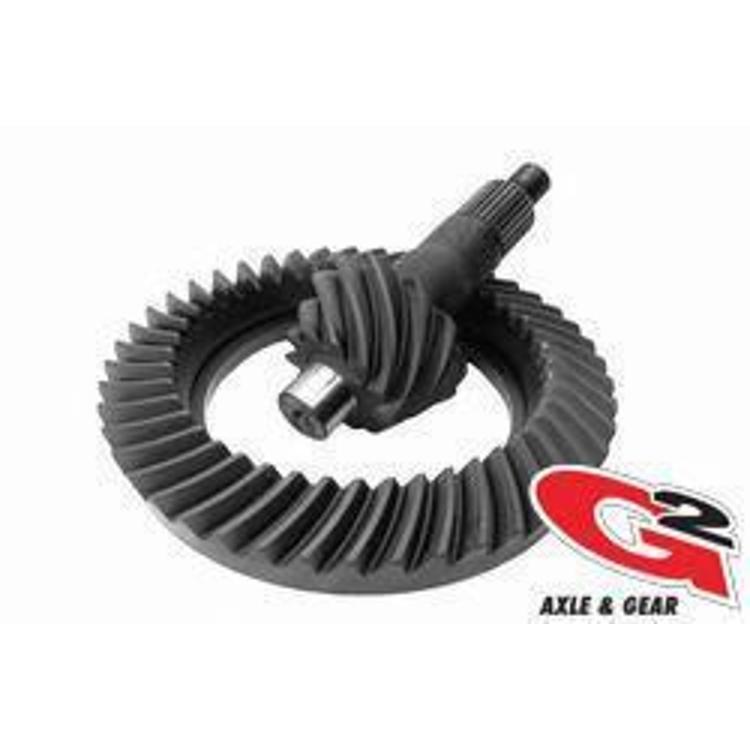

G2 GM 10.5 Inch 14 Bolt 4.10 O.E.M. Ratio Ring and Pinion – 1-2023-410

G2 Axle and Gear

Shop G2 Axle And Gear Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 Axle and Gear 4.10 ratio O.E.M. series ring and pinion for the GM 14 bolt 10.5 inch rear axle, part 1-2023-410
  • Rear axle location
  • O.E.M. series, made under contract with original equipment manufacturers
  • Runs cooler and quieter than aftermarket gears

Description

Overview

The G2 Axle and Gear 1-2023-410 is a 4.10 ratio O.E.M. series ring and pinion for the GM 14 bolt 10.5 inch rear axle. It is built for the rear location and is matched by axle type rather than by a named vehicle.

G2 says its O.E.M. series gears are designed to run cooler and quieter than aftermarket gears, and that the company has contracted with original equipment manufacturers to make them. The set is a 4.10 ratio, for this 14 bolt housing.

Key features

  • O.E.M. series 4.10 ring and pinion
  • GM 14 bolt 10.5 inch rear axle
  • Rear axle location
  • Built under contract with original equipment manufacturers.
  • Designed to run cooler and quieter than aftermarket gears.

Choosing an O.E.M. set

O.E.M. series gears are built to the original equipment pattern, so the mesh and carrier fit tend to feel familiar during setup. For a 14 bolt housing, that means fewer surprises when the gears go in. A 4.10 ratio is a common choice when people want more pulling power at low speed, but it also raises engine speed on the highway. Decide how you drive before choosing the ratio.

Signs that the old set is worn include whine under load, a clunk when shifting between drive and coast, and uneven wear patterns on the tooth faces. Replace the pinion and carrier bearings and the pinion seal at the same time. A driveline shop should set pinion depth and backlash, and the new gears should be driven gently through their break-in period.

Specifications

Brand G2 Axle and Gear
Part number 1-2023-410
UPC 631410092851
Gear ratio 4.10
Axle location Rear
Axle type GM 14 bolt 10.5 inch
Popular axle manufacturer GM
Series O.E.M.

Vehicle fitment

The 4.10 set is for the GM 14 bolt 10.5 inch housing. Confirm the housing and carrier before ordering.

Only the GM 14 bolt 10.5 inch is named for this 4.10 set. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A driveline shop should set pinion depth, backlash and bearing preload on the 10.5 inch O.E.M. gears, followed by a break-in period.

What’s included

A matched O.E.M. series ring and pinion for the GM 14 bolt 10.5 inch rear axle.

SKU: G/21-2023-410 Category:

Specification

Shipping weight 34.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

Is the 1-2023-410 set for the GM 14 bolt 10.5 inch rear axle?

Yes, it is made for the GM 14 bolt 10.5 inch rear axle. Confirm the housing and carrier match before ordering, since the 4.10 ratio must suit your axle.

Is this an O.E.M. series gear?

Yes, it is in G2's O.E.M. series, which the company says runs cooler and quieter than aftermarket gears and is made under contract with original equipment manufacturers.

Are any vehicles named for this set?

This 4.10 set fits the GM 14 bolt 10.5 inch housing by axle type, so fit depends on the housing rather than a model year. Confirm the axle and carrier match before ordering.

Should the carrier bearings be replaced with new gears?

Usually yes. Carrier and pinion bearings cost little compared with labor, and running new gears on worn bearings can cause noise and early tooth wear. Inspect the bearings for play and roughness before assembly.
