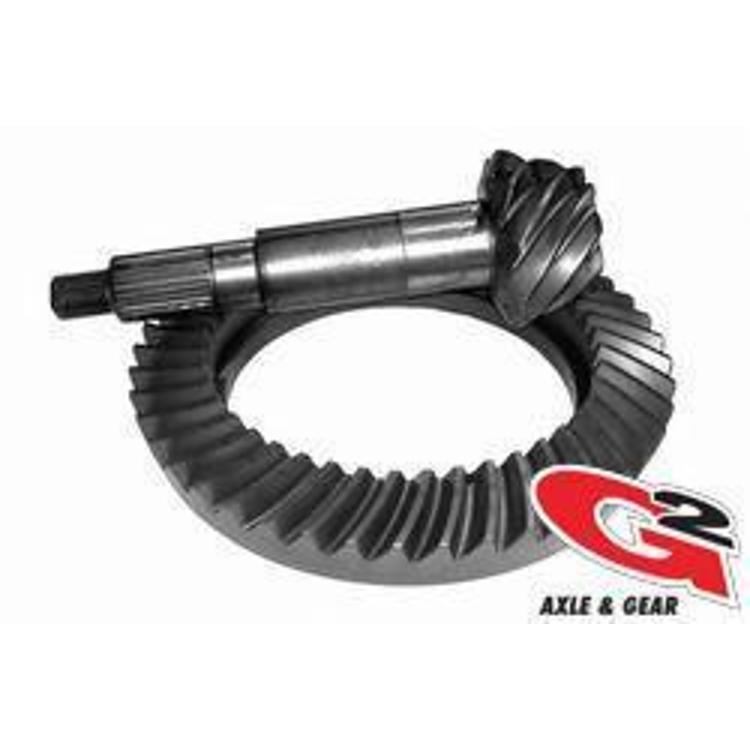

G2 Dana 44 3.54 Ratio Ring and Pinion – 2-2033-354

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 Dana 44 3.54 ratio ring and pinion, part number 2-2033-354
  • Front or rear Dana 44 axle location
  • Heat-treated 8620 steel with a 10-year warranty

Description

Overview

The G2 Dana 44 3.54 Ratio Ring and Pinion, part number 2-2033-354, is a 3.54-ratio gear set for Dana 44 front or rear axles. It is one of G2’s ring and pinion sets.

The sets are engineered for demanding use and built to hold up to oversized tires and performance engines. They use current manufacturing technology and materials.

Key features

  • 3.54 gear ratio
  • Front or rear Dana 44 axle location
  • Designed for demanding use and built to handle oversized tires and performance engines.

Break-in and setup

A new ring and pinion needs a controlled break-in before it carries loads. Early driving should be gentle, with light throttle and avoiding long pulls, so the tooth faces can seat evenly. Check for whine or a changing noise after the first few drives, since those sounds can point to a mesh or preload issue that needs a shop to correct.

Gear ratio changes affect how the axle behaves at speed, so think about tire size and the engine’s power before choosing a ratio. Setting the carrier bearings and pinion depth correctly matters as much as the gears themselves. Lubricant should be the type the axle requires and filled to the correct level, and changed on the schedule the axle needs.

  • Break in gently for the first few drives
  • Listen for whine after the initial miles
  • Use the lubricant the axle requires

Specifications

Brand G2 Axle and Gear
Part number 2-2033-354
UPC 631410093940
Axle type Dana 44
Axle location Front or rear
Gear ratio 3.54

Vehicle fitment

It fits Dana 44 front or rear axles and is not tied to a specific vehicle. Check the carrier and axle housing before installing.

Installation notes

Mesh, backlash and pinion depth should be set by a shop with the right tools, and the gears should be run in before towing heavy loads.

SKU: G/22-2033-354 Categories: ,

Specification

Shipping weight 25.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

What gear ratio is the 2-2033-354?

It is a 3.54 ratio ring and pinion for Dana 44 front or rear axles. Compare it with your current ratio before installing, since a change in ratio changes the gearing of the axle.

Does the 2-2033-354 come with a warranty?

A 10-year warranty applies to this set. Keep the installation receipt and confirm the coverage terms before the gears are installed by a shop.

Is the 2-2033-354 made of heat-treated steel?

Yes. The gears are made from heat-treated 8620 steel, and the 3.54 set is built for Dana 44 front or rear axles. Compare the ratio with your current gearing before ordering.

Does a ring and pinion change usually need new bearings?

Often, yes. Carrier and pinion bearings are commonly replaced with a new gear set, especially when the old parts show wear. Ask the installer to inspect the bearings and seals during setup.

How can I tell a ring and pinion is wearing out?

Look for whine that changes with load, metal in the gear oil, or chipped and pitted tooth faces. Any of these signs means the set should be inspected before the vehicle is used for heavy towing.
