G2 Dana 25/27/30 Aluminum Cover – 40-2031AL

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • For Dana 25, 27 and 30 front axles, except KJ
  • Cast lightweight aluminum to help dissipate heat
  • Reinforcing ribs, heat treated and shot peened
  • Fully machined seal surface

Description

Overview

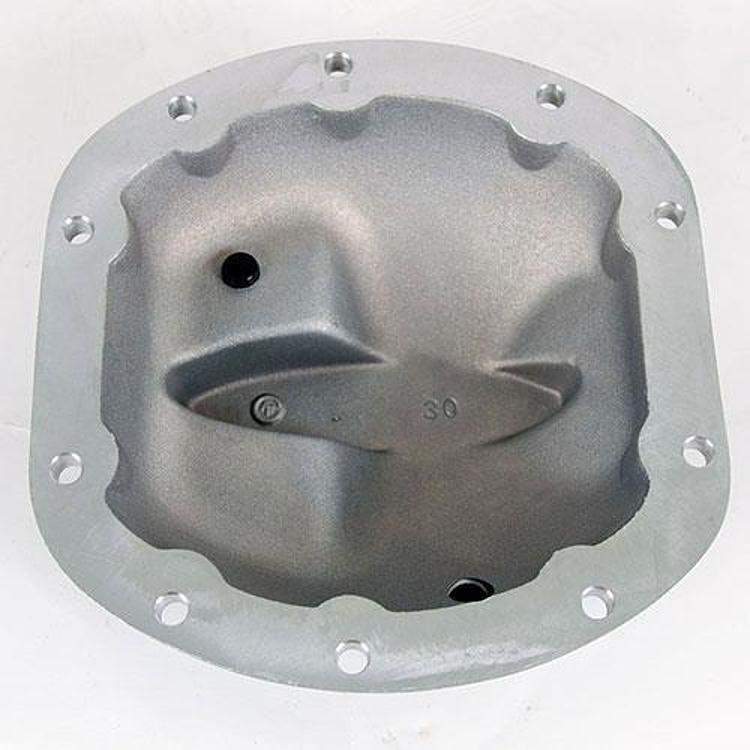

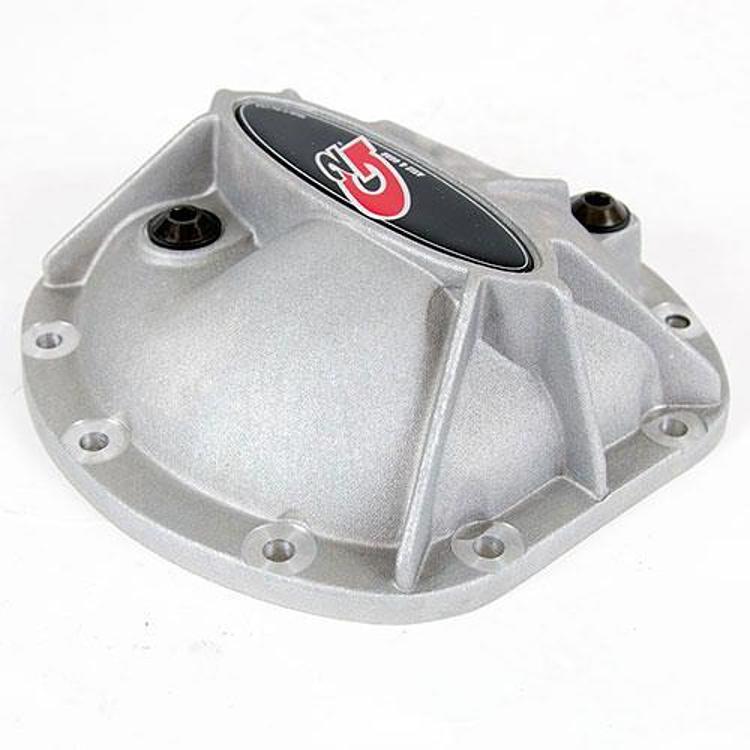

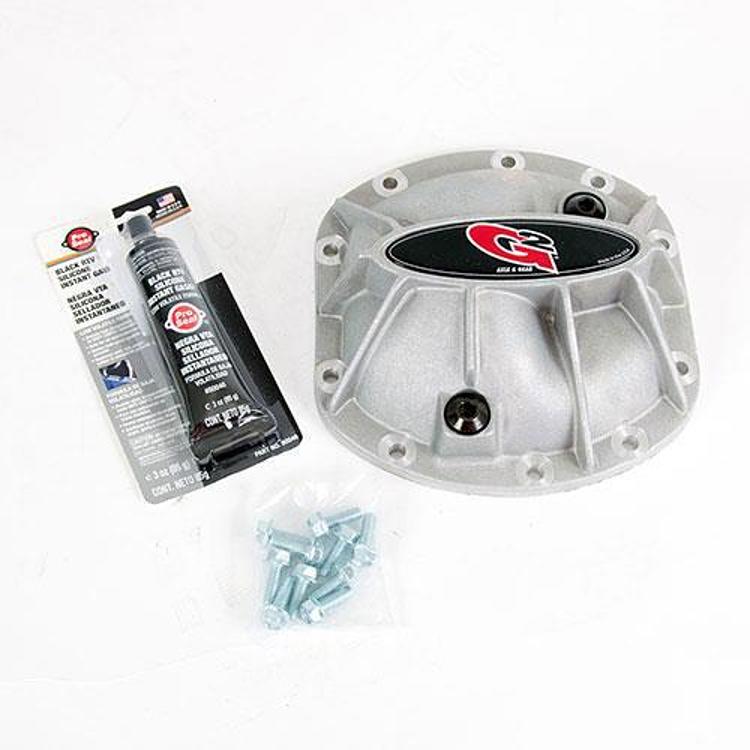

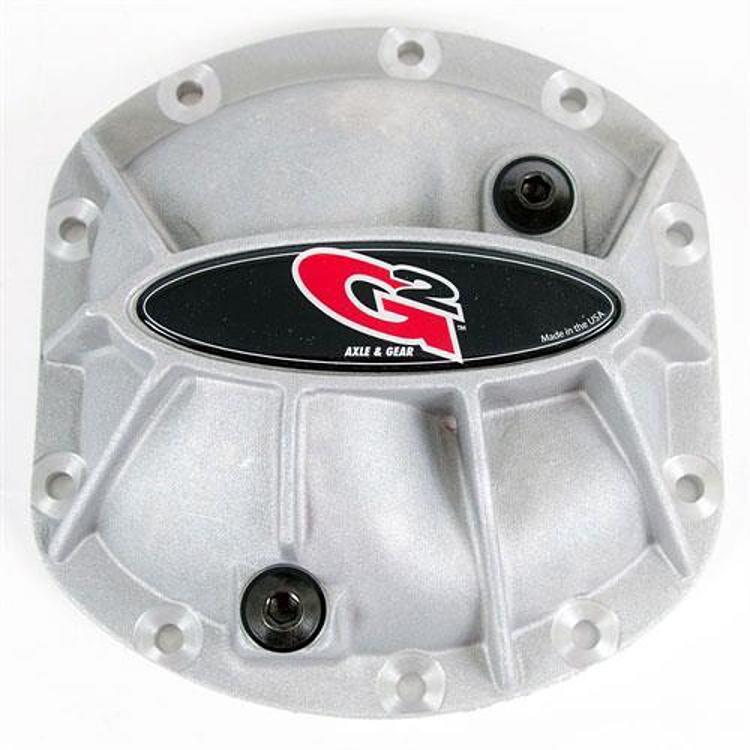

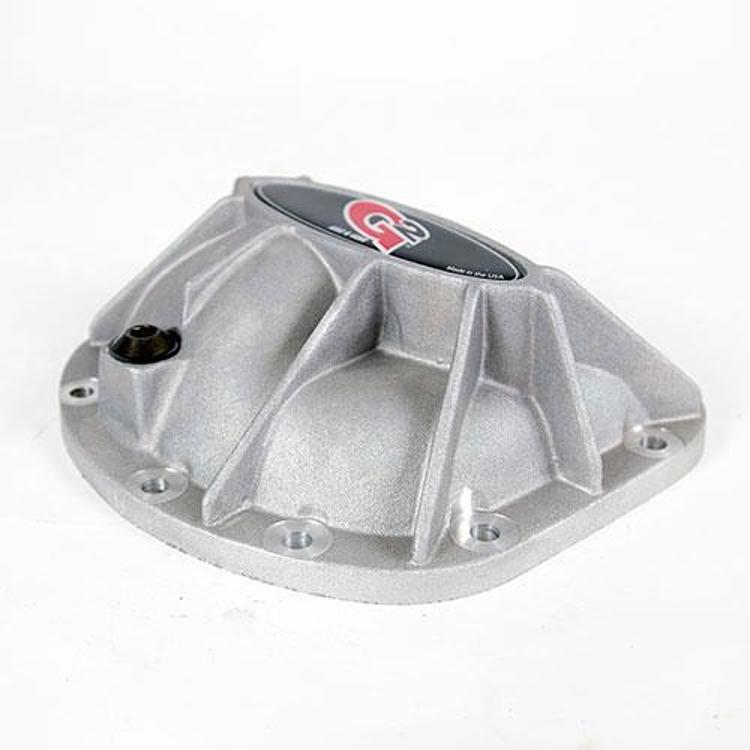

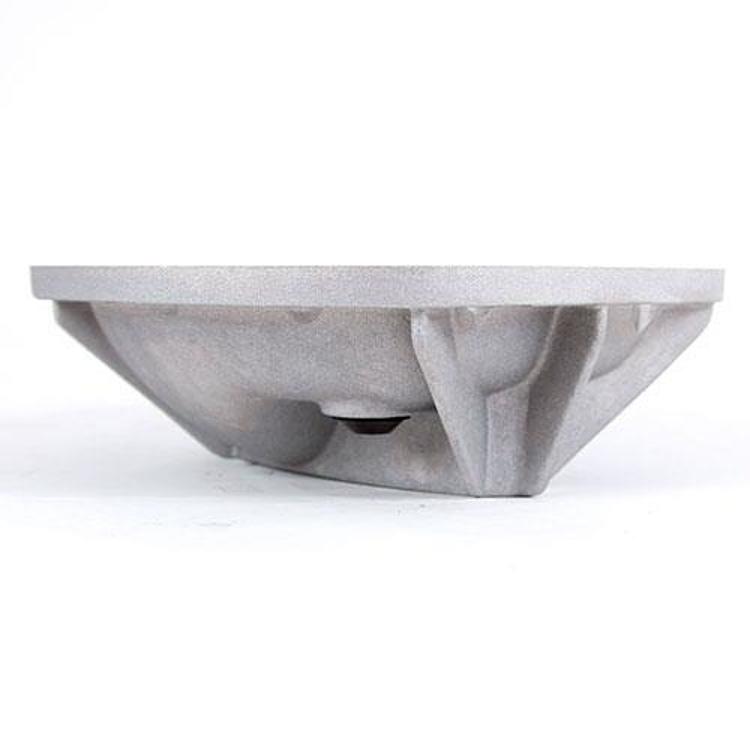

The G2 Dana 25/27/30 aluminum differential cover (part number 40-2031AL) is a front axle cover for Dana 25, 27 and 30 axles, except KJ applications. It is cast from lightweight aluminum to help dissipate heat from the gear oil.

The aluminum cover helps cool the gear oil, which supports longer bearing life. The aluminum is heat treated and shot peened to handle direct impacts, and it has a raw aluminum finish.

Key features

  • Cast from lightweight aluminum to dissipate heat
  • Reinforcing ribs for rigidity and strength
  • Heat treated and shot peened to handle direct impact
  • Fully machined seal surface for a leak-free installation

Before you buy

A differential cover does more than seal the axle housing. It keeps dirt, water and trail debris away from the ring and pinion, and its outer surface affects how well the gear oil sheds heat during long climbs and hot days. Aluminum conducts heat faster than stock covers, which is one reason owners who run larger tires or tow often choose it.

Before buying, make sure the cover suits your housing, since bolt patterns and fill arrangements vary between Dana variants. When you remove the old cover, inspect the gasket surface for pitting, warping or old gasket residue, and clean the mating face thoroughly before the new seal goes on.

  • Clean both mating surfaces before reinstalling
  • Use the gasket or sealant type suited to the cover
  • Refill the gear oil to the level your axle requires

Specifications

Brand G2 Axle and Gear
Part number 40-2031AL
Axle location Front
Axle types Dana 25, Dana 27, Dana 30 JK, Dana 30 Reverse, Dana 30 Standard and Dana 30 TJ
Material Aluminum
Oil capacity Extra capacity
Finish Raw aluminum

Vehicle fitment

This cover is an axle part rather than a vehicle part, and it fits front Dana 25, 27 and 30 axles except KJ. Match the axle type on your vehicle before ordering.

Installation notes

The seal surface is fully machined, which G2 says gives a leak-free installation. Confirm the cover bolt pattern on your axle, since the cover must seat squarely on the machined surface.

SKU: G/240-2031AL Category:

Specification

Shipping weight 6.00 lbs
Package dimensions 13.00 × 13.00 × 5.00 in
brands

Questions & Answers

Which axles is the G2 40-2031AL cover made for?

It is made for front Dana 25, Dana 27 and Dana 30 axles, except KJ applications. The axle types listed include Dana 30 JK, Dana 30 TJ and Dana 30 Standard.

Is this cover for a KJ?

No. The short description excludes KJ applications, so this cover is not intended for them. Check the axle type before ordering.

Does the cover help cool the gear oil?

Yes. The cover is designed to help cool the gear oil, and the cast aluminum body dissipates heat. Its raw aluminum finish is left unpainted.

How do I know when the gear oil needs changing?

Change the gear oil when it looks dark, smells burnt or shows metal particles, or when the service interval for your axle comes due. Pulling the cover during service also lets you check the inside of the housing.
