G2 Axle & Gear Hammer M186/Dana 30 Advantek Front Differential Cover (Gray) – 40-2150G

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front M186 or Dana 30 Advantek cover for Jeep JL Wrangler and JT Gladiator
  • Gray nodular iron, 7/16 to 1/2 inch thick
  • Ramped profile with pockets that guard the bolt heads
  • Extra oil capacity

Description

Overview

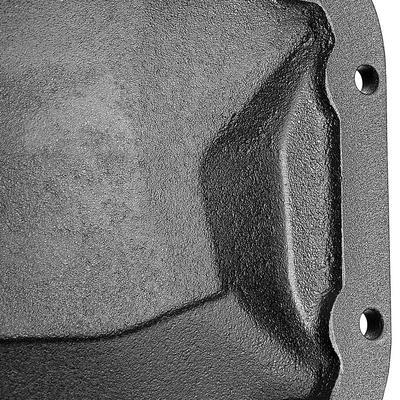

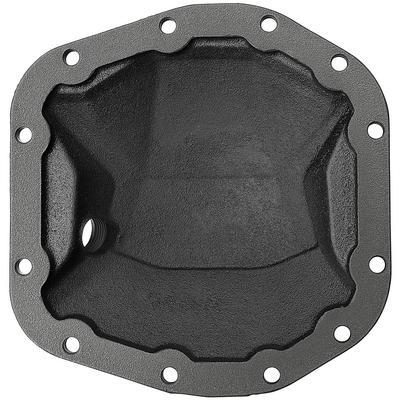

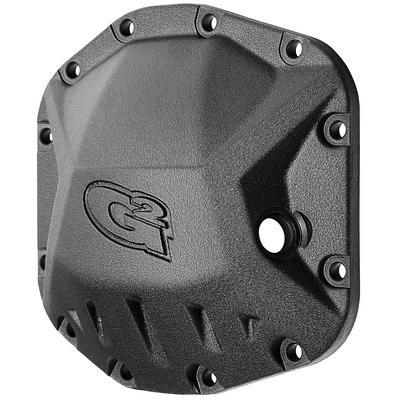

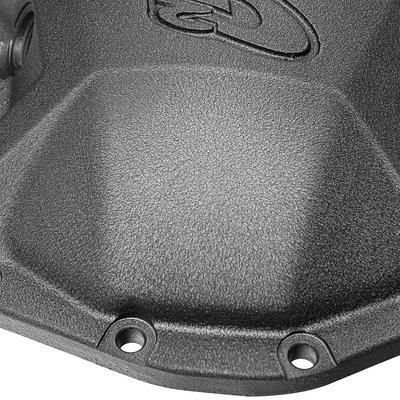

The G2 Axle & Gear Hammer M186/Dana 30 Advantek Front Differential Cover (gray, part 40-2150G) is a gray nodular iron front cover for the Jeep JL Wrangler and JT Gladiator, with extra oil capacity.

G2 designed the Hammer covers for the front Dana 30, Dana 35 and Dana 44 axles of these two Jeeps. The cover is cast from ductile nodular iron, the same material used for drag racing differential housings. Its wall runs 7/16 to 1/2 inch thick, and the cross-section reaches up to 1 inch around the bolt ring.

A Hammer cover is built for trail use, where a stamped cover can deform after a rock strike and open a leak. The ramp profile slides over obstacles instead of catching on them, and the pockets protect the bolt heads, which are most exposed to damage. The gray powder coat distinguishes this version from the bronze covers in the same family.

Key features

  • Nodular iron, the material drag racing differential housings are cast from
  • Walls 7/16 to 1/2 inch thick
  • Ramp profile that slides over rocks

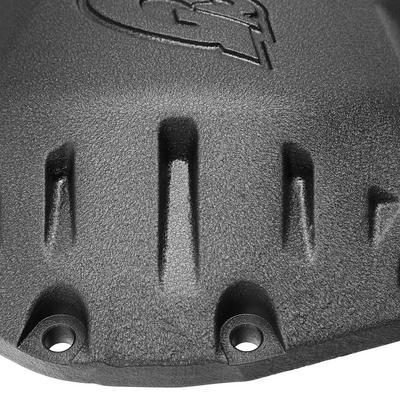

  • Pockets that protect the bolt heads from trail damage
  • Extra oil capacity
  • Powder coat finish

Extra oil and fill checks

This cover offers extra oil capacity, which means the fill procedure takes more care than a standard cover. Fill to the level your axle needs with the vehicle level, and check that the oil sits at the edge of the fill hole. Extra fluid can take longer to settle, so pour slowly and recheck after a short drive. A stable fluid level keeps the gears and bearings in their designed operating range.

Extra capacity also changes how you watch for leaks. Look at the cover edge and the bolt heads after the first trail outing, and wipe the cover clean so a fresh seep is easy to spot. Use the magnetized plug to check for metal flakes during fluid changes, since flakes can point to gear wear before a failure.

  • Fill slowly and recheck after a short drive
  • Wipe the cover clean to spot fresh seeps
  • Check for metal flakes at each fluid change

Specifications

Brand G2 Axle and Gear
Part number 40-2150G
Material Nodular iron
Finish Gray powder coat
Axle location Front
Axle type M186/Dana 30 Advantek
Oil capacity Extra
Wall thickness 7/16 to 1/2 inch

Vehicle fitment

The cover is for the Jeep JL Wrangler and JT Gladiator. That covers the 2018 to 2026 Wrangler JL range and the 2020 to 2026 Gladiator range, on the front axle.

Close vehicles such as the Wrangler JK and TJ are not covered. Make sure the year, model and trim match before buying.

Installation notes

G2 names front Dana 30, Dana 35 and Dana 44 axles for these covers, so confirm the front axle before fitting.

What’s included

A gray nodular iron front differential cover.

Not included: Gear oil.

Fitment

VehicleYearsTrims
Jeep Gladiator likely fits2020–2026All
Jeep Wrangler (JL) likely fits2018–2026All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does 40-2150G fit a 2021 Jeep Wrangler JL?

Yes. The cover is for JL Wrangler models, which run from 2018 to 2026. Check your year, model and trim before buying.

Does it fit a Gladiator?

Yes. The cover fits the JT Gladiator, which falls in the 2020 to 2026 range. Check your year, model and trim before buying, and confirm the cover goes on a front axle.

How thick is the cover?

The walls run 7/16 to 1/2 inch thick, which makes the cover a sturdier alternative to a thin factory cover. Thickness at the bolt ring reaches up to 1 inch.

What is it made from?

Nodular iron, the same ductile material used for drag racing differential housings. That material gives the cover its toughness against rock strikes and trail impacts, while keeping the casting sturdy under load.

How do I know if my front axle needs a cover upgrade?

Look for dents or bulges in the stock cover, oil seepage at the cover edge, and scrapes on the lower third from rock contact. Any of these suggest the cover is worn or at risk, and a tougher cover can reduce the chance of a leak on the trail.

Does extra oil capacity need a different fill procedure?

Fill to the level your axle needs, checking with the vehicle level so the oil sits at the fill hole edge. Extra capacity can take longer to settle, so pour slowly and recheck after a short drive. Check for seeps after the first trail outing.
