Full Flow Swivel Hose End 90 Deg. Swivel Pipe Thread Hose End

Russell Performance

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 90 degree swivel, -06AN size
  • 1/8 in NPT pipe thread
  • Lightweight aluminum body
  • 37 degree angled sealing surface, O-ring supplied

Description

Overview

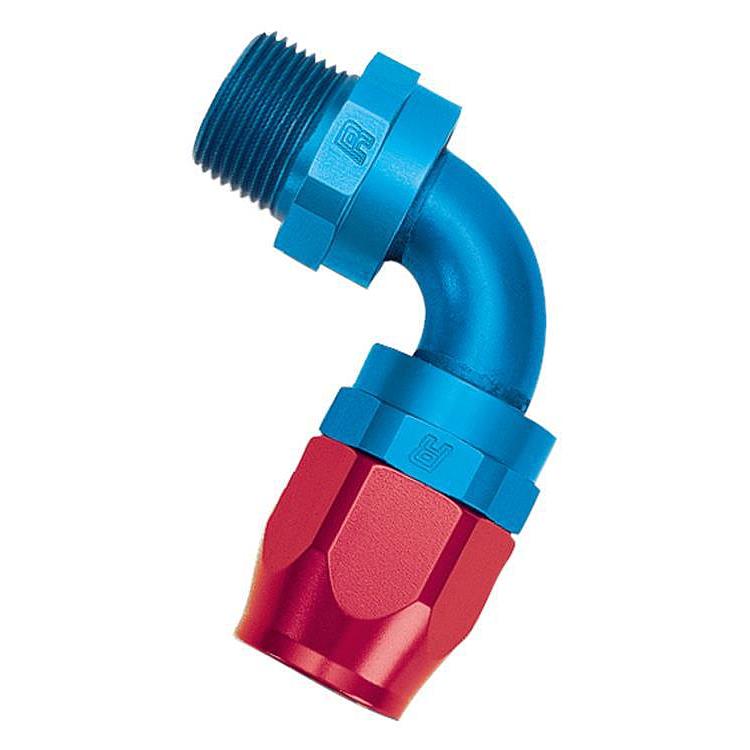

The Russell Performance full flow swivel hose end, part number 612170, is a 90 degree swivel fitting in -06AN size with 1/8 in NPT pipe thread. It is made of lightweight aluminum and is supplied with an O-ring.

The hose end has a unique taper design with a 37 degree angled sealing surface for a positive anti-leak seal. The ends are completely reusable and interchangeable with many manufacturers’ ends.

Key features

  • 90 degree swivel design
  • 37 degree angled sealing surface
  • Lightweight aluminum
  • Corrosion resistant finish
  • Completely reusable
  • Interchangeable with many manufacturers’ ends
  • O-ring supplied

Sealing and reuse

Swivel hose ends seal through metal contact between the fitting’s tapered face and the mating port or fitting, so the surfaces need to be clean and undamaged. Wipe the threads and sealing surface before assembly, and check for nicks or scratches that could let fluid escape. A fitting that is cross-threaded or over-tightened can leak even when the parts are otherwise sound.

Because this end is reusable, you can take it apart to reposition the hose, but inspect the O-ring each time. Replace the O-ring if it looks flattened, cut or hardened. Use a wrench on the fitting body rather than the swivel nut when tightening, so the hose connection is not stressed. Pressure test the line after assembly and check for seepage before relying on it.

Specifications

Brand Russell Performance
Part number 612170
UPC 70000539162
Size -06AN
Pipe thread 1/8 in NPT
Swivel angle 90 degree
Sealing surface 37 degree angled
Material Lightweight aluminum
Color Red/Blue
Included O-ring

Vehicle fitment

It is a fitting, so match its -06AN size and 1/8 in NPT thread to your hose and port.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Confirm the 1/8 in NPT thread matches the port before assembly. Keep the supplied O-ring in place when connecting the end.

What’s included

The swivel hose end with its O-ring.

Not included: the hose and the mating fitting or port.

SKU: RUS612170 Category:

Specification

Shipping weight 1.00 lbs
Package dimensions 3.00 × 3.00 × 3.00 in
brands

Questions & Answers

What is Russell Performance part 612170?

It is a full flow swivel hose end with a 90 degree swivel, -06AN size and 1/8 in NPT pipe thread. It is made of lightweight aluminum and includes an O-ring.

Is an O-ring included?

Yes, the hose end is supplied with an O-ring. Check it is seated properly when connecting the end to its mating port.

Does this hose end fit a specific vehicle?

No vehicles are listed. It is a hose end fitting, so match its -06AN size and 1/8 in NPT thread to your hose and port rather than a vehicle model.

Is the hose included with this fitting?

No, the hose and mating fitting are not included with the hose end. Plan on sourcing a hose and a mating fitting that match -06AN.

How do I avoid leaks when reconnecting a reusable hose end?

Start by cleaning both sealing surfaces and confirming the threads are undamaged. Thread the fitting by hand first to avoid cross-threading, then tighten to a snug seal. Check for leaks at low pressure before running the system.
