Blue Torch Fabworks Most Dicult Gusset – BTF03043

Blue Torch Fabworks

Shop Blue Torch Fabworks Tube Fitting on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

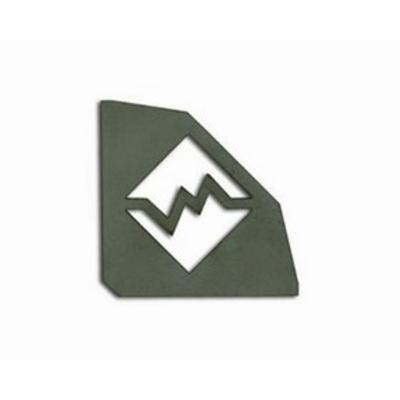

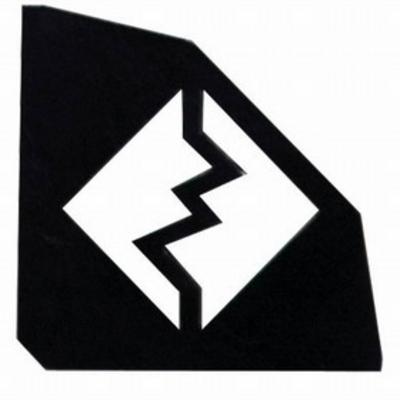

  • Blue Torch Fabworks BTFBTF03043 single steel gusset
  • Cut from high-strength steel plate with a square edge
  • Approximately 3 wide x 3 tall x 3/16 thick
  • Edges can be ground for slightly more acute or obtuse angles
  • Universal fit for any tube diameter

Description

Overview

The Blue Torch Fabworks BTFBTF03043 is a single steel gusset for cage design and reinforcement work. It is cut from high-strength steel plate and measures approximately 3 wide x 3 tall x 3/16 thick with a square edge. It is a universal gusset that fits any tube diameter, so it is not tied to a particular vehicle.

Key features

  • Cut from high-strength steel plate
  • Square edge
  • Edges can be ground to work in slightly more acute or obtuse angles
  • Suited to cage designs and suspension or bumper reinforcement
  • Sold as a single piece for any tube diameter

Joint geometry and welding

A gusset spreads load across a joint instead of letting a single weld carry it all. In a roll cage or bracket, a triangular plate tied into two tubes stiffens the corner so the tubes resist folding under a hard impact or twisting load. Before cutting anything, mock up the joint, measure the angle between the tubes, and decide how much of the plate edge needs grinding to seat tight.

Weld quality matters as much as the plate. Tack the gusset in place, check tube alignment from two directions, then finish the welds in short passes to limit distortion. Clean paint, oil and mill scale from the steel first, and run welds along both edges of the plate so the load has a clear path through the joint.

  • Check tube wall thickness before choosing the weld size
  • Grind edges only as needed for a tight fit
  • Inspect welds for cracks after hard use or rock strikes

Specifications

Brand Blue Torch Fabworks
Part number BTFBTF03043
Type Gusset
Sold as Single
Tube diameter Any
Dimensions Approximately 3 wide x 3 tall x 3/16 thick
Edge Square
Material High-strength steel plate

Vehicle fitment

This gusset is universal and not vehicle-specific. Fit depends on the joint angles and tube diameter in your build, not on a year, make or model.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Dry-fit the gusset to your tube angles and grind the edges as needed before final welding.

What’s included

Sold as a single gusset.

Not included: the tubing or cage structure it reinforces.

Questions & Answers

What is the Blue Torch Fabworks BTFBTF03043 gusset?

It is a steel gusset sold as a single piece, cut from high-strength steel plate with a square edge. It measures approximately 3 wide x 3 tall x 3/16 thick and works with any tube diameter.

Can the gusset be ground to a different angle?

Yes. The edges can be ground on each side to work in slightly more acute or obtuse angles, which helps with tighter joint geometry in cage design or reinforcement work.

Is this gusset made for a specific vehicle?

No. It is a universal gusset used for cage design and suspension or bumper reinforcement. No vehicle year, make or model applies, since fit depends on the joint angles and tube diameter in your build.

Should the gusset be ground before welding?

Often, yes. Dry-fit it to the tube angles first, then remove only enough material to seat it tight against both tubes. Removing too much reduces contact area, so check the fit several times before the final weld.

How can I tell if a cage joint needs a gusset?

Look for flexing or cracked welds at corners where tubes meet, especially after hard landings or rock strikes. Adding a gusset at those joints is a common step, but the cage layout and tube sizes should still guide the final design.
