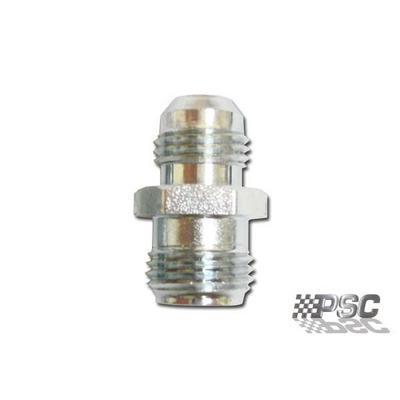

PSC Steering AN Adapter Fitting for Toyota 6AN to 16MM X 1.50 Inverted Flare – SF06

PSC Steering

Shop PSC Steering Box Fitting on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • PSC Steering AN adapter fitting, part number PSMSF06
  • Converts a 16MM x 1.50 inverted flare port to a 6AN connection
  • Used on the high pressure side port of OEM Toyota steering gearboxes
  • Vehicle fitment not listed by year or model; check your port

Description

Overview

The PSC Steering AN Adapter Fitting, part number PSMSF06, adapts a 16MM x 1.50 inverted flare port to a 6AN connection. It is used on the high pressure side port of OEM Toyota steering gearboxes.

AN adapter fittings let a hose or line with an AN fitting connect to a port with a different thread. Here the port is metric 16MM x 1.50 and the connection is 6AN. Check the gearbox port before choosing it, and confirm the year and model of your vehicle.

Key features

  • Adapts the Toyota steering gearbox high pressure side port
  • Converts to a 6AN connection
  • Port size 16MM x 1.50 inverted flare
  • Part number PSMSF06 from PSC Steering

Matching threads and flares

Metric and AN fittings look similar but use different thread forms and sealing angles, so a mismatch is a common cause of leaks. An inverted flare seals against a matching cone in the port, so the flare angle and thread pitch must match exactly. Before buying, measure the port and confirm its thread size, then compare it with the adapter’s port side.

Adapters sit between two parts, so each joint is a possible leak point. Avoid forcing a fitting that does not start easily, and only use sealant where the fitting design calls for it. Check the adapter threads for damage, and replace it if the flare is cracked or the cone is worn. Inspect the steering system after the first drive.

Specifications

Brand PSC Steering
Part number PSMSF06
Connection 6AN
Port 16MM x 1.50 inverted flare
Application High pressure side port on OEM Toyota steering gearboxes

Vehicle fitment

It is used on OEM Toyota steering gearboxes. Confirm the port on your gearbox matches the 16MM x 1.50 inverted flare thread before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Check that the port thread and flare match before tightening, since a mismatched metric port will not seal properly.

What’s included

The adapter fitting itself.

Not included: Hoses, lines and steering gearbox components are not included.

Questions & Answers

What is the PSC Steering PSMSF06 fitting?

It is an AN adapter fitting from PSC Steering, part number PSMSF06, that adapts a 16MM x 1.50 inverted flare port to a 6AN connection.

Which Toyota vehicles does it fit?

Confirm your vehicle's year, model and chassis code before ordering. It is intended for the high pressure side port on OEM Toyota steering gearboxes, so check that port on your gearbox first.

What is the connection size on the other side?

The other side is a 6AN connection, and the fitting's port side is 16MM x 1.50 inverted flare, so measure your port before ordering.

What should I check before tightening an inverted flare fitting?

Confirm the thread size and flare match the port, and that the fitting starts by hand without cross-threading. Clean the flare and the port cone so no debris can cause a leak. Tighten to a snug seal and check the joint for leaks after a short run.
