Overview

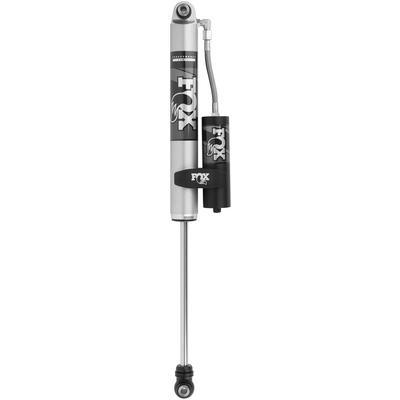

The FOX Performance Series 2.0 Reservoir Smooth Body Shock Absorber, part number FOX985-24-228, is a rear reservoir shock for the 2020–2026 Jeep Gladiator. It is a monotube design with an external reservoir, and it comes with a billet reservoir clamp.
The reservoir adds oil and nitrogen capacity, and the aluminum body is clear anodized to shed heat. FOX builds the damping around a high flow piston and valving matched to the application, so the shock is meant to handle both street miles and rough trail.
A rear reservoir gives the Gladiator’s rear shock extra oil and nitrogen volume outside the body, which FOX says helps the damping stay consistent through repeated hard use. The reservoir is held by the included billet clamp, so the mounting hardware is part of the package. The aluminum body is clear anodized and metal-impacted for heat dissipation.
On a Gladiator, the rear shocks carry the load of the bed and whatever is in it. A reservoir layout is useful when the truck is driven over long, rough ground because it reduces how much the shock heats and aerates. The eyelet mounts at both ends should be checked against the existing shock, along with the 2.0 in body diameter.
Key features
- External reservoir for added oil and nitrogen capacity.
- Billet reservoir clamp included.
- Clear anodized, metal-impacted aluminum body.
- High flow damping piston with application-specific valving.
- Eyelet mounts on a 2.0 in body.
Rear shocks under load
On a Gladiator, the rear shocks carry the weight of the bed and anything in it, and that load changes with every trip. A rear reservoir shock adds oil and nitrogen capacity outside the body, which helps the damping stay steady when the rear is working hard for long periods. The external layout also keeps the body from heating as quickly during repeated hard use.
Because the rear shocks work with the coil springs and the axle, they are best replaced in pairs so both sides control the truck the same way. Check the eyelet bushings at both ends for play, and look for oil on the body or reservoir hose. If the rear sags on one side or bounces after bumps, the shock is likely worn, and the springs and bump stops should be inspected at the same time.
Specifications
| Brand | FOX |
|---|---|
| Part number | FOX985-24-228 |
| Shock series | 2.0 Performance Series |
| Position | Rear |
| Top mount | Eyelet |
| Bottom mount | Eyelet |
| Body diameter | 2.0 in |
| Shock type | Reservoir |
| Charge | Gas charged |
Vehicle fitment
It fits the 2020–2026 Jeep Gladiator across its trims, including Altitude, High Altitude, Mojave, Overland, Rubicon, Sport and Willys. Wrangler models are not included.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One rear reservoir shock with the billet reservoir clamp.
