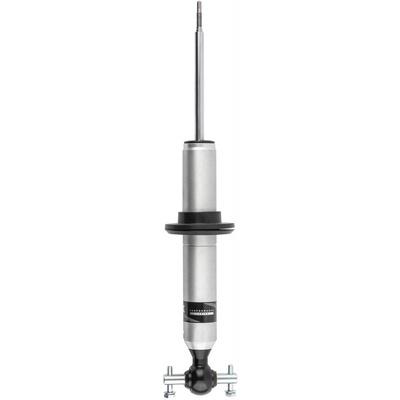

Fox Performance Series 2.0 Snap Ring Coil-Over IFP Shock – 985-62-009

FOX

$314.95In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 16, 2026 11:20 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front coilover shock for 2015–2020 Ford F-150 with bar pin lower mount
  • Reuses the stock spring and mounting hardware through a custom spring seat
  • Three preload settings for 0, 1 or 2 inches of lift
  • Bar pin lower mount, impact-extruded aluminum body
  • Part number FOX985-62-009

Description

Overview

Part number FOX985-62-009 is a front snap ring coilover IFP shock fitting 2015–2020 Ford F-150 trucks. It uses a bar pin lower mount in place of the eyelet on the FOX985-62-004 coilover, so the two parts are not interchangeable.

The custom-molded spring seat lets the stock spring and mounting hardware be reused. Inside, an internal floating piston separates the nitrogen gas from the shock oil, which FOX says avoids the mixing seen in standard twin-tube shocks and keeps the factory-tuned valving on track.

The bar pin lower mount is the main difference from the eyelet version of this coilover, so the lower attachment on your F-150 should be checked before ordering. The custom spring seat allows the stock spring to be reused, and the three preload settings let the owner choose 0, 1 or 2 inches of lift before installation.

The shock uses an internal floating piston and nitrogen gas charge to keep damping steady. The aluminum body is impact-extruded and light, and it resists rust, which suits the front of a pickup driven on rough roads.

Key features

  • Custom-molded spring seat that allows the stock spring to stay in use.
  • Three preload settings for 0, 1 or 2 inches of lift.
  • Internal floating piston keeps the nitrogen gas apart from the oil.
  • Impact-extruded aluminum body that is light and rust resistant.
  • Bar pin lower mount on a 2.0 in body.

Checking the lower mount

The bar pin lower mount is the detail that matters most on this coilover. It connects differently from an eyelet, so the bushing, the bracket and the pin should be checked for fit and wear before installation. A mismatch here is easy to miss until the shock is loaded, so confirm the lower attachment on the truck first.

On a pickup used on rough roads, the front coilover takes repeated impacts. Check the spring seat for cracks, the upper mount for play and the body for dents after rough trail use. Replace worn bushings in the same job, since a loose lower mount reduces control and speeds up wear on the new shock.

  • Confirm the lower mount type before ordering
  • Check the bar pin and bracket for wear
  • Inspect the spring seat after rough trail use
  • Replace worn upper and lower bushings during the job

Specifications

Brand FOX
Part number FOX985-62-009
Shock series 2.0 Performance Series
Position Front
Top mount OEM
Bottom mount Bar pin
Body diameter 2.0 in
Shock type Coilover, IFP
Charge Gas charged

Vehicle fitment

It fits the 2015–2020 Ford F-150 across its trim levels, including King Ranch, Platinum, Raptor, XL and XLT. Other F-150 years and Super Duty models are not included.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the stock spring is reused, the preload setting should be chosen for the intended lift before the shock is installed.

What’s included

One front coilover shock with the custom spring seat. The stock spring and mounting hardware are reused, not supplied.

Fitment

VehicleYearsTrims
Ford F-1502015–2020King Ranch, Lariat, Limited, Platinum, Police Responder, Raptor, SSV, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is FOX985-62-009 the same as FOX985-62-004?

No. This part has a bar pin lower mount, while FOX985-62-004 has an eyelet. The two are not interchangeable, so check the lower mount on your truck before ordering either one.

Does this coilover fit a 2021 F-150?

No. The fitment listed is for the 2015 through 2020 Ford F-150. Newer years are not included, so confirm your model year before ordering, since the mounts may differ on later trucks.

Do I need a new spring?

No. The custom spring seat is made for the stock spring and mounting hardware, so both can be reused. A replacement spring is not part of this kit, so check the package contents against your installation before starting.

What lift settings are available?

There are three preload settings for 0, 1 or 2 inches of lift. Select the setting that matches your planned lift before installing the shock, since the preload controls the height it gives.

How do I tell if a front coilover needs replacing?

Look for oil on the shock body, a sagging or bouncy front end, knocking over bumps and uneven tire wear. Inspect the upper and lower mounts at regular service intervals. Replace a coilover that leaks or no longer controls the front end.
