Overview

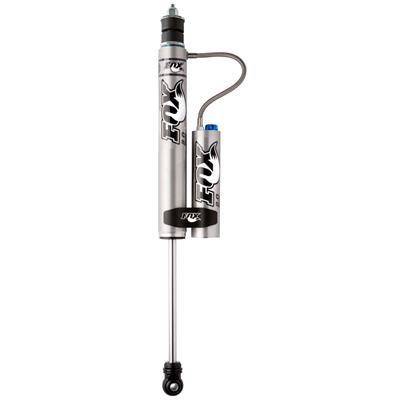

The FOX part FOX985-24-164 is a front Performance Series 2.0 reservoir shock for the 2017 to 2022 Ford F-250 and F-350 Super Duty. It fits King Ranch, Lariat, Limited, Platinum, XL and XLT models of both trucks, with a stem top upper mount and an eyelet lower mount.
The shock has a clear anodized aluminum body, which is designed to shed heat. The external reservoir increases oil and nitrogen capacity, and the design gives a race-style look.
The black anodized billet reservoir clamp and related hardware are CNC machined from 6061-T6 aluminum. The high flow damping piston uses application specific valving for steady ride quality on rough roads.
It has a monotube reservoir design with a gas charge.
Key features
- Front position
- Stem top upper mount and eyelet lower mount
- 2.0 inch body diameter
- External reservoir with billet clamp included
- Clear anodized aluminum body.
- High flow damping piston
Mounting a front reservoir shock
A front shock works with the steering geometry and the upper control arm, so its mounting points need to line up with the existing hardware before it is bolted in. A stem top mount and an eyelet lower mount are different designs, and the mounts on the original shock show which bushings, bolts or brackets can be reused. Heavy-duty trucks often carry more weight on the front axle when towing or carrying a plow, so a worn front shock can feel loose under those loads.
Front shocks are often replaced in pairs so both sides have matched damping. Check the upper mount bushing and the lower eyelet bushing for cracks or looseness before reinstalling. After the first few drives, re-check the mounting bolts and the reservoir clamp, and make sure the hose does not rub against the frame or steering components.
- Compare both mounts with the original shock
- Replace worn bushings during the install
- Recheck the clamp and hose after the first drives
Specifications
| Brand | FOX |
|---|---|
| Part number | FOX985-24-164 |
| Series | 2.0 Performance Series |
| Position | Front |
| Shock type | Monotube reservoir |
| Top mount | Stem top |
| Bottom mount | Eyelet |
| Body diameter | 2.0 inches |
| Charge | Gas charged |
| Reservoir clamp | Billet, included |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2017 to 2022 Ford F-250 Super Duty and F-350 Super Duty in King Ranch, Lariat, Limited, Platinum, XL and XLT models. Confirm your vehicle’s year, model and trim before ordering.
Only the 2017 to 2022 Super Duty models are covered by the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The stem top and eyelet mounts differ, so confirm both against the original front shock. The billet clamp is included, so plan the reservoir position before fitting. Work on a securely supported vehicle.
What’s included
One front reservoir shock with billet reservoir clamp.
