Overview

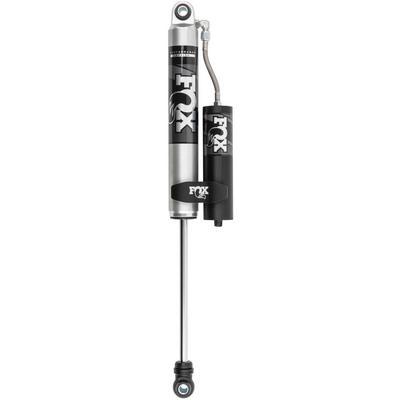

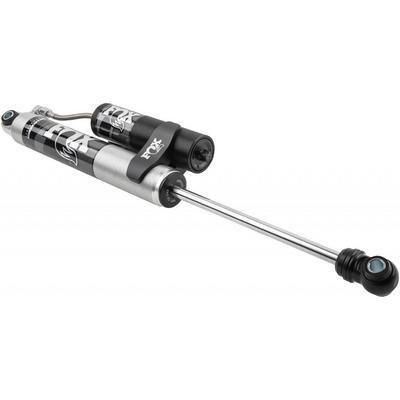

The FOX Performance Series 2.0 Reservoir Smooth Body Shock, part number FOX985-24-245, is a rear shock with an external reservoir for the 2020–2026 Chevrolet Silverado 2500 HD and 3500 HD and GMC Sierra 2500 HD and 3500 HD. It has eyelet mounts and a 2.0 in body.
The reservoir gives the shock more oil and nitrogen volume than a body alone would hold. FOX also makes a point of the aluminum body, which is clear anodized and metal-impacted to dissipate heat faster than steel. The damping piston is high flow, with valving chosen for the application.

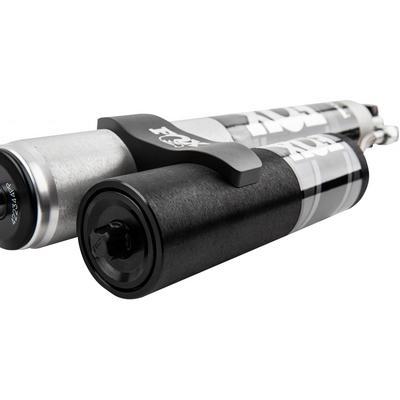

The reservoir clamp holds the external tank, so mount it where the reservoir clears the frame and body components. The aluminum body and reservoir tubing are clear anodized, which helps dissipate heat on heavy-duty trucks. Measure the clearance on your truck before you start the install.
Key features
- External reservoir with added oil and nitrogen volume.
- Clear anodized aluminum body that moves heat away faster than steel.

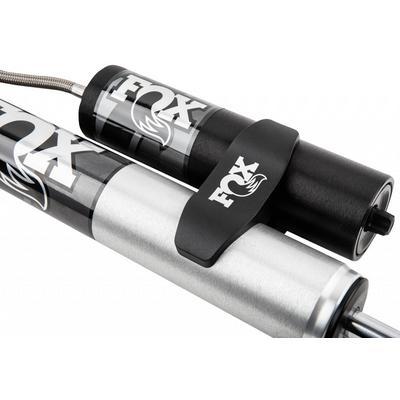

- Reservoir clamp is black anodized and CNC machined from 6061-T6 aluminum.
- High flow damping piston paired with application-specific valving.
- Eyelet top and bottom mounts on a 2.0 in body.
Choosing a rear reservoir shock
Rear reservoir shocks carry the load at the back of a heavy-duty truck, and the reservoir is what sets them apart from a shock with the tank built into the body. The extra oil and nitrogen volume gives the damping more room to work when the truck is towing, hauling or running over washboard roads.

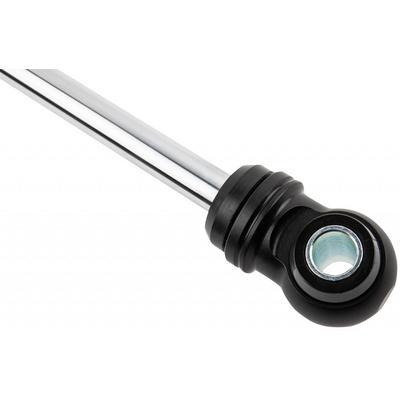

Over time the bushings at the eyelet ends wear and the shock loses control, so check the mounts for play as part of routine inspection. When you replace a shock, compare the body diameter, eyelet size and reservoir position with the old unit, and keep the reservoir line clear of exhaust and wiring. Pay attention to the reservoir clamp too; a loose clamp lets the tank knock against the frame, so tighten it and recheck after the first few drives. Replacing rear shocks in pairs keeps the ride even from side to side.
Specifications
| Brand | FOX |
|---|---|
| Part number | FOX985-24-245 |
| Shock series | 2.0 Performance Series |
| Position | Rear |
| Top mount | Eyelet |
| Bottom mount | Eyelet |
| Body diameter | 2.0 in |
| Shock type | Reservoir |
| Charge | Gas charged |
Vehicle fitment
It fits the 2020–2026 Chevrolet Silverado 2500 HD and 3500 HD, including High Country, LT, LTZ and WT, and the 2020–2026 GMC Sierra 2500 HD and 3500 HD, including AT4, Denali and SLT. Silverado and Sierra 1500 trucks do not fit.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One rear reservoir shock with its mounting clamp.
