Overview

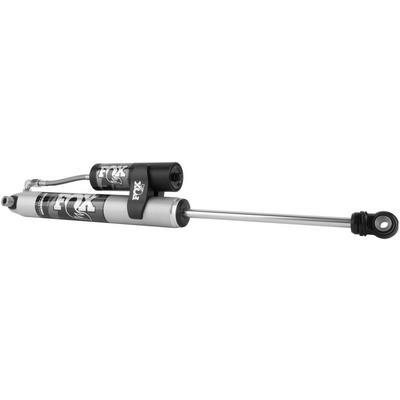

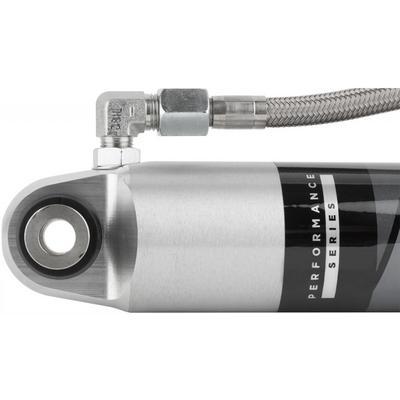

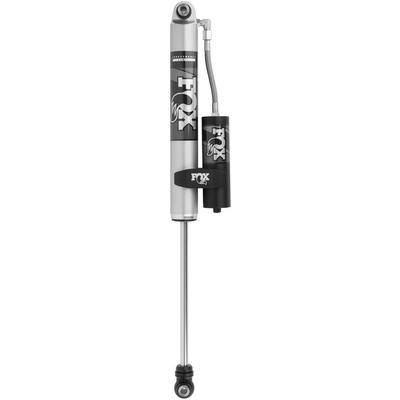

The FOX985-24-184 is a rear Performance Series 2.0 smooth body reservoir shock for the 2018 to 2026 Jeep Wrangler JL. It fits 2-door models and Unlimited 4-door models in the trims named, including Moab, Rubicon 392, Sahara 4xe and Willys variants.
It has eyelet top and bottom mounts, a 2.0 inch body diameter, a reservoir shock type and a gas charge. A billet reservoir clamp comes included.
The aluminum body dissipates heat faster than a conventional steel body, and the reservoir design is a bolt-on package with a race-style look.
The external reservoir adds oil and nitrogen capacity. The black anodized clamp and related components are CNC machined from 6061-T6 aluminum, and the high flow damping piston uses application-specific valving for ride quality on rough terrain.
Key features
- Rear position
- Eyelet top and bottom mounts
- 2.0 inch body diameter
- External reservoir with billet clamp included
- CNC machined 6061-T6 aluminum clamp and components.
- High flow damping piston.
Reservoir placement and clearance
An external reservoir gives the shock more room for oil and nitrogen, which helps it stay consistent when it works hard on rough terrain. The reservoir sits outside the body, so it needs its own space and a route for the hose. On a Wrangler JL, check the reservoir against the wheel, fender and frame at full compression and full droop before the first trail run.
A billet clamp holds the reservoir in place, and it should be tightened to the fastener specification and checked after the first few drives. Look for signs of rubbing on the hose or the canister, which can wear through over time. Rear shocks on this vehicle are often replaced as a pair, and new mounts and bushings help the new shocks stay aligned with the body.
- Check hose routing at full steering lock
- Inspect the clamp for looseness after rough trips
- Keep the reservoir clear of heat sources
Specifications
| Brand | FOX |
|---|---|
| Part number | FOX985-24-184 |
| Series | 2.0 Performance Series |
| Position | Rear |
| Shock type | Reservoir |
| Top mount | Eyelet |
| Bottom mount | Eyelet |
| Body diameter | 2.0 inches |
| Charge | Gas charged |
| Reservoir clamp | Billet, included |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2018 to 2026 Jeep Wrangler JL in 2-door models (80th Anniversary, Freedom, Islander, Rubicon, Sport, Sport S, Willys and Willys Sport) and Unlimited 4-door trims, plus High Altitude, Moab, Rubicon 392, Rubicon 4xe, Sahara 4xe and Sahara Altitude variants.
The list covers Wrangler JL models from 2018 to 2026 only. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The billet clamp is included, so plan the reservoir location. Compare the eyelet mounts and overall length with the original rear shock before fitting.
What’s included
One rear reservoir shock with billet clamp.
