Fabtech 4 Inch Performance Lift Kit with Dirt Logic Remote Reservoir Shocks – K1178DL

Fabtech

Shop Chevrolet Silverado 1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-to-7-inch IFS lift for 2019–2020 Chevrolet Silverado 1500 and 2019–2021 GMC Sierra 1500 trucks
  • Dirt Logic 2.5 stainless coilovers in front and Dirt Logic 2.25 shocks at the rear
  • Built for 2WD trucks; 5-inch rear block and U-bolt system
  • Free 5-year, 60,000-mile powertrain warranty.

Description

Overview

The Fabtech K1178DL is a 6-to-7-inch performance lift kit with Dirt Logic remote reservoir shocks for the 2019 and 2020 Chevrolet Silverado 1500 and the 2019 to 2021 GMC Sierra 1500. It is built for 2WD Chevy and GMC 1500 trucks.

The lift uses an independent front suspension design that provides good drive ability on and off road and zero bump steer through the suspension cycle. The stainless steel Dirt Logic 2.5 coilovers provide the 6 inches of front lift. Dirt Logic 2.25 shocks at the rear damp the ride, and a 5-inch block and U-bolt system lifts the back of the truck.

Key features

  • 6 inches of front lift from stainless steel Dirt Logic 2.5 coilovers
  • Zero bump steer through the suspension cycle.
  • Near stock track width keeps tires under the fenders
  • Steering knuckle geometry for a tight lock-to-lock turning radius
  • Heavy duty 1/4-inch steel crossmembers with OE style cam pins for adjustment
  • Dirt Logic 2.25 rear shocks
  • Free 5-year, 60,000-mile powertrain warranty.

Before you install

Independent front suspension lifts depend on control arms, ball joints, tie rods and steering linkage working together, so worn parts in that system affect both ride and steering feel. Before installation, inspect the existing ball joints, tie rod ends and bushings, and replace any that show play. Doing this while the front end is apart saves a second teardown and keeps the new geometry stable once the lift is settled.

Remote reservoir shocks move fluid to a separate canister, which helps them keep working under heavy use. The hoses need clear routing away from tires, brake lines, exhaust and moving suspension parts. Check hose length and clamp points before final tightening, and plan for the reservoirs to sit where they will not rub during full compression.

  • Inspect ball joints and tie rod ends before installing
  • Route remote reservoir hoses clear of tires and brake lines
  • Recheck hose clamps after the first few drives

Specifications

Brand Fabtech
Part number FABK1178DL
Lift height range 6 to 7 inches
Front shocks Dirt Logic 2.5 coilover, stainless steel
Rear shocks Dirt Logic 2.25
Rear lift component Block and U-bolt, 5 inches
Crossmembers 1/4-inch steel, OE style cam pins
Drive type 2WD
Warranty 5-year, 60,000-mile powertrain
Fitment type Direct fit

Vehicle fitment

It fits 2019 to 2020 Chevrolet Silverado 1500 models in the Custom, High Country, LT, LTZ, RST, SSV and WT versions, and 2019 to 2021 GMC Sierra 1500 models in the AT4, Base, Denali, Elevation, SLE and SLT versions.

The Silverado entries end at 2020 and the 2021 Silverado 1500 is not on the list. The Sierra entries run through 2021. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Replacing the independent front suspension components changes steering and suspension geometry, so a wheel alignment belongs after installation. The 5-inch rear block and U-bolts also need a driveline angle check once the rear is at its new height.

What’s included

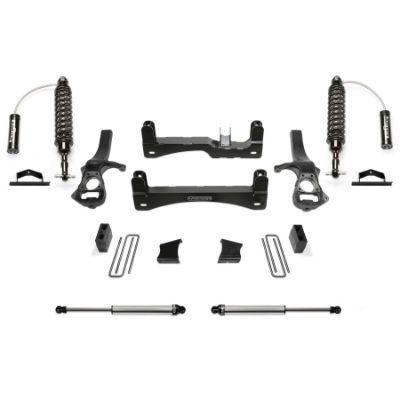

The kit includes the Dirt Logic 2.5 front coilovers, the Dirt Logic 2.25 rear shocks, the heavy duty 1/4-inch steel crossmembers and the 5-inch rear block and U-bolt system.

Not included: Tires and wheels are not included. Confirm tire sizes for your vehicle before ordering.

SKU: FABK1178DL Categories: ,

Fitment

VehicleYearsTrims
Chevrolet Silverado 15002019–2020Custom, High Country, LT, LTZ, RST, SSV, WT
GMC Sierra 15002019–2021AT4, Base, Denali, Elevation, SLE, SLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K1178DL fit a 2021 Chevrolet Silverado 1500?

No. The Silverado 1500 fit covers 2019 and 2020 only, so a 2021 Silverado is not included. The GMC Sierra 1500 is covered for 2021 under the same kit.

Is this kit for two-wheel drive or four-wheel drive trucks?

The kit is built for 2WD Chevy and GMC 1500 trucks. Confirm the drive type for your truck before ordering if it is a four-wheel-drive model.

What shocks come with the K1178DL?

The kit includes Dirt Logic 2.5 stainless coilovers at the front and Dirt Logic 2.25 shocks at the rear. Both shock types come with the kit, so no separate shock purchase is needed for the lift.

How can I tell when the shocks need replacing?

Look for oil on the shock body, reservoir or hose fittings, and listen for knocking over bumps. A shock that keeps bouncing after a dip usually needs replacing. Check the mounting bushings too, since worn bushings can feel like a failing shock.
