Fabtech 6″ Performance System with Front Dirt Logic 2.5 Resi Coilovers and Rear Dirt Logic 2.25 Shocks – K3088DL

Fabtech

Shop Ram 1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch performance system with remote reservoir Dirt Logic 2.5 coilovers for 2019–2021 Ram 1500
  • Rear steel coil spring spacers keep the factory springs
  • Designed for 35- and 37-inch tires on 20-inch wheels
  • Part number K3088DL

Description

Overview

The Fabtech K3088DL is a 6-inch performance system for the 2019–2021 Ram 1500, including the Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star, Rebel and Tradesman trims. It uses Dirt Logic 2.5 coilovers in front, with aluminum remote reservoirs, and Dirt Logic 2.25 shocks in the rear. The lift range is 6 to 7 inches.

The rear is lifted with steel coil spring spacers that work with the factory coil springs, which Fabtech says keeps the stock load capacity and a comfortable highway ride. The system includes extended length ductile iron steering knuckles that Fabtech says keep the factory electronic stability control working. Heavy duty 1/4-inch steel lower control arm crossmembers provide ground clearance, and an integrated front differential skid plate protects the drivetrain. The rear uses steel coil spring spacers that keep the factory coil springs and their stock load capacity in use, so the lift does not change how the springs carry weight.

Key features

  • Dirt Logic 2.5 coilovers with aluminum remote reservoirs
  • Remote reservoirs are designed to reduce shock fade.
  • Extended length ductile iron steering knuckles that keep factory stability control
  • 1/4-inch steel lower control arm crossmembers
  • Integrated front differential skid plate

Coil springs and spacers

Spacers raise the rear without replacing the factory coil springs, which keeps the original spring rate in use. Because the springs are doing the same job at a higher position, they can settle over time, especially under a heavy bed load. Periodic checks of spacer seating and bolt tightness help the rear hold its height and keep the ride steady.

Remote reservoir shocks add their own maintenance. The hose from the body to the reservoir should stay clear of tires and brackets, and its clamps should be checked after rough trail use. Dirt and road salt build up around the reservoir mount, so a rinse after winter driving keeps the connection clean.

  • Check spacer seating and bolt torque after installation
  • Look for coil spring sag over the first months
  • Inspect reservoir hoses for chafing and loose clamps

Specifications

Brand Fabtech
Part number K3088DL
Shock series Dirt Logic
Lift height range 6 to 7 inches
Front shocks Dirt Logic 2.5 coilovers with remote reservoirs
Rear shocks Dirt Logic 2.25
Rear lift component Steel coil spring spacers
Wheel and tire fit 35/12.50R20 or 37/12.50R20 tires on 20×9 wheels with 5-inch backspacing, with minor trimming
Fitment type Direct fit

Vehicle fitment

It fits the 2019–2021 Ram 1500 in the Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star, Rebel and Tradesman trims.

The list does not cover the Ram 1500 from 2018 or 2022 onward, or the Ram 2500 and 3500 trucks. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The system uses replacement steering knuckles and lower control arm crossmembers, so check the alignment and driveline angles after installation. The 37-inch setup needs minor trimming on the wheels.

What’s included

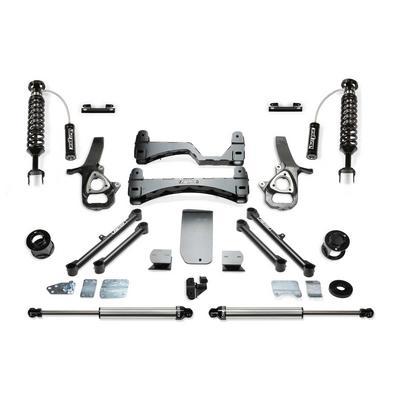

Front coilovers with remote reservoirs, replacement steering knuckles, steel crossmembers, the skid plate, the rear coil spring spacers and the rear Dirt Logic shocks.

SKU: FABK3088DL Categories: ,

Fitment

VehicleYearsTrims
Ram 15002019–2021Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star, Rebel, Tradesman

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K3088DL keep the factory coil springs?

Yes. The rear uses steel coil spring spacers that work with the factory coil springs, so the springs stay in place and add height.

Does it fit a 2020 Ram 1500 Laramie?

Yes. The 2019–2021 Ram 1500 Laramie is covered, which includes 2020 trucks. The Laramie Longhorn trim is also covered for those years.

What tire sizes does Fabtech list for this system?

The tire sizes are 35/12.50R20 and 37/12.50R20 on 20x9 wheels with 5-inch backspacing. Minor trimming may be needed for these tires.

Do remote reservoir shocks need more care than standard shocks?

They need the same routine checks plus a look at the reservoir hose and its clamp. Keep the hose clear of tire and body contact, and confirm the reservoir is secure after rough trail runs.
