Overview
The Fabtech K2132DL is a 6-inch 4-link lift with Dirt Logic SS shocks for the 2008–2015 Ford F-350 Super Duty. The arms replace the factory arms directly and remove the upper ball joint. A 1-inch ID stainless American Uniball fits the factory ball joint taper.
The 4340 heat-treated Uniball pin fits without spindle modification, so the factory parts can be reinstalled later. The chromoly tubing is designed to reduce flex compared with the stock arms, and built-in additional caster helps with alignment. The arms are designed to work with Dirt Logic 2.5 coilover shocks and allow more wheel travel. The kit fits factory aluminum suspension vehicles only.
Dirt Logic SS shocks are included with the 4-link arms.
Key features
- 6-inch lift, range 5 to 6.99 inches
- Upper ball joint eliminated by the arm design
- 1-inch ID stainless American Uniball
- 4340 heat-treated Uniball pin
- Chromoly tubing arms
- Dirt Logic SS shocks included
Ball joint and steering geometry
Removing the upper ball joint changes how the front wheels pivot, so the arms carry more of the steering geometry. Uniball joints wear over time and show up as clunks, wandering or uneven tire wear. When choosing an arm kit, consider how the truck will be used on the highway and off road, since heavier loads and frequent articulation put more stress on the joints.
Look at the pin, spindle and steering knuckle at each service. Grease fittings, dust boots and nut torque all affect how long a joint lasts. If the truck has had a leveling kit before, the caster may already be off, so an alignment after installation helps the new arms settle in and reduces tire scrub.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K2132DL |
| UPC | 674866096967 |
| Lift height | 6 inches (range 5 to 6.99 inches) |
| Suspension type | 4-link |
| Uniball | 1-inch ID stainless American |
| Tire and wheel fit | 295/70R17 on 17×8, 275/65R18 on 18×8, 285/55R20 on 20×9; 4 1/2-inch and 5-inch backspacing |
| Shocks | Dirt Logic SS shocks included |
Vehicle fitment
It fits the 2008–2015 Ford F-350 Super Duty, including the Cabela’s, FX4, Harley-Davidson, King Ranch, Lariat, Platinum, XL and XLT models.
Trucks with AutoRide shocks, all-wheel drive or standard cabs are excluded. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Check whether the truck has factory aluminum or steel suspension before installing, since this kit only suits the aluminum type. The OEM wheel and tire cannot be used, so wheels and tires must match the sizes in the tire and wheel fit specification.
What’s included

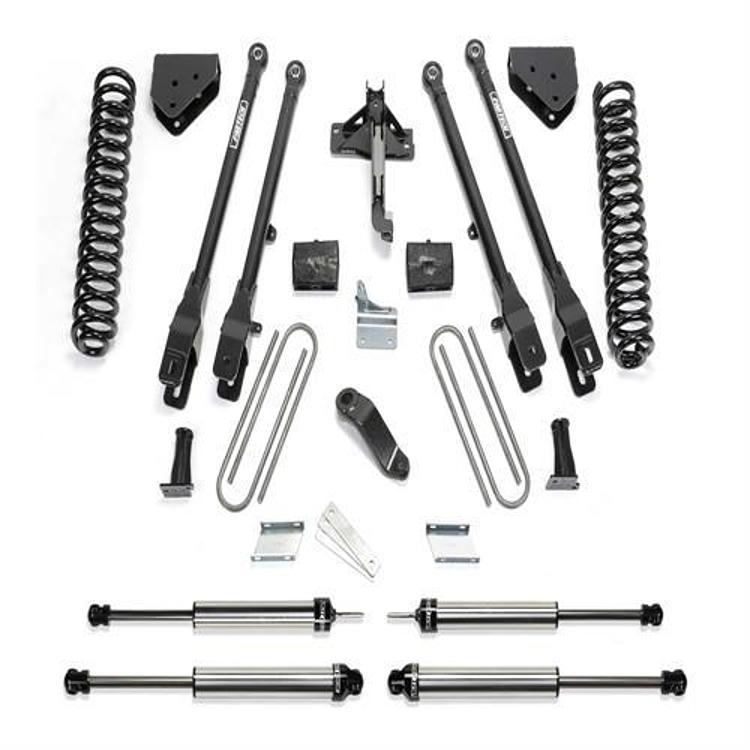

Four-link arms with Uniball pins, Dirt Logic SS shocks and the hardware for the kit.
