Overview
The Fabtech K2136DL is an 8-inch front coilover conversion for the 2011–2015 Ford F-250 Super Duty and the 2011–2015 Ford F-350 Super Duty. The lift height range is 7 inches and up, and shocks are included.
The upper coilover mounts are 1.75-inch diameter DOM tubing that replace the factory coil spring mounts, and they run across a wide section of the frame to spread impact loads. The lower mounts are 1/4-inch thick steel that attach to the axle housing and hold the Dirt Logic 4.0 coilover piggyback reservoir shocks. The conversion will not work with leveling or basic systems.
Key features
- 8-inch lift, range 7 inches and up
- 1.75-inch DOM upper coilover mounts
- 1/4-inch thick steel lower mounts
- Dirt Logic 4.0 coilover piggyback reservoir shocks
- Frame-spanning upper mount for impact load distribution
- Shocks included
Piggyback shock care
Piggyback reservoir shocks separate the damping body from the gas reservoir, which helps them run cooler on long descents and rough trails. The reservoir hose and its fittings should be checked regularly, since a loose or chafed hose can cause a loss of damping. Keep the hose routed clear of tires, brake lines and the frame edge.
Large-diameter upper mounts and frame-spanning mounts spread load, but the lower mounts on the axle housing still see the most stress. Inspect the welds and fasteners at the axle end after rough use, and look for any movement between the mount and the housing. Tight fasteners and clean mounting faces help keep the front stable.
A front setup this tall changes the geometry, so check the steering linkage, ball joints and tie rod ends at regular service. Brake lines and any cables near the front should be checked for stretch once the lift is complete. Re-check alignment after the first drives to catch any change in caster or toe.
- Check reservoir hose clearance from tires and frame
- Inspect lower mounts at the axle housing after rough use
- Re-tighten mounting fasteners after the first drives
- Look for leaks at shock seals and reservoir fittings
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K2136DL |
| UPC | 674866097001 |
| Lift height | 8 inches (range 7 inches and up) |
| Suspension type | Coilover conversion |
| Upper mounts | 1.75-inch DOM tubing |
| Lower mounts | 1/4-inch thick steel, attached to the axle housing |
| Shock type | Dirt Logic 4.0 piggyback reservoir coilover |
| Compatibility | Not for leveling or basic systems |
Vehicle fitment
It fits the 2011–2015 Ford F-250 Super Duty and the 2011–2015 Ford F-350 Super Duty.
The list covers the Super Duty trucks in 2011 through 2015 only. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The upper mounts replace the factory coil spring mounts, and the lower mounts attach to the axle housing. Because the kit will not work with leveling or basic systems, confirm the truck’s current front system before installing.
What’s included

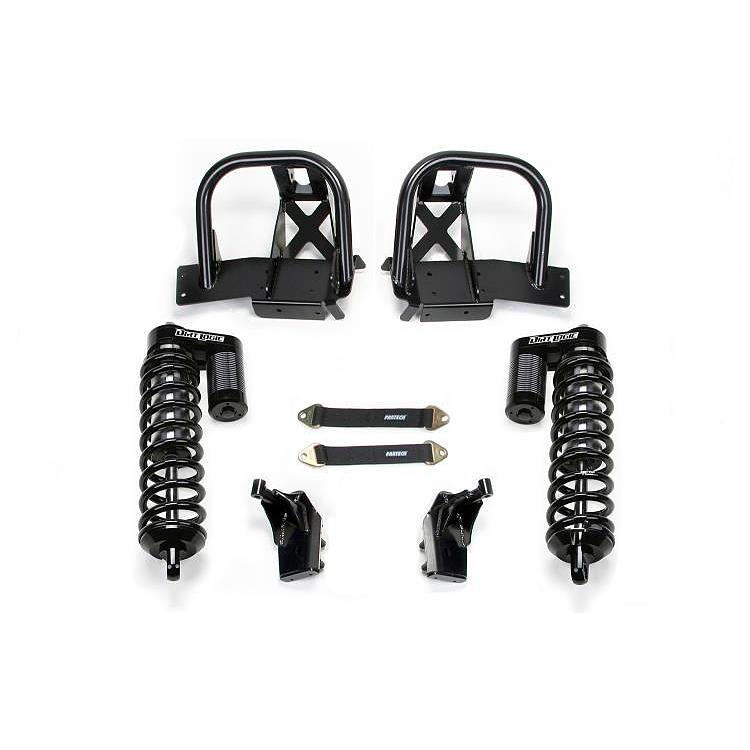

Upper coilover mounts, lower mounts attached to the axle housing and Dirt Logic 4.0 piggyback reservoir coilover shocks.
