Overview

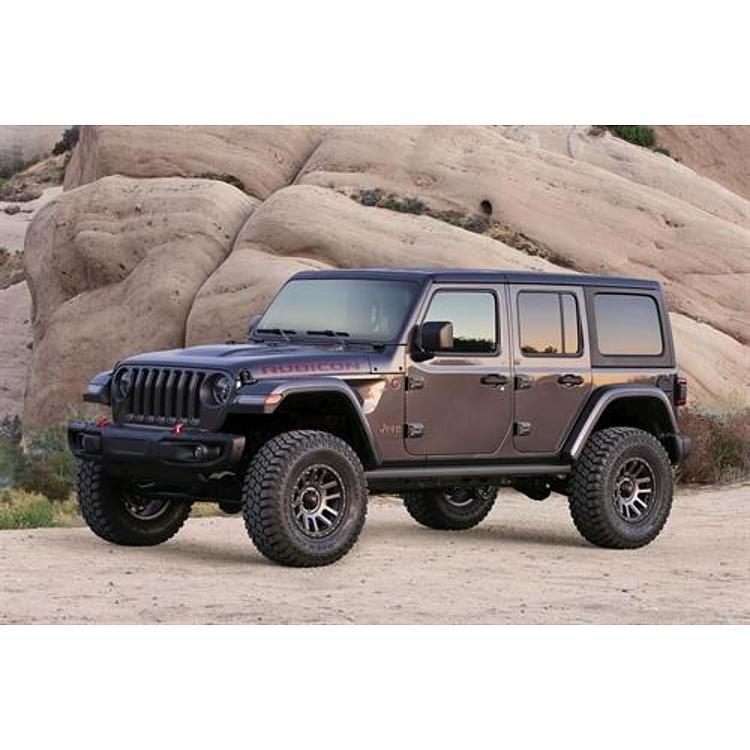

The Fabtech K4107DL is a 3 inch Sport system for the 2018 Jeep Wrangler JL Unlimited four-door. Unlike the spacer systems in the same line, it replaces the front and rear coil springs with American made dual rate coils and comes with Dirt Logic 2.25 non-reservoir shocks.
Dual rate coils give long suspension travel off road and a smooth ride on the highway. The soft first stage adds travel, and the firmer second stage handles payload and larger impacts at speed.
Key features
- Dual rate front and rear coil springs, made in the USA
- Dual rate springs are corner specific to the JL, which keeps the vehicle level side to side
- Dirt Logic 2.25 non-reservoir shocks included
- Four bump stop extensions that use the factory bump stops for cushioned compression
- Extensions keep the stock down travel, which limits driveline over cycling
- Extended front and rear sway bar links with urethane bushings
- Heavy-duty rear track bar bracket that re-centers the axle
Living with dual rate coils
Dual rate springs change their rate partway through compression. The soft first stage absorbs small bumps and gives the suspension its travel, while the firmer second stage supports weight and controls bigger hits. This makes the ride feel different from a single rate spring, especially when the truck is loaded or towed.
Check the coil springs for sag, cracks and corrosion after the first season of use, since the springs carry the weight of the vehicle. Bump stops and sway bar links work with the coils, so their bushings should be inspected for wear. Because the springs replace the factory coils, alignment and steering geometry should be checked after installation.
- Inspect coils for corrosion
- Check bump stop contact at full compression
- Recheck sway bar link bushings
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K4107DL |
| UPC | 674866106437 |
| Lift height range | 2.5 to 3 inches |
| Suspension type | Coil spring kit |
| Front shocks | Dirt Logic 2.25 non-reservoir |
| Springs | Dual rate coil springs, front and rear |
| Tire fit | 35 inch with minor trimming on standard fenders; 37 inch with cutting on high clearance fenders |
This system is built for long travel off road while riding smoothly on the highway. Dual rate coils make that balance possible.
Vehicle fitment
It fits the 2018 Jeep Wrangler JL Unlimited four-door models across the covered Unlimited trim levels. Two-door JL models are not covered.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Standard fenders need minor trimming for 35 inch tires, and high clearance fenders need cutting for 37 inch tires. The extended sway bar links are part of the install, and an alignment should follow.
What’s included

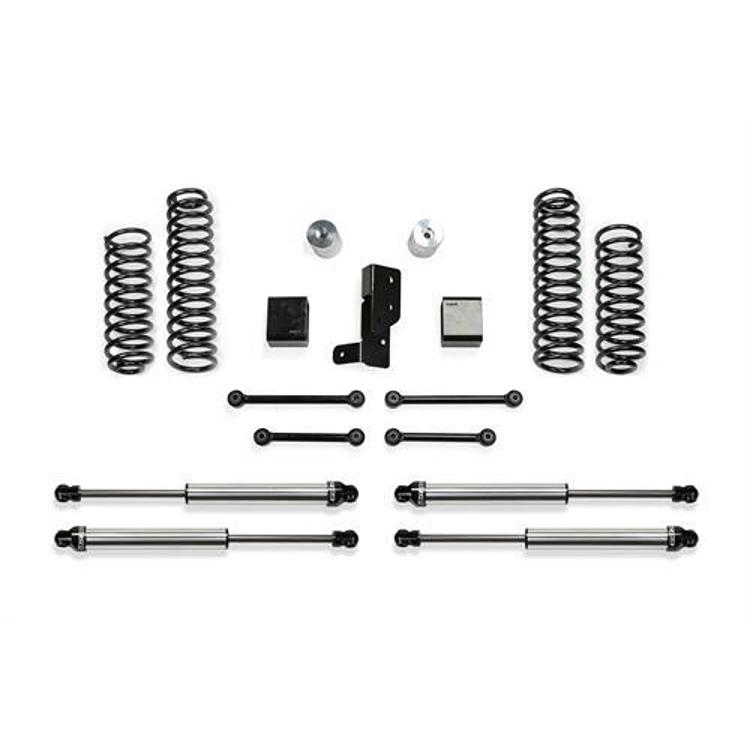

Included: front and rear dual rate coil springs, Dirt Logic 2.25 non-reservoir shocks, four bump stop extensions, extended sway bar links and the rear track bar bracket.
