Overview

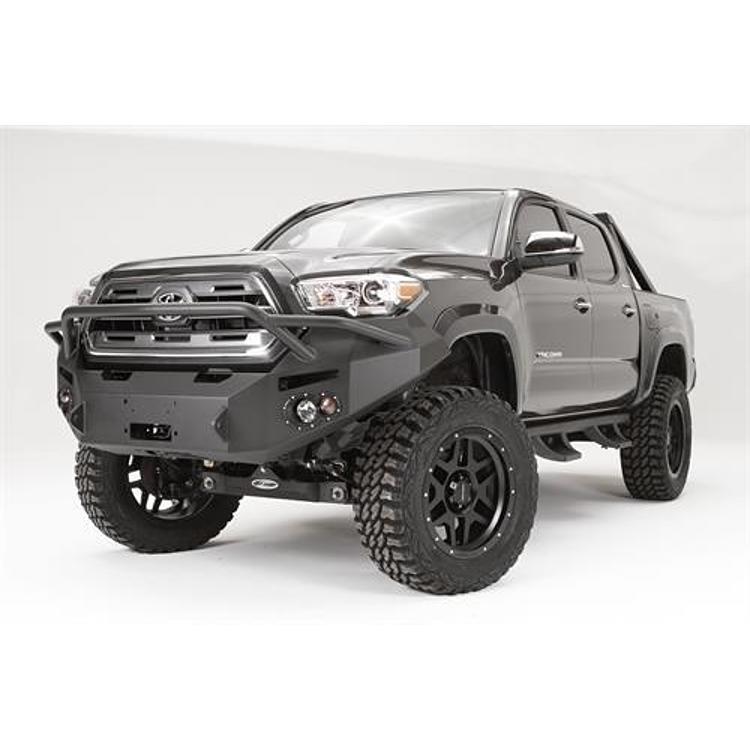

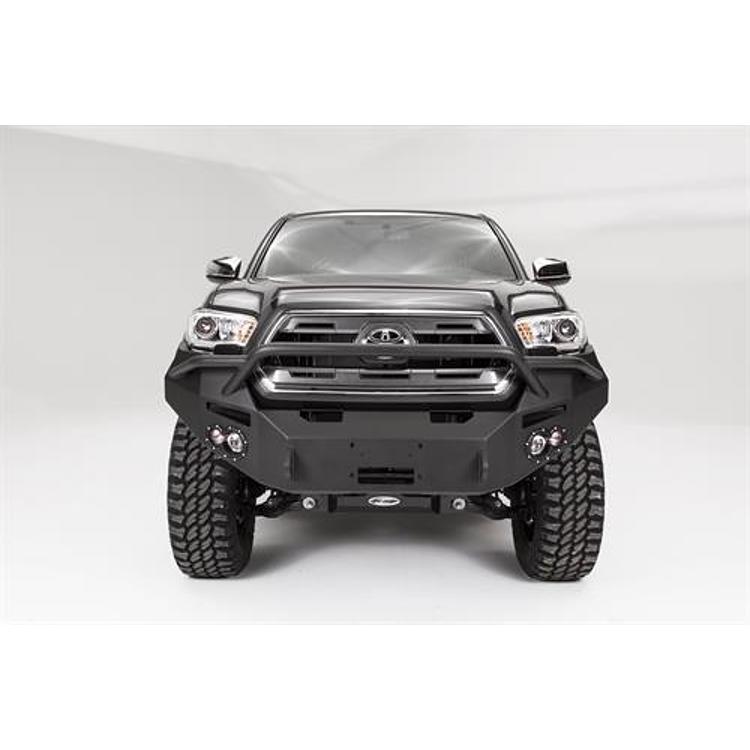

The Fab Fours TT16-B3652-1 is a front winch bumper with a pre-runner guard for the 2016 Toyota Tacoma, finished in black powder coat. It is designed for strength and durability, and it adds tire clearance so large tires are less likely to rub.
The winch mount takes a small frame winch rated up to 10,000 lb. Integrated fog and turn lights, 7/8″ D-ring mounts and a two-piece adjustable mounting system are part of the design. The same Tacoma bumper is also offered with a full guard or with no guard.
Key features
- Winch ready for a small frame winch up to 10,000 lb
- 7/8″ D-ring mounts
- Two-piece mounting system with adjustability for a custom fit
- Injection molded light housings with 90mm fog lights and 60mm turn indicator lights
- Added tire clearance to reduce rubbing
- 3/16″ steel with a 2 stage black powder coat
Winch setup and clearance
A winch on a front bumper changes how the truck carries weight. Mount only a winch that fits the bumper’s maximum winch rating, and use a fairlead and a rated recovery line sized for the load. Keep the winch wiring short, protected from heat and fastened clear of moving parts.
Front bumpers add weight ahead of the axle, so the springs, shocks, steering components and wheel alignment should be inspected after installation. Added tire room helps reduce rubbing, but tires still need to be checked for clearance at full steering lock. Fog lights and turn lights should be aimed on level ground once the bumper is set.
- Use a rated recovery line and fairlead
- Route winch wiring away from heat
- Aim fog lights after final mounting
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | TT16-B3652-1 |
| UPC | 5810111793 |
| Type | Front winch bumper with pre-runner guard |
| Material | Steel, 3/16″ thick |
| Finish | 2 stage black powder coat |
| Maximum winch | Small frame winch up to 10,000 lb |
| D-ring mounts | 7/8″ |
| Lights | 90mm fog lights and 60mm turn indicator lights |
| Weight | 220-250 lbs |
| Country of manufacture | USA |
Vehicle fitment
It is a direct fit for the 2016 Toyota Tacoma.
Other Tacoma model years are outside the scope of this part. Verify your year, model and trim before ordering.
Installation notes
The two-piece mounting system is adjustable, which lets the bumper be set for a custom fit on the truck. A winch is fitted separately within the 10,000 lb limit.
What’s included
- Front winch bumper with pre-runner guard
- Winch mount
- 7/8″ D-ring mounts
- 90mm fog lights and 60mm turn indicator lights
Not included: the winch.
