Overview

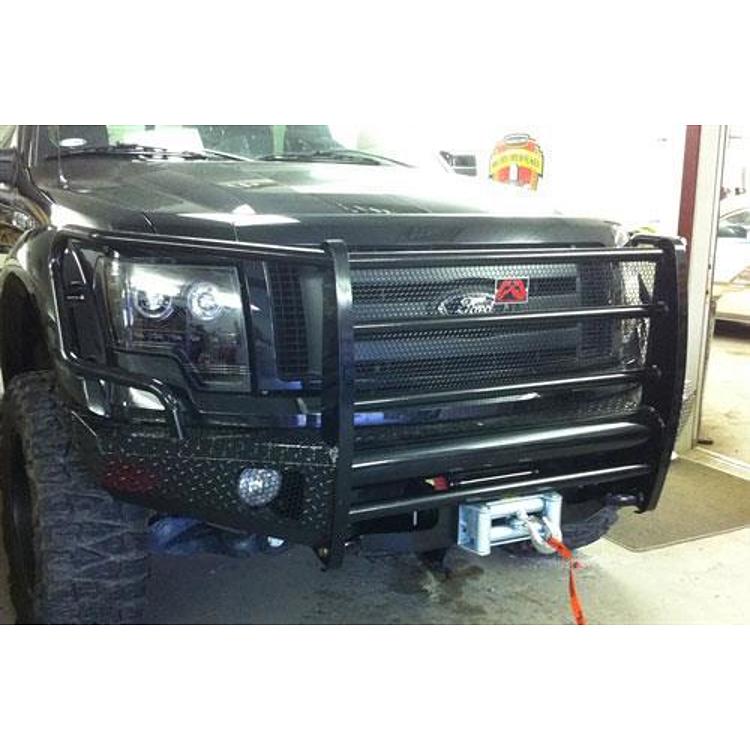

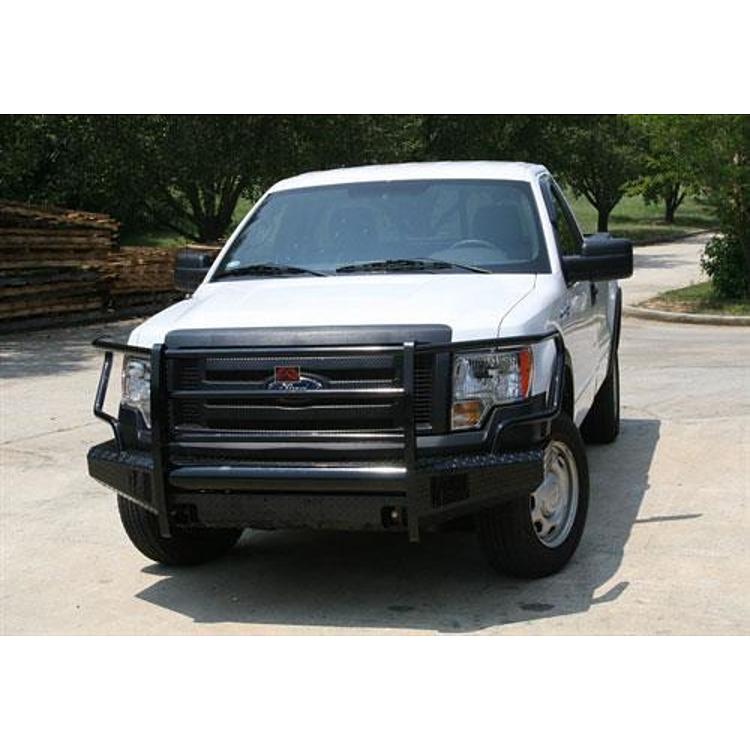

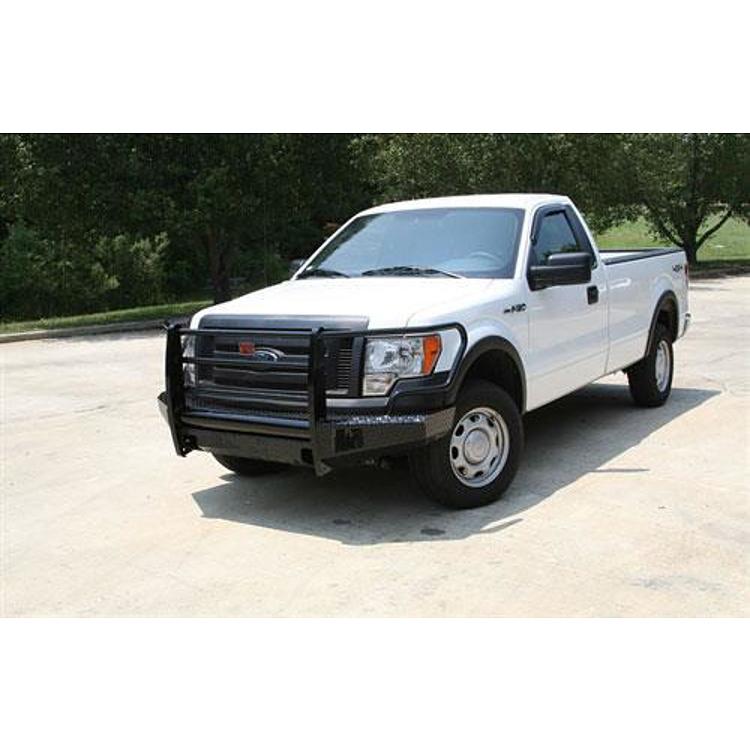

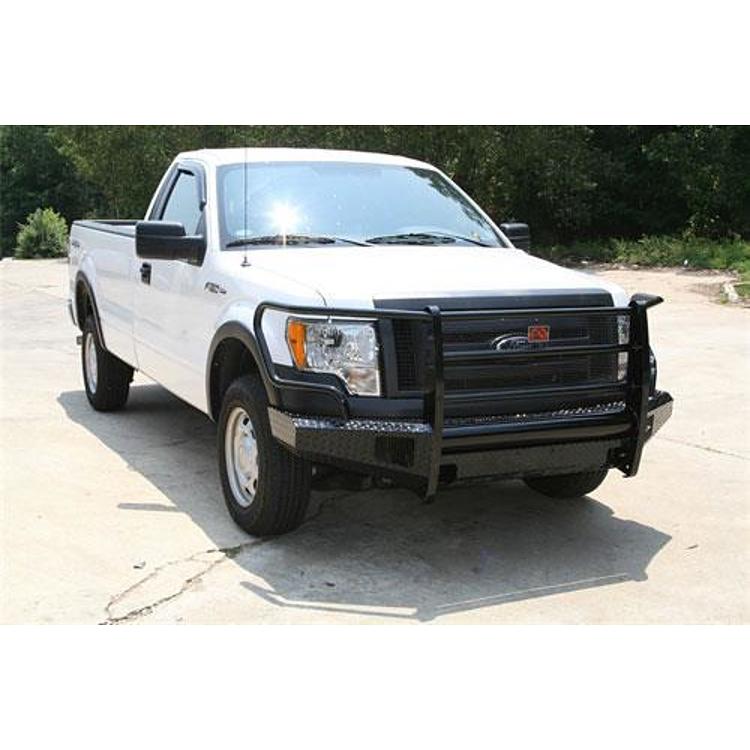

The Fab Fours FF09-K1960-1 is a full grille guard front ranch bumper with tow hooks for 2009 to 2014 Ford F-150 trucks, built of pipe and tread plate steel in gloss black powder coat.
Fab Fours gave its ranch bumper the styling it is known for in its heavy duty plate bumpers, with no vertical flanges and tapered edges, and matched the bumper to the body lines of each model of truck. Bolt-on tow hooks come with it, and the light mounts take the factory fog lights.
Key features
- Combination pipe and tread plate construction
- Gloss black powder coat; bare steel uses -B in place of -1
- Bolt-on tow hooks included
- Light mounts for the factory fog lights
- Full grille guard
- Optional bolt-on 1-inch D-ring mounts
- Tapered edges and no vertical flanges
- Made in the USA
Tow hooks and recovery use
Tow hooks on a ranch bumper are meant for pulling and light recovery work. Bolt-on hooks use the bumper’s mounting points, so make sure the bolts are tight and the hook is rated for the pull. Avoid side loads and sudden jerks, since they can stress the mounting points and the steel around them.
Gloss black finish shows scratches and chips more clearly than a matte finish, so plan to touch up spots early. If optional D-ring mounts are added later, check the hardware and spacing first so the new parts fit cleanly. Keep the grille area clear of mud and debris to help the truck’s cooling system work well.
- Use rated shackles and straps with tow hooks
- Touch up chips before rust spreads
- Inspect bolts after each trail trip
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | FF09-K1960-1 |
| UPC | 5810102555 |
| Type | Full guard front ranch bumper |
| Position | Front |
| Width | Full |
| Material | Steel |
| Construction | Pipe and tread plate |
| Finish | Gloss black powder coat |
| Fit type | Direct fit |
| Light mounts | Included (factory fog lights) |
| Winch mount | Not included |
| D-ring mounts | Optional, 1-inch |
Vehicle fitment
Fab Fours lists FF09-K1960-1 for the 2009 to 2014 Ford F-150.
The 2015 and newer F-150 generation does not appear on the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Tow hooks bolt on with the bumper. The 1-inch D-ring mounts, if wanted, are an optional bolt-on part, and the bumper has no winch mount.
What’s included
- Full grille guard front ranch bumper
- Bolt-on tow hooks
- Light mounts for the factory fog lights
Not included: The optional 1-inch D-ring mounts. A winch mount is not part of this bumper.
