Overview

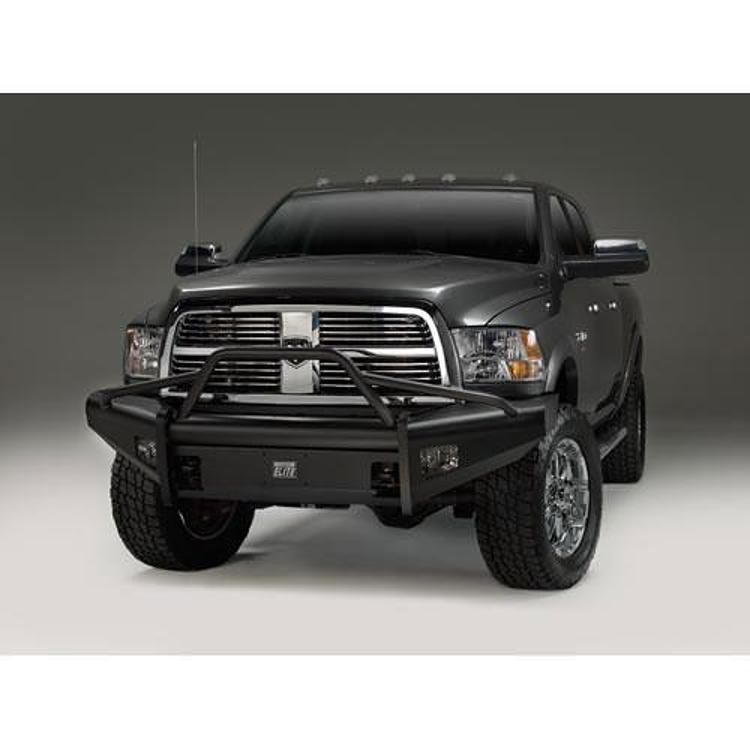

The Fab Fours DR09-K2462-1 is a pre-runner front ranch bumper with tow hooks for 2009 to 2013 Ram 1500 pickups, finished in black powder coat. The combination of pipe and tread plate steel gives the bumper a rugged look while the pre-runner guard protects the front end.
Fab Fours designed the ranch bumper line to follow the body lines of each truck it is made for. This version has no vertical flanges, tapered edges, bolt-on tow hooks and light mounts that accept the factory fog lights, so a Ram owner keeps the stock lighting layout.
Key features
- Combination pipe and tread plate construction in steel
- Black powder coat; a bare steel version uses -B in place of -1 in the part number
- Bolt-on tow hooks are included
- Light mounts for the factory fog lights
- Optional bolt-on winch mount for winches up to 12,000 lb
- Optional bolt-on 1-inch D-ring mounts
- Direct-fit, full-width front bumper
- Made in the USA.
Front bumper weight and winching
A front bumper with tow hooks and a winch mount adds weight at the nose, which changes steering feel and braking distance slightly. Keep any winch load within the rating of the mount and the bumper, and use a winch sized for the truck. A pre-runner guard also raises the chance of contact with rocks and brush, so check the lower front edge after each trail trip.
Light mounts for the factory fog lamps need the original lamp positions and wiring. Route the wiring away from the radiator fan and the hood latch. Winch wiring should run through a fused feed with a solid ground, and the battery should be checked for capacity before adding accessories.
- Check fog lamp connectors for corrosion
- Re-torque mount bolts after the first trips
- Route winch cable clear of the hood latch
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | DR09-K2462-1 |
| UPC | 5810104894 |
| Type | Pre-runner front ranch bumper |
| Position | Front |
| Width | Full |
| Material | Steel |
| Construction | Pipe and tread plate |
| Finish | Black powder coat |
| Fit type | Direct fit |
| Tow hooks | Included, bolt-on |
| Light mounts | Included (factory fog lights) |
| Winch mount | Optional, not included (up to 12,000 lb winches) |
| D-ring mounts | Optional, not included (1-inch) |
Vehicle fitment
It is a direct-fit part for the 2009 to 2010 Dodge Ram 1500 and the 2011 to 2013 Ram 1500.
The list covers the Ram 1500 only and stops at 2013; the Ram 2500 and 3500 and the 2014 and newer Ram 1500 are not on it. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Tow hooks bolt on, and the winch mount and D-ring mounts are separate bolt-on options. If you plan to run a winch, choose one rated for 12,000 lb or less.
What’s included
- Front ranch bumper in black powder coat
- Bolt-on tow hooks
- Light mounts for the factory fog lights
Not included: The optional winch mount and the optional 1-inch D-ring mounts, plus any winch.
