ES6000 Twin Tube Shock – 622504

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • ES6000 twin-tube shock, part number 622504, factory upper and lower mounts
  • Lengths are vehicle specific, so confirm fit before ordering.
  • Gas-charged design with 10-stage velocity-sensitive valving and a teflon rebound stop
  • Extended, collapsed and travel lengths are vehicle specific; non-adjustable

Description

Overview

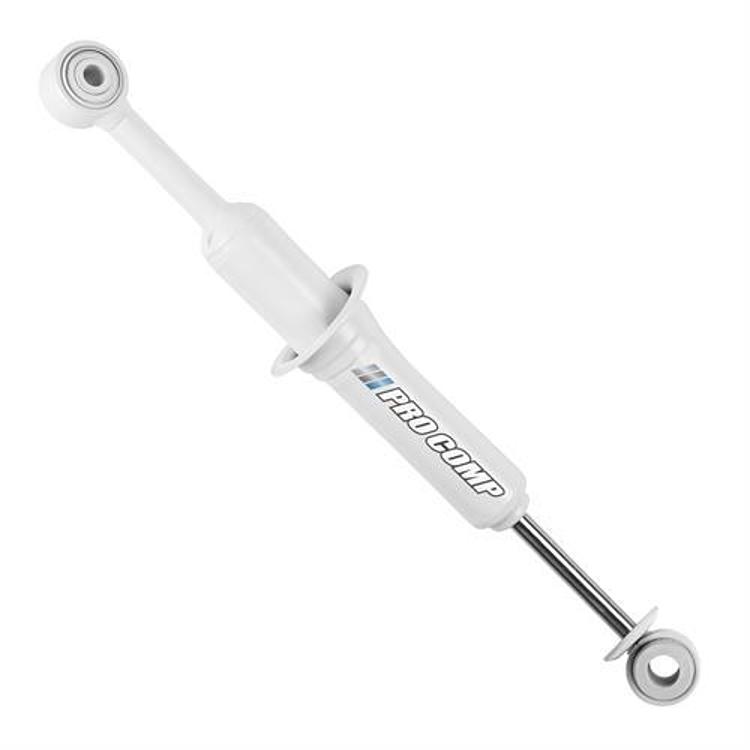

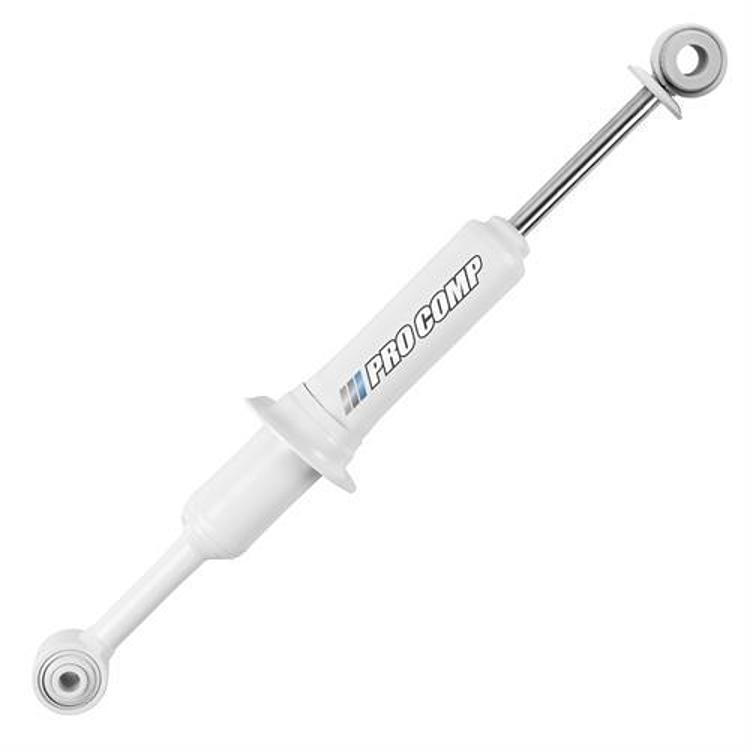

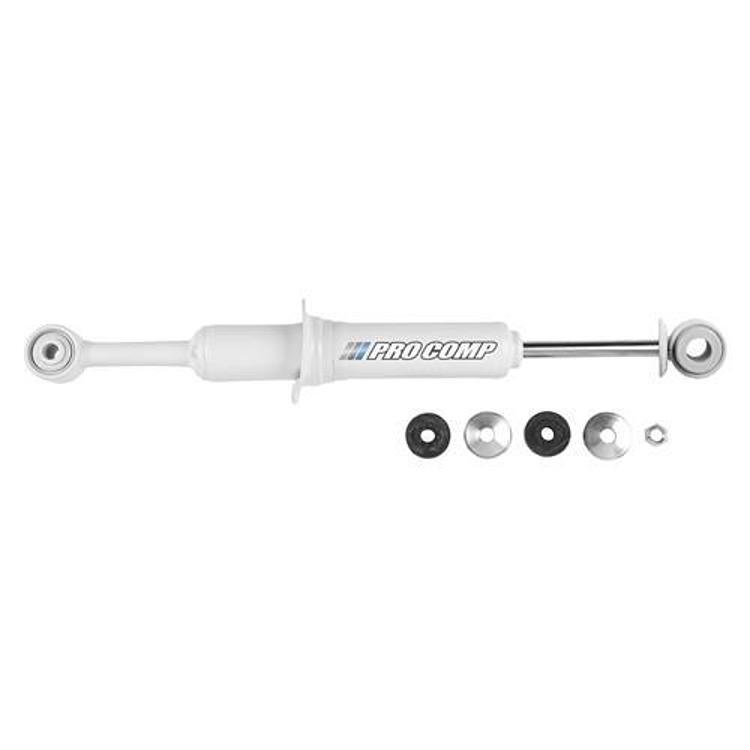

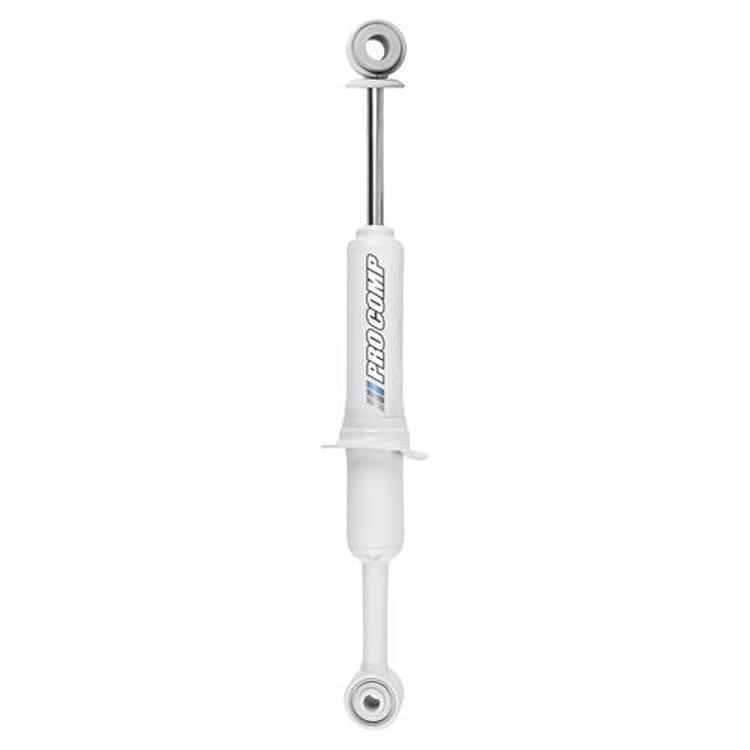

The ES6000 twin-tube shock, part number 622504, is sold under the ES6000 series with factory upper and lower mounts. Its extended, collapsed and travel lengths are vehicle specific, so check the length and mounting style against the shock you are replacing before buying.

The twin-tube design is intended for comfort on the road and control off road. The 10-stage velocity-sensitive valving adjusts to changing road conditions, and the 5/8 inch chrome-hardened piston rod works with a teflon rebound stop. The shock is gas charged and non-adjustable.

Key features

  • 10-stage velocity-sensitive valving that adjusts to road conditions.
  • A 5/8 inch chrome-hardened piston rod.
  • A teflon rebound stop for a comfortable highway ride.
  • Double-welded shock mounts.
  • Gas-charged design.

Measuring before installing

Shock length and mount style decide whether a shock fits a given truck, and the lengths for this part are vehicle specific. Measure the original shock from the center of one mount to the center of the other, then compare the collapsed and extended figures before buying. A new shock that is too long can bind at full compression, and one that is too short can run out of travel.

Gas-charged shocks keep damping steady over repeated cycles, which helps on long highway runs and rough trails alike. Check the rebound stop and piston rod for damage at each service, and look for oil on the body. Worn bushings and loose mounts can make a new shock feel harsh, so inspect those during installation.

  • Measure center to center before buying
  • Check clearance at full compression
  • Inspect the piston rod for pitting or bends

Specifications

Brand Pro Comp Suspension
Part number 622504
UPC 614901234831
Shock series ES6000
Extended length Vehicle specific
Collapsed length Vehicle specific
Travel length Vehicle specific
Upper mount Factory
Lower mount Factory
Adjustable No
Remote reservoir No
Body type Gas charged
Finish White
Dust boot included No
Sold as Each

Vehicle fitment

Confirm fit for your vehicle’s year, model and trim before ordering, and check the mounts against your original shock.

A universal-fit description does not confirm that a shock will bolt into a given truck, because the lengths and mounts are vehicle specific. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Measure the original shock between its mounts and compare it with the vehicle-specific lengths before ordering, then check clearance at full compression.

What’s included

One ES6000 shock absorber, sold as each.

Not included: a dust boot. None is included with the shock.

SKU: EXP622504 Category:

Specification

Shipping weight 7.20 lbs
Package dimensions 25.80 × 5.00 × 5.00 in
brands

Questions & Answers

Is the 622504 a universal-fit shock?

No. Its extended, collapsed and travel lengths are vehicle specific, so measure your original shock between the mounts and confirm the fit before buying.

Does the 622504 have a rebound stop?

Yes. It has a teflon rebound stop, which helps keep the highway ride comfortable and controls the return stroke of the shock.

Is the 622504 adjustable?

No. It is non-adjustable, so there is no external control for changing the damping. The 10-stage valving sets how the shock responds to movement.

What does a rebound stop do?

A rebound stop limits how far the shock can extend and cushions the end of its return stroke. It helps prevent harsh bottoming of the suspension on the way down.

How can I tell if a shock is worn?

Look for oil on the body, a bouncy ride after bumps and uneven tire wear. Check the mounts and bushings too, since worn rubber can feel like a failing shock.
