Daystar 5 Inch Premium Lift Kit – PAPLS408

Daystar

Shop Nissan Frontier Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Lists the 2005–2016 Nissan Frontier
  • 5-inch lift for 2WD and 4WD gasoline models
  • Allows up to 33-inch diameter tires with factory wheels
  • Billet aluminum and urethane coil spring spacers
  • Front and rear bumper relocation brackets

Description

Overview

The PAPLS408 is a 5-inch premium lift system for 2005–2016 Nissan Frontier models with gasoline engines in 2WD and 4WD form. It combines a body lift with a leveling system, and it allows the use of up to a 33-inch diameter tire on the factory wheels.

The kit uses two billet aluminum spacers that sit on top of the strut mount plate and two urethane compression spacers that sit on the coil springs. Fiberglass reinforced nylon body blocks and a CNC machined steering extension complete the lift, and urethane Gap Guards cover the gaps between the body and frame. The kit is made in the U.S.A.

The bumper relocation brackets are 3/16-inch thick, laser cut and powder coated, and they are fitted at both the front and the rear.

Key features

  • 5-inch lift without modifying existing suspension components
  • Two billet aluminum coil spring spacers
  • Two front urethane coil spring spacers
  • Fiberglass reinforced nylon body blocks
  • 3/16-inch bumper relocation brackets, front and rear
  • Urethane Gap Guard wheel well extensions

Spacers and bracket maintenance

Billet aluminum and urethane spacers do different jobs in a combined lift, so both should be inspected separately. Billet spacers are rigid and keep the strut mount position consistent, while urethane spacers compress slightly and can flatten over time. Look for uneven wear, cracks and any shifting of the spacers that would change the alignment of the coil springs.

Body blocks and bumper relocation brackets carry the load of the lift, so their fasteners need periodic checks. Lift height changes on a Frontier also affect the front and rear drive angles, which can increase vibration if a component is out of position. After installation, drive at moderate speed and listen for rattles near the front brackets, then retighten as needed.

  • Inspect billet spacers for cracks or loose hardware
  • Check urethane spacers for flattening or shifting
  • Watch for vibration that suggests a shifted bracket

Specifications

Brand Daystar
Part number PAPLS408
UPC 618089008987
Lift height 5 inches
Maximum tire diameter 33 inches
Drivetrain 2WD and 4WD with gasoline engine
Spacers Two billet aluminum, two urethane
Body blocks Fiberglass reinforced nylon
Bumper brackets 3/16-inch thick, laser cut, powder coated
Installation time 10 to 12 hours
Made in United States

Vehicle fitment

It fits the 2005–2016 Nissan Frontier.

The list covers the Frontier only, with no other Nissan models. Model years before 2005 and after 2016 are not on the list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The job takes 10 to 12 hours. The kit includes a CNC machined and zinc plated steering extension and extension brackets, so those parts go in along with the body blocks and bumper brackets.

What’s included

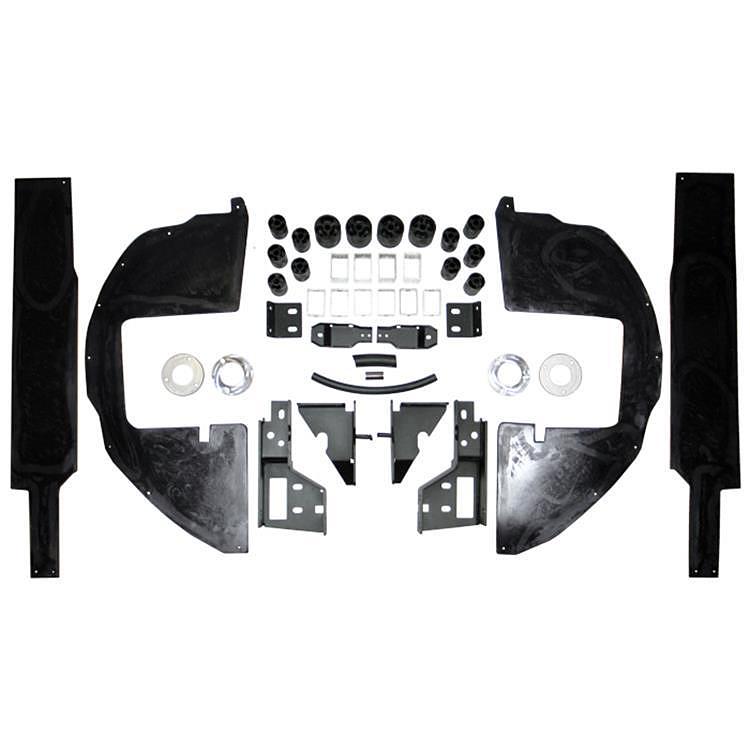

Two billet aluminum coil spring spacers, two urethane coil compression spacers, fiberglass reinforced nylon body blocks, front and rear bumper relocation brackets, a steering extension, extension brackets, urethane Gap Guards and high strength hardware.

SKU: DAYPAPLS408 Category:

Specification

Shipping weight 75.00 lbs
Package dimensions 42.00 × 25.00 × 11.00 in
brands

Fitment

VehicleYearsTrims
Nissan Frontier2005–2016Desert Runner, LE, Nismo Off-Road, PRO-4X, S, SE, SL, SV, XE

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the PAPLS408 fit a 2WD Nissan Frontier?

Yes. It fits 2WD and 4WD Frontier models with a gasoline engine, and the 2005–2016 Frontier is the covered model range.

How much lift does the PAPLS408 give?

It provides a 5-inch lift without modifying existing suspension components. It allows the use of up to a 33-inch diameter tire, so the lift suits a larger tire upgrade with the factory wheels.

How long does installation take?

Daystar says installation takes 10 to 12 hours. The kit comes with everything needed for installation, including high strength hardware and extension brackets.

How do the billet and urethane spacers differ?

Billet aluminum spacers sit on the strut mount plate, while urethane compression spacers sit on the coil springs. Each material is used in a different position in the kit, so keep the spacers in their intended locations during installation.

When should the bumper brackets be inspected?

Inspect the bumper brackets after the first few drives and again after any rough off-road use. Look for loose fasteners, cracked welds or coating damage, and retighten hardware as needed so the front and rear brackets stay secure.
