Dana Spicer Dana 30 Crush Sleeve – 50576

Dana Spicer

$12.20In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 2:30 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana Spicer Dana 30 crush sleeve, part number 50576
  • Preloads pinion bearings
  • Made for 96-07 Jeep Dana 30 front axles
  • No specific vehicle model named

Description

Overview

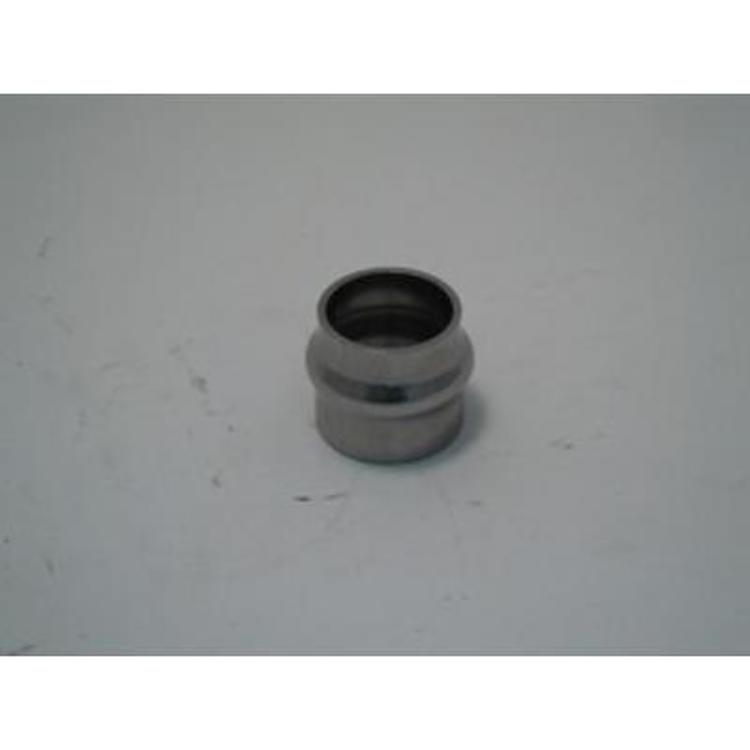

The Dana Spicer 50576 is a Dana 30 crush sleeve, a spacer that preloads the pinion bearings. It is made for Dana 30 front axles in 96-07 Jeep models.

Preload and pinion nut torque

Pinion preload is the tension set on the pinion bearings, and the crush sleeve is the part that sets it. As the pinion nut is tightened, the sleeve collapses until the bearings have the right drag. The process is gradual, so tightening in steps and checking drag between steps gives better control than one full tightening.

Preload that is too loose lets the pinion move and wear the gears, while preload that is too tight shortens bearing life. Have a technician measure drag with a suitable gauge rather than relying on feel. Once the sleeve has been compressed, replace it rather than trying to reuse it, and keep the splines and threads clean during assembly.

  • Clean the pinion splines before fitting the yoke
  • Use a torque wrench on the pinion nut
  • Replace the crush sleeve whenever the nut is removed

Specifications

Brand Dana Spicer
Part number 50576
UPC 23913145453
Axle Dana 30 front
Function Preloads pinion bearings
Years stated 96-07

Vehicle fitment

It is made for 96-07 Jeep Dana 30 front axles. Treat the TJ code as a hint and confirm the axle matches your vehicle before use.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Crush sleeves are compressed to set pinion preload and are typically replaced rather than reused. Overtightening the pinion nut against the sleeve changes the preload, so have a technician set it to the axle’s specification.

What’s included

Only the crush sleeve is described, with no other contents named.

SKU: D/S50576 Category:

Specification

Shipping weight 0.20 lbs
Package dimensions 3.10 × 3.10 × 2.50 in
brands

Questions & Answers

What does the Dana 30 crush sleeve 50576 do?

It preloads the pinion bearings. The sleeve is a spacer that is compressed when the pinion nut is tightened to set the bearing preload on the Dana 30 axle.

Will this sleeve fit a 96-07 Jeep?

It is made for 96-07 Jeep Dana 30 front axles. Confirm the axle matches your vehicle's year, model and trim before using it.

Does this sleeve come with a pinion nut or bearings?

No other contents are named. The sleeve is the only item described, so assume a pinion nut and bearings are separate items unless the package says otherwise.

What happens if the pinion nut is overtightened?

Overtightening compresses the sleeve past the intended preload, which can load the bearings too heavily and shorten their life. If the nut is tightened too far, the sleeve must be replaced and preload set again from the beginning.
