Omix-ADA Dana 30 Collapsible Pinion Spacer – 16512.54

Omix-Ada

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

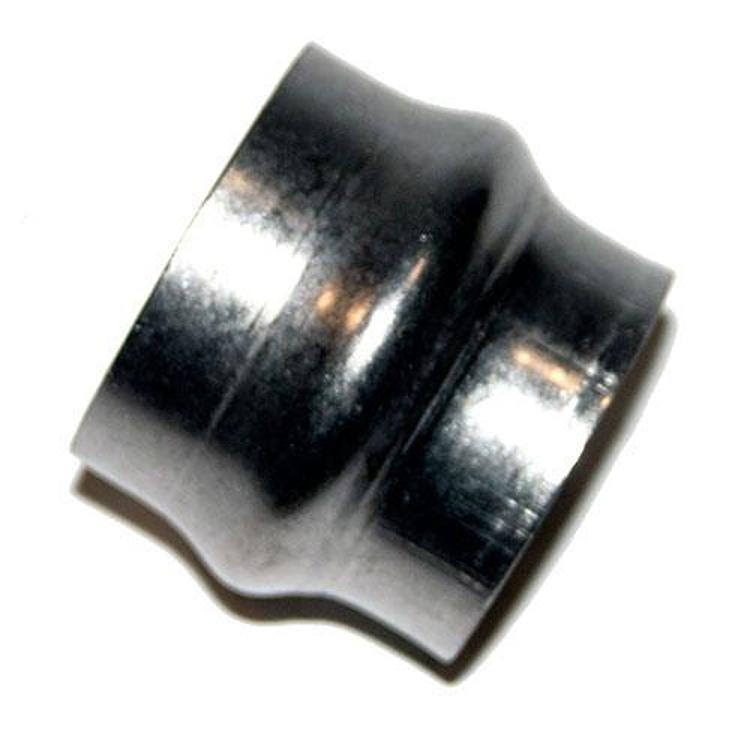

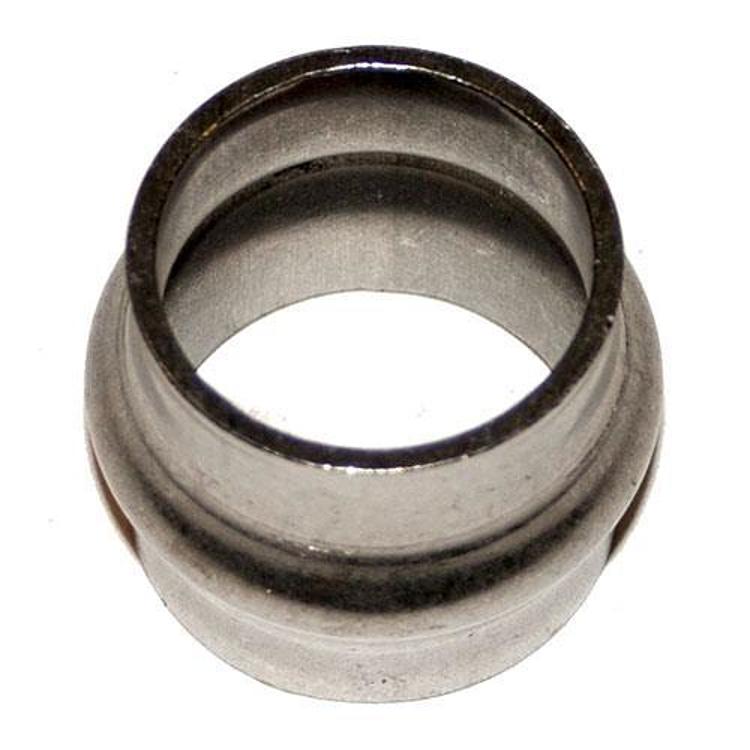

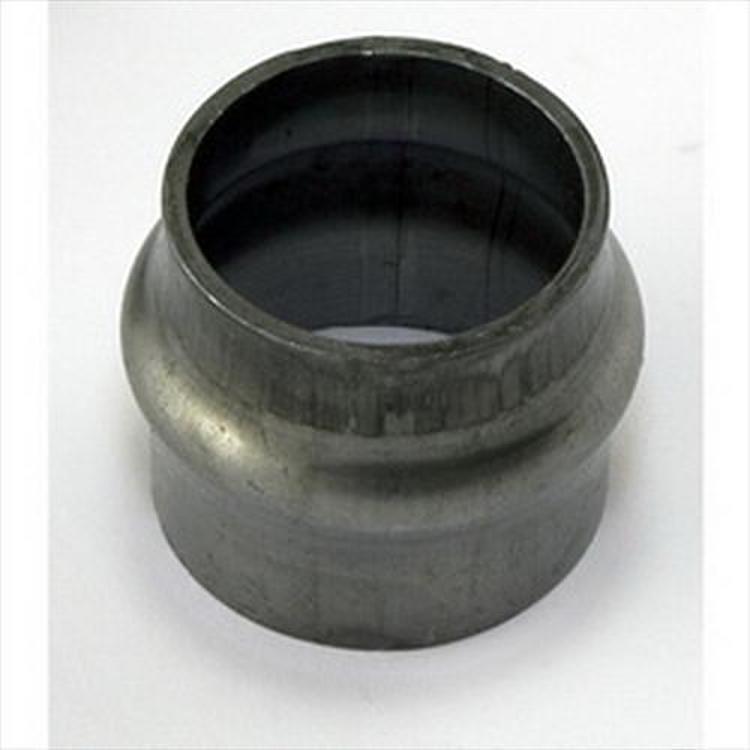

  • Collapsible Dana 30 pinion spacer, part 16512.54
  • Front axle position, direct OE replacement
  • Axle types listed: Dana 30 reverse and Dana 30 TJ
  • Fits XJ, WJ, ZJ and TJ models

Description

Overview

The Omix-ADA 16512.54 is a collapsible pinion spacer for the Dana 30 front axle, sold as a direct OE replacement. It fits Dana 30 reverse and Dana 30 TJ axles in the front position. The spacer sets pinion bearing preload during assembly, so it is a required part of a front axle gear service.

Omix-ADA says its parts are built to the original specifications. The collapsible design is the type that is crushed to a set preload during assembly rather than replaced by a fixed shim, so the preload is set by the assembly process.

Key features

  • Collapsible design for Dana 30 pinion preload
  • Dana 30 reverse and Dana 30 TJ axle types listed
  • Front axle position
  • Direct OE replacement built to original specifications

Setting pinion preload

A pinion spacer controls how far the pinion bearings are preloaded inside the carrier. Too little preload lets the pinion shift under load and wear the bearings early, while too much preload causes heat and bearing failure. Because a collapsible spacer only works once it is crushed, the usual approach is to tighten the pinion nut in small steps, turn the assembly to seat the bearings, and measure rolling resistance until it reaches the target for your setup.

Collapsible spacers are normally replaced whenever the pinion is removed, since a crushed sleeve cannot be relied on to hold the same setting a second time. Pinion seals and carrier bearings are often checked during the same job, which saves another teardown later.

  • Treat the spacer as single use
  • Check the pinion seal before reassembly
  • Record the preload reading for future service

Specifications

Brand Omix-Ada
Part number 16512.54
UPC 804314032463
Part type Collapsible pinion spacer
Axle types Dana 30 reverse, Dana 30 TJ
Position Front
Fitment Direct fit

Vehicle fitment

It fits the 1992-2001 Jeep Cherokee (XJ), the 1999-2004 Jeep Grand Cherokee (WJ), the 1993-1998 Jeep Grand Cherokee (ZJ) and the 1997-2001 Jeep Wrangler (TJ). The Cherokee and Wrangler entries cover several versions, and the Grand Cherokee entries include the Laredo, Limited, Overland and Special Edition trims.

Fit is limited to those year ranges, so the 1991 Cherokee and 2002-2006 Wrangler TJ are not covered. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

A collapsible spacer is set by crushing it to the correct preload, so the pinion has to be torqued and the preload checked as the spacer is installed. A spacer that is not crushed to the set preload will change the bearing setup.

What’s included

One collapsible Dana 30 pinion spacer.

SKU: OAI16512.54 Category:

Specification

Shipping weight 2.00 lbs
Package dimensions 15.00 × 9.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ)1992–2001Base, Briarwood, Classic, Country, Laredo, Limited, SE, Sport
Jeep Grand Cherokee (WJ)1999–2004Laredo, Limited, Overland, Special Edition, Sport
Jeep Grand Cherokee (ZJ)1993–19985.9 Limited, Base, Laredo, Limited, Orvis, SE, TSi
Jeep Wrangler (TJ)1997–2001SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Omix-ADA 16512.54 spacer fit a 2000 Jeep Wrangler TJ?

Yes. The spacer fits the 1997-2001 Wrangler (TJ), so a 2000 TJ is within the covered years. It is for the Dana 30 front axle.

Is this spacer collapsible or a fixed shim?

It is a collapsible spacer. It is crushed to a set preload during assembly rather than fitted as a fixed shim.

Does the 16512.54 fit a Dana 30 reverse axle?

Yes. Omix-ADA lists both the Dana 30 reverse and the Dana 30 TJ axle types for this spacer, in the front position. Check which of the two your axle is before ordering.

Can a collapsible spacer be adjusted after it is crushed?

No. Once the spacer is crushed it cannot be backed off, so a new spacer is needed if preload is wrong. Recheck the preload before final assembly, and install a new spacer if the reading needs to change.
