Overview

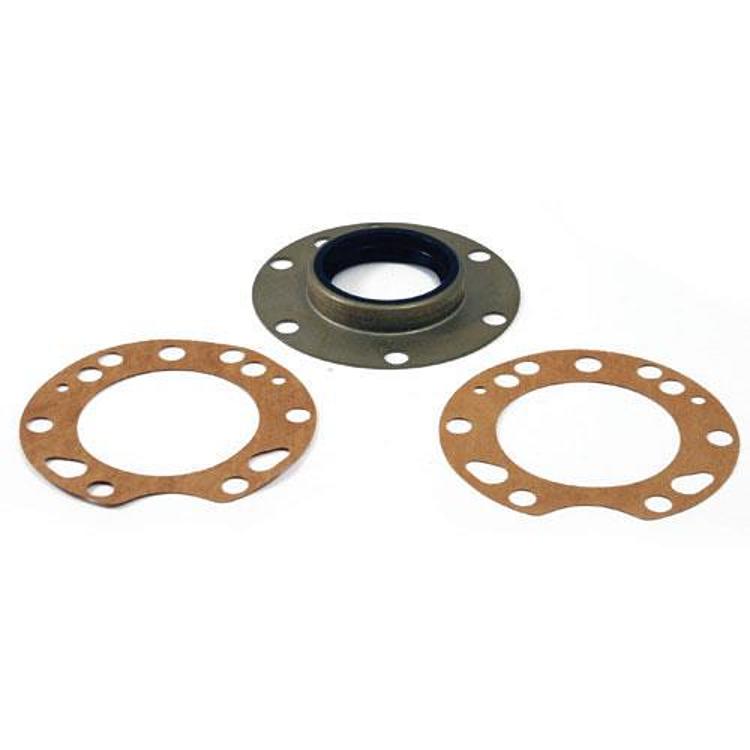

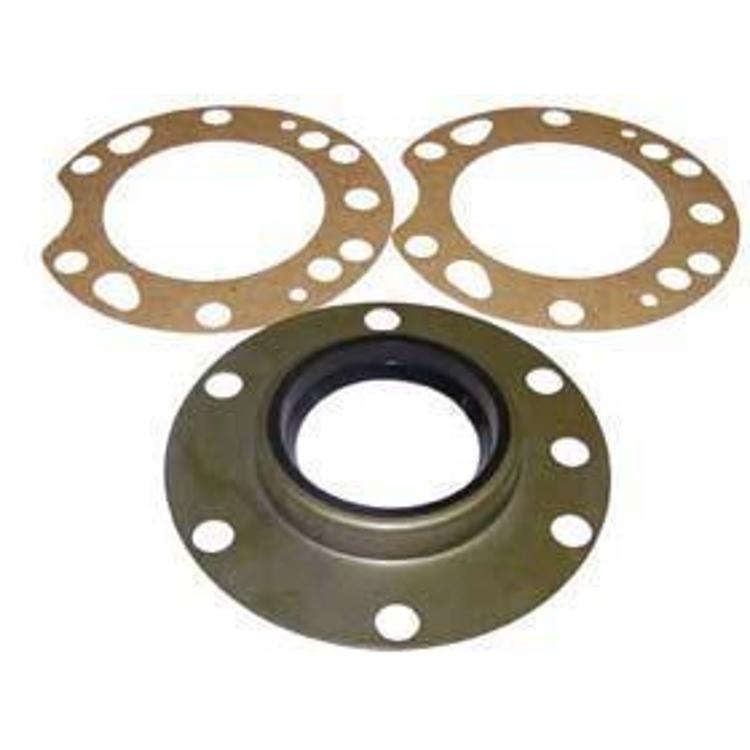

The Crown Automotive J0914802 is an outer axle seal for the rear Dana 44 axle, rear left position. The quantity is per axle, and the spline details given are 10 and 19 spline.
Outer axle seals keep lubricant inside the axle tube at the wheel end, so matching the side and axle type matters. No vehicle model or year is named, so the Dana 44 rear axle and the spline details are the main fit points.
Key features
- Outer axle seal for a Dana 44 rear axle
- Rear left position
- Quantity given as per axle
- 10 and 19 spline details
- Direct Fit label
Signs of a worn seal
An outer axle seal sits at the wheel end and keeps lubricant inside the axle tube while the axle shaft turns. When it wears, the most common sign is lubricant seeping onto the inside of the wheel or brake components. Checking the wheel end for fresh oil residue after a drive is a practical habit, since a small leak can grow quickly once it starts.
Seals are usually replaced together with the bearing and axle shaft components they protect, because contamination or heat damage from one often affects the others. Replacing the seal alone is common, but inspect the bearing for play or roughness while the axle is out. Keep the axle tube filled to the correct level after service, and check the level again after the first few drives.
- Oil on the inside of the wheel or brake parts
- Lubricant level dropping between services
- Rough or noisy bearing when the wheel is turned
- Damaged seal lip or cracked seal body
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J0914802 |
| UPC | 848399054521 |
| Product type | Outer axle seal |
| Axle | Dana 44 rear |
| Position | Rear left |
| Quantity | Per axle |
| Spline | 10 and 19 spline |
| Fitment label | Direct Fit |
Vehicle fitment
The Dana 44 rear axle is named, but no vehicle model, year or trim is given, so vehicles are not confirmed.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Replacing an outer seal means working at the axle end, so follow the axle service procedure for your vehicle. None is described here.
What’s included
The seal is the item described here. The axle shaft and bearing are not included.
