Overview

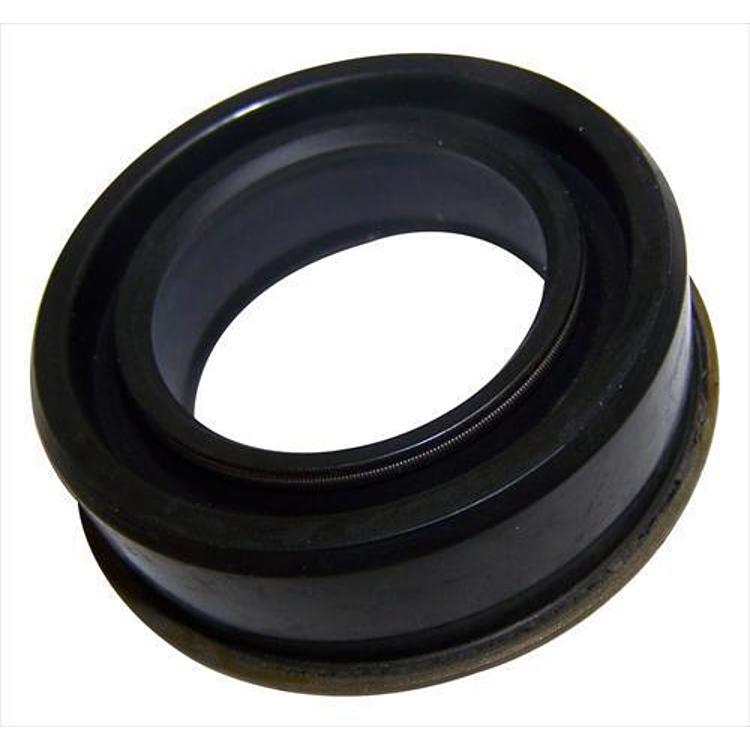

The Crown Automotive 83504708 is a Dana 30 axle tube oil seal, also an inner axle shaft seal. It fits the 1987-1990 Jeep Cherokee (XJ), the 1987-1990 Jeep Comanche and the 1987-1990 Jeep Wrangler (YJ).
Crown Automotive has made Jeep replacement parts for over 50 years. This seal is one of them, a small rubber-type wear part whose job is to keep gear oil from escaping around the axle shaft.
Note that the position is rear outer, even though Dana 30 axles are usually found at the front of these Jeeps. Compare the part with the seal you are replacing to confirm which axle end it serves.
Dana 30 axles were fitted to many Jeeps of this era, and the oil seal at the axle tube is a common leak point. The XJ, Comanche and YJ share the same listing for 1987 to 1990, which makes the model year the key check.
Owners of these Jeeps should note that the oil seal listed here is a different part from the axle shaft seal at the wheel end.
Key features
- Dana 30 axle tube oil seal
- Inner axle shaft seal
- Rear outer position
- Direct fit
- Covers three Jeep models from 1987 to 1990
Checking the axle tube seal
The axle tube seal sits where the axle shaft enters the housing tube and keeps gear oil inside the axle. Because the seal rides on the shaft, it is affected by shaft wear, shaft grooves and any heat built up at the tube. A seal that has hardened or taken a nick will weep oil along the shaft, often first noticed on the brake shoes or inside the wheel.
Before pulling the shaft, check the axle oil level and look for any signs of seepage around the tube and cover. When reinstalling, lubricate the seal lip lightly, drive it in squarely and avoid damaging the lip on the shaft splines. Refill the axle with the correct lubricant to the level marked. Recheck for leaks after the first few drives, since small weeps can take a short time to show.
- Check the shaft for grooves before fitting the seal
- Lubricate the seal lip lightly during installation
- Check the lubricant level after reassembly
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 83504708 |
| UPC | 848399026085 |
| Product type | Axle tube oil seal |
| Axle | Dana 30 |
| Description | Inner axle shaft seal |
| Position | Rear outer |
| Fit type | Direct fit |
Vehicle fitment
The manufacturer fitment list for the Crown Automotive 83504708 includes: 1987–1990 Jeep Cherokee (XJ) (Base, Chief, Laredo, Limited, Pioneer, Sport); 1987–1990 Jeep Comanche (Base, Chief, Eliminator, Laredo, Pioneer); 1987–1990 Jeep Wrangler (YJ) (Base, Islander, Laredo, S, Sahara, Sport).
Crown lists only the 1987-1990 Cherokee (XJ), Comanche and Wrangler (YJ). Later XJ years, the TJ Wrangler and earlier Jeeps are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The seal is pressed into the axle tube, so the axle shaft usually comes out first. Fit the new seal squarely, and check that the position matches the old one before reassembly.
What’s included
- One axle tube oil seal, part number 83504708
