Overview

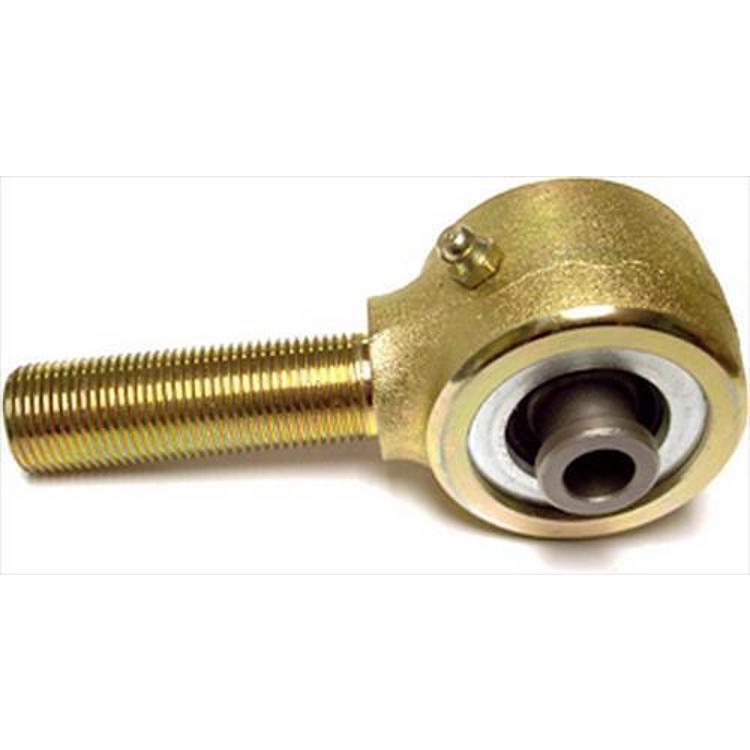

The CE-9112SPL is a 2-inch forged Johnny Joint with a 3/4-inch left-hand threaded stud, made for Currie adjustable upper control arms and for builders making their own arms. It is universal fit, so it is not built for one specific vehicle. The forged male rod-end body accepts the joint internals used in the CE-9112 2-inch Johnny Joints.
The joint is a finished, serviceable unit with urethane bushings and a forged steel shell. Grease reaches the joint through the outer shell, and the body has gold zinc plating. It suits universal applications where an arm needs a flexing end.
Key features
- Forged steel body in a male rod-end style
- Urethane bushings for a controlled, flexing joint
- Externally greased through the outer shell
- Serviceable finished joint with a left-hand thread stud
- Gold zinc plated finish
- Accepts 7/16 inch thru bolts, which are listed separately
Left-hand threads in practice
Left-hand threads tighten opposite to the usual direction, so the stud is turned the other way when it is threaded into an arm or sleeve. This matters most on builds where left and right sides use different parts, since a right-hand stud on the wrong side will not seat. Mark the arm or the joint with the side it belongs to so the part is not swapped during assembly.
Before the arm goes into service, confirm full thread engagement and that the jam nut is tight against the arm. Left-hand joints can back out if the arm moves under load, so support the arm during assembly and recheck the nut after the first drive. Inspect the joint regularly for play, dry bushings or cracks, and regrease it through the outer shell as part of routine upkeep.
Specifications
| Brand | Currie |
|---|---|
| Part number | CE-9112SPL |
| UPC | 70000445211 |
| Joint type | Forged Johnny Joint, finished, serviceable |
| Thread direction | Left hand |
| Threaded stud | 3/4 inch, 2 3/8 inches of 3/4-16 threads |
| Outside diameter | 2 inch |
| Mounting width | 2 inch |
| Thru-bolt hole | 7/16 inch |
| Bushings | Urethane |
| Material | Forged steel |
| Finish | Gold zinc plating |
| Lubrication | Externally greased through the outer shell |
| Fitment | Universal fit |
Vehicle fitment
This joint is universal fit and is not tied to a year, make or model. It suits any Currie adjustable upper control arm and any universal application where a custom arm is built. Measure the arm’s bolt hole and stud thread before assembling the arm.
No vehicle is named for this joint, so match it to the arm rather than the vehicle. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The stud is left-hand threaded, so it must be turned the correct way when it goes into the arm; check thread direction before assembly. Check full thread engagement and the 7/16 inch bolt fit before the arm goes into service. Support the arm securely while threading the joint in, since a loose stud can back out under load.
What’s included
One Currie CE-9112SPL forged Johnny Joint with the 3/4 inch left-hand threaded stud, urethane bushings and gold zinc finish described above.
Not included: 7/16 inch greasable thru bolts are sold separately, and jam nuts are not included.
