Overview

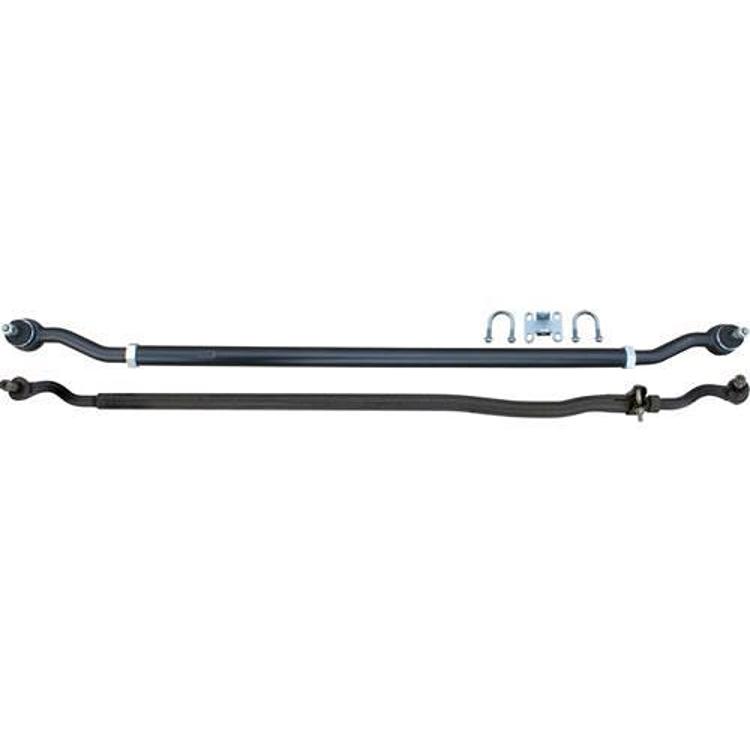

The Currie JK-9703 is a heavy-duty tie rod and drag link steering system for the Jeep Wrangler JK. It replaces the factory steering links with 1-5/8 inch chrome moly tubing and forged steel tie rod ends, and it is built for 2007-2018 Jeep Wrangler JK models with two or four doors.
The tubes and tie rod ends are heavier components that replace the factory steering links. The system bolts into the stock mounting points without modifying the vehicle.
Key features

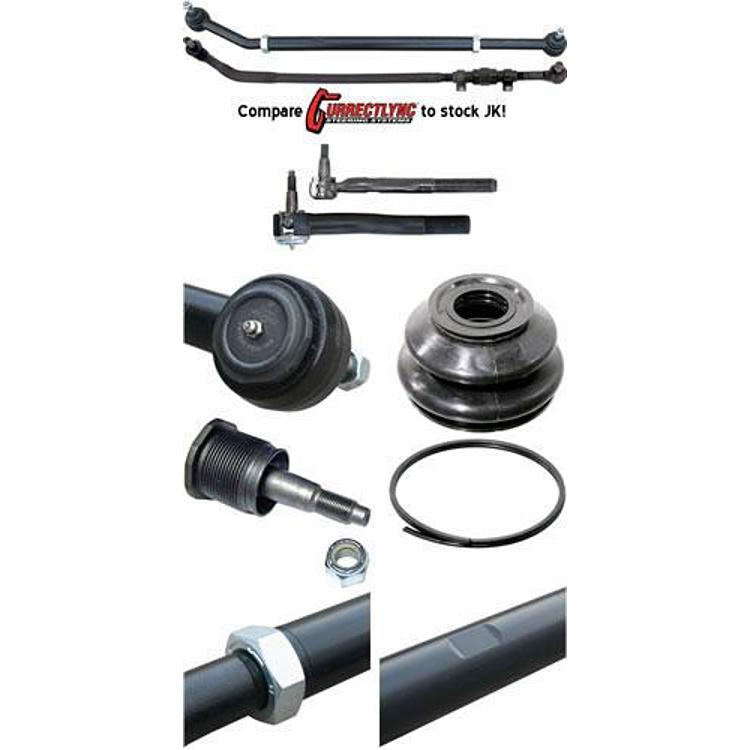

- 1-5/8 inch diameter 4130 chrome moly tubing, heat treated, for the tie rod and drag link
- 1-1/4 inch thread forged steel tie rod ends that can be greased
- Tie rod ends thread into the rod end body, so a single replacement end can be used at all four points
- Wrench flats machined onto the tubes and jam nuts for adjustment
- New steering stabilizer shock bracket and U-bolt kit included
- It is a direct replacement for the stock parts and needs no modifications in the standard layout.
- It is made in the U.S.A.
Steering geometry after a swap
Replacing tie rods and drag links changes the length and angle of the steering linkage, which affects toe and steering feel. An alignment is generally needed after this kind of work, and the wheels should be checked for centered steering before driving on the road.
Greasable tie rod ends should be serviced on the schedule in your vehicle’s maintenance guide. Look for torn boots, play at the ends, and stiff movement when turning. Grease the ends after installation and recheck the jam nuts after the first few drives.
A heavier steering system can change how the front end responds at speed and over rough ground, so it helps to recheck the bolts, nuts and ends after the first rough outing.
Specifications
| Brand | Currie |
|---|---|
| Part number | JK-9703 |
| UPC | 70000613175 |
| Tie rod and drag link tube diameter | 1-5/8 inch |
| Tube material | 4130 chrome moly, heat treated steel |
| Tie rod end thread | 1-1/4 inch, forged steel, greasable |
| Included hardware | Steering stabilizer shock bracket and U-bolt kit |
| Body style | Two and four door models |
Vehicle fitment
It is made for Jeep JK Wrangler vehicles, 2007-2018 model years, in two-door and four-door form. It is not made for the Wrangler TJ, LJ or JL, or other Jeep models. Confirm your vehicle’s year, model and trim before ordering.
It does not cover the Wrangler TJ, LJ or JL generations, which are separate model years and models.
Installation notes
Flipping the tie rod or drag link so the ends face the other way requires retapering the tie rod end holes from the top side of the knuckle. Plan for that work before choosing the flipped layout.
What’s included
Included: heavy-duty tie rod and drag link tubes, forged steel tie rod ends, jam nuts, a new steering stabilizer shock bracket and a U-bolt kit.
