Overview
The Rubicon Express RE7142FPR is a standard coil lift kit for the Jeep Wrangler JK with front and rear Fox Performance Resi shocks. Its listed lift height range is 2.5 to 3.5 inches, and it is sold as a 3.5 inch kit.
Replacement coil springs, bump stops and cam bolts make up the front and rear package. The front adjustable track bar and rear track bar bracket keep the axle located, and extended sway bar end links are included.
The FOX Performance Resi shocks are covered by the FOX warranty, and they are not eligible for the Rubicon Express Advantage Warranty.
Key features

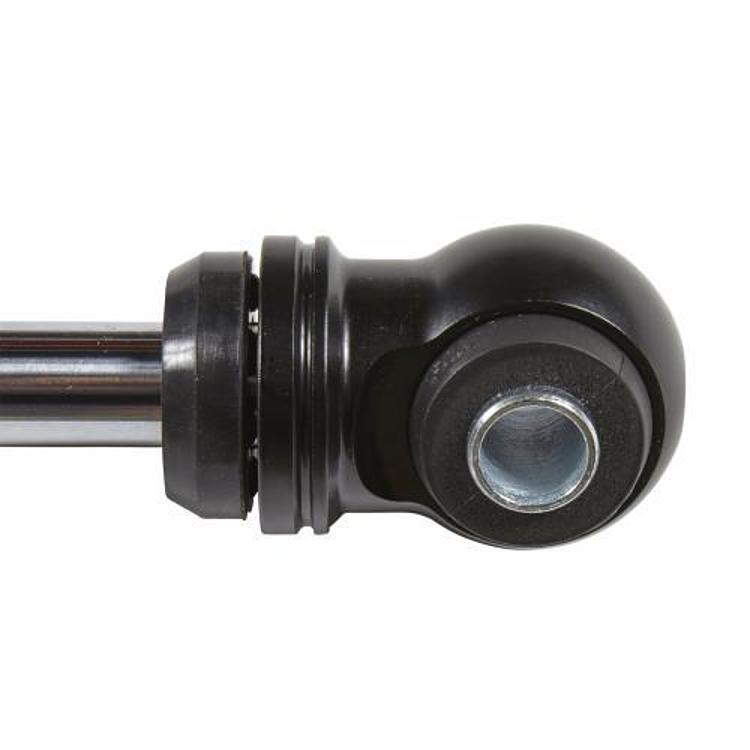

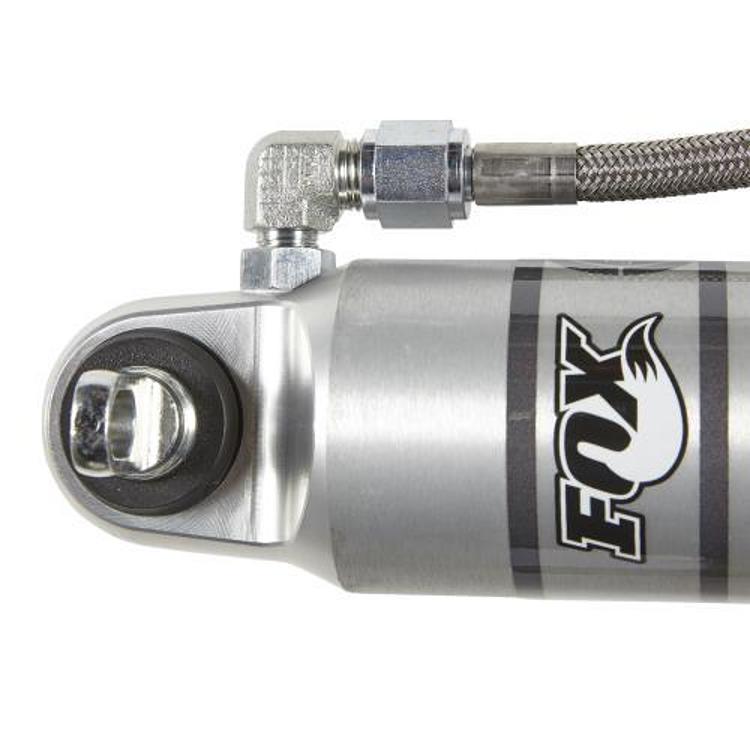

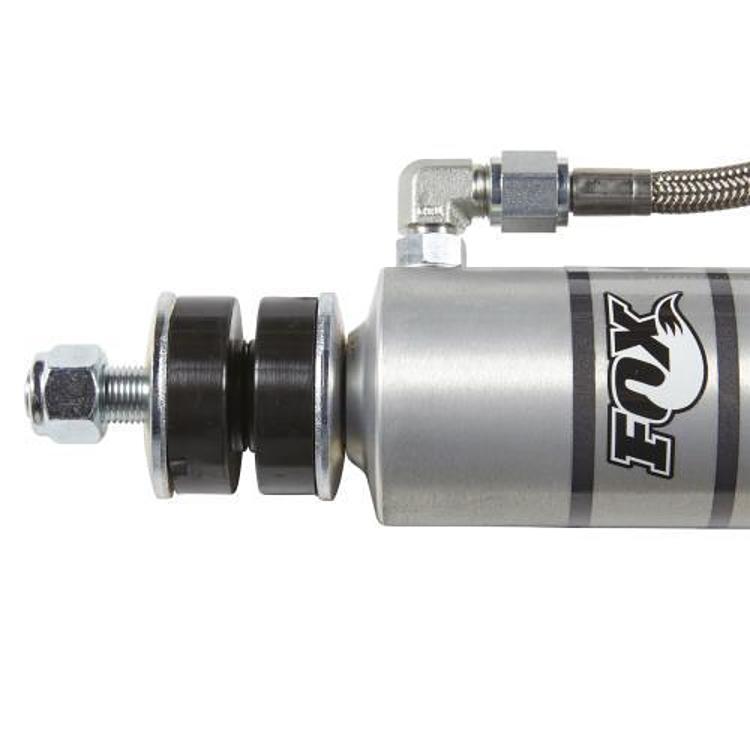

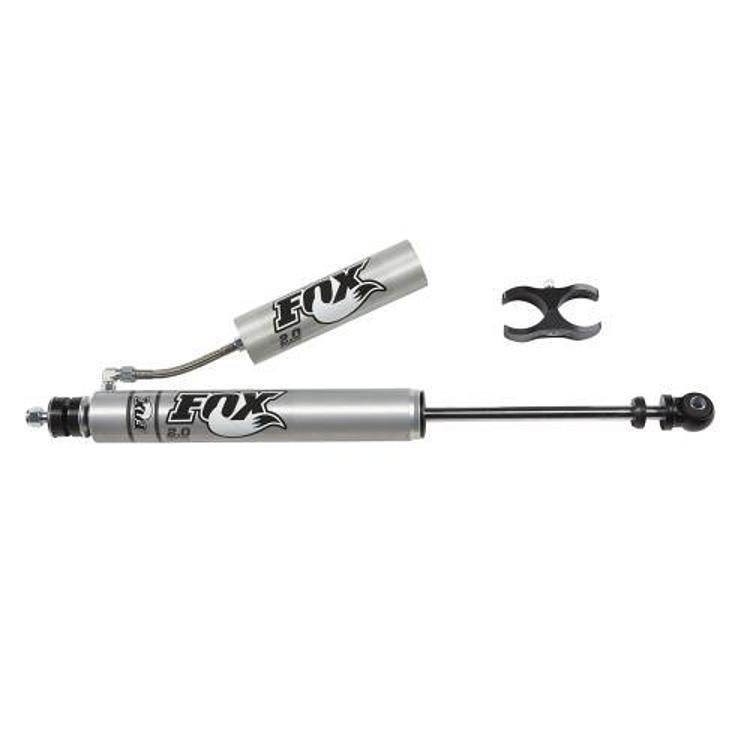

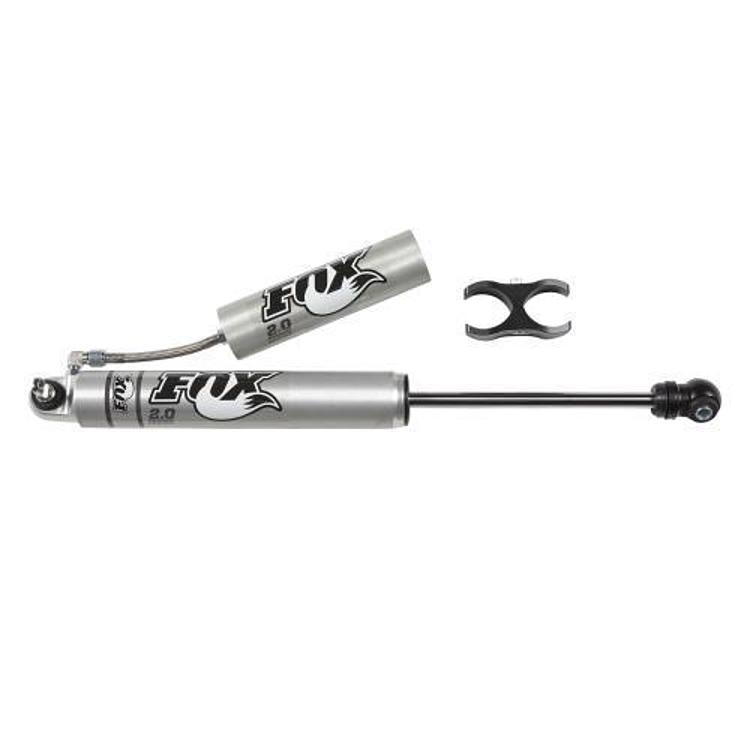

- Front and rear Fox Performance Resi shocks
- Front and rear coil springs
- Bump stops at both ends
- Cam bolts for caster and pinion
- Front adjustable track bar
- Extended sway bar end links
Lift kit install considerations
A coil lift raises the front and rear of the truck, which changes suspension angles and the position of the axles. Cam bolts adjust caster and pinion, so the geometry can be brought back into line after the new springs are in. Bump stops limit travel and reduce the risk of bottoming, which matters more as the lift increases.
Because the shocks and track bar change position with the lift, the whole system should be checked as a unit. A front adjustable track bar keeps the axle centered, and the extended end links maintain sway bar operation at the new height. Check fasteners after the first trail runs, since they settle as the new parts seat.
- Set cam bolts before the alignment
- Check bump stop clearance after travel
- Inspect the driveline angle when the height changes
- Recheck fasteners after the first trail runs
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7142FPR |
| Kit type | Standard coil lift kit |
| Lift height range | 2.5 to 3.5 inches |
| Shocks | Fox Performance Resi, front and rear |
| Springs | Front and rear replacement coil springs |
| Bump stops | Front and rear |
| Caster and pinion | Cam bolts |
| Track bar | Front adjustable, with rear track bar bracket |
| Sway bar | Extended end links |
| Warranty | FOX warranty on the shocks |
Vehicle fitment
It fits the 2007–2018 Jeep Wrangler (JK), the most common JK suspension setup this kit covers.
The JL, the Gladiator, the TJ and the LJ are not covered by this fitment. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Newer trucks from 2012 onward may need an exhaust modification or a front drive shaft, so check this before ordering. Once the cam bolts are set, have the alignment checked.
What’s included
Front and rear replacement coil springs, bump stops, cam bolts, a front adjustable track bar, a rear track bar bracket, extended sway bar end links and front and rear Fox Performance Resi shocks.
