Overview

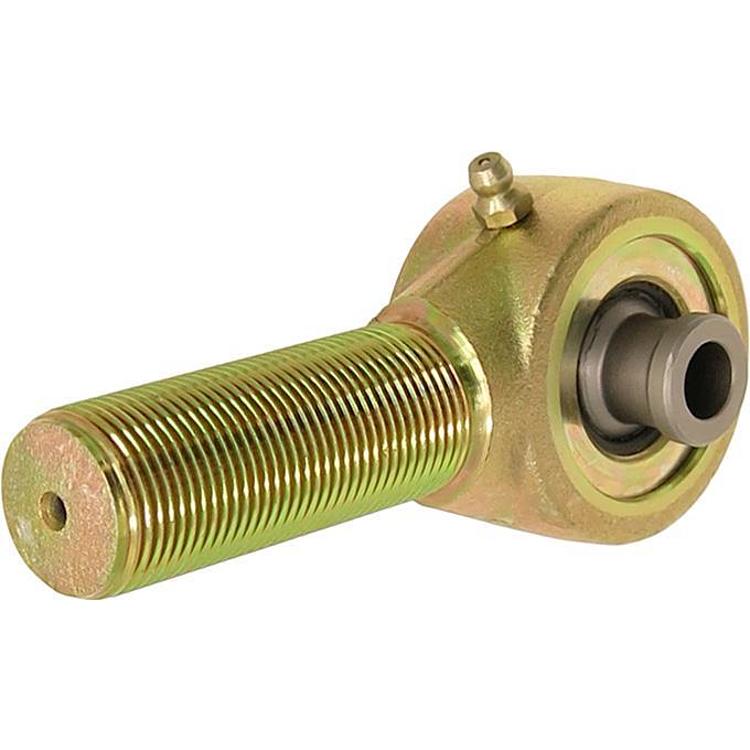

Part number CE-9112NL-11 is a Currie narrow forged Johnny Joint offering 40 degrees of overall articulation travel. The forged narrow style body is the main construction detail, and Currie classes the joint as universal fit.
Key features
- Narrow style forged body
- Overall articulation travel of 40 degrees
- Universal fit.
- Described by Currie as exclusive
Choosing a rod end joint
A Johnny joint is a short rod end that lets a link pivot as the axle travels over uneven ground. Each joint has a fixed range of movement, and binding at the end of that range can bend links, pull threads loose or wear the housing. Matching the travel to the angles your build actually needs keeps the linkage moving freely.
A narrow body suits tight mounting spaces where clearance around a tie rod or drag link is limited. Forged construction is a common choice where the joint will see hard loads. Before ordering, measure the stud size, the bore and the thread direction of the joint you are replacing, and compare them with the new part.
- Inspect for play at the stud with the wheels off the ground
- Replace a joint whose boot is torn and has taken in grit
- Recheck the jam nut torque after the first few trail runs
- Grease the fitting at each service if the joint has one
Specifications
| Brand | Currie |
|---|---|
| Part number | CE-9112NL-11 |
| UPC | 817783007498 |
| Articulation travel | 40 degrees, overall |
| Construction | Forged, narrow style |
Vehicle fitment
Universal fit applies to this joint, with no vehicle model, year or chassis code named. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
